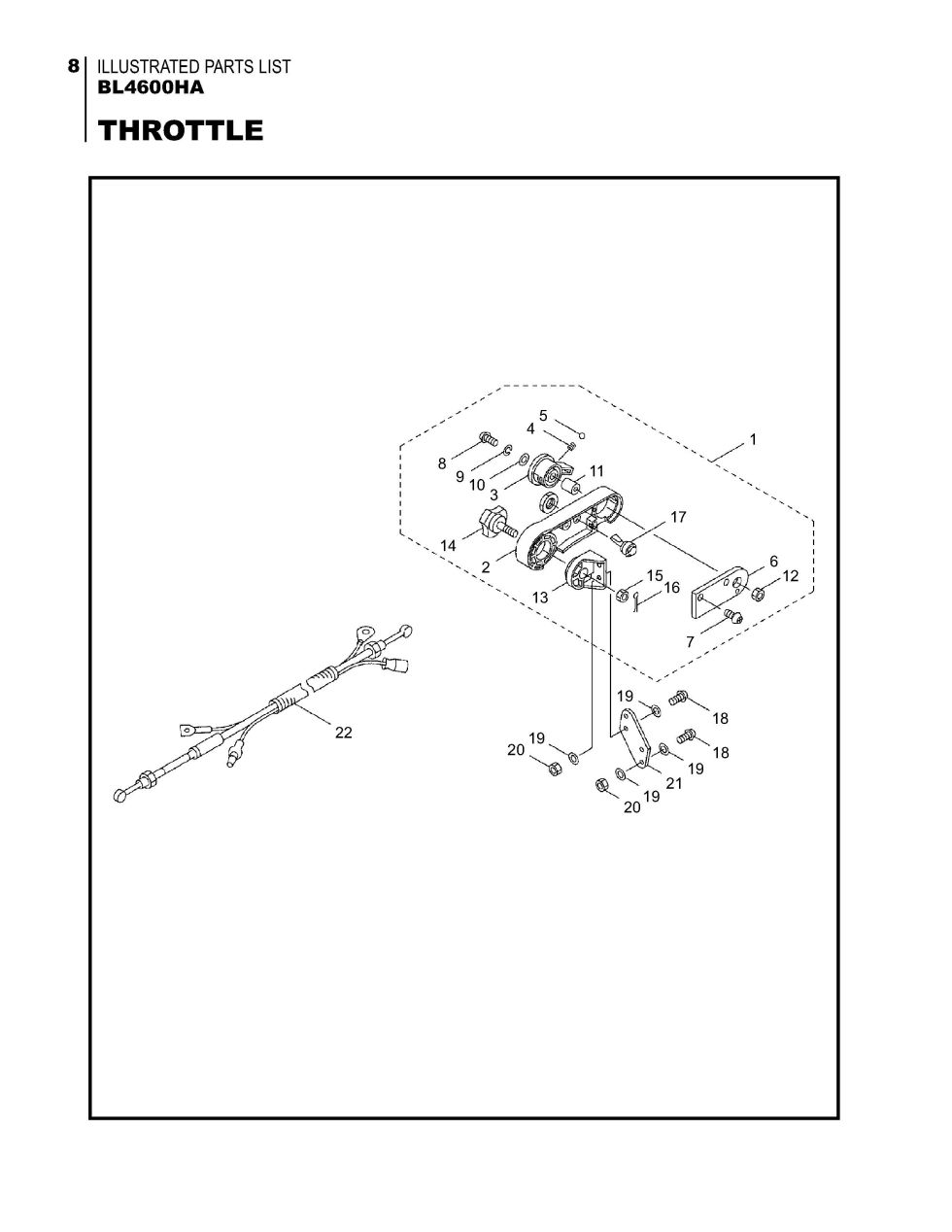

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4600HA. You have selected the Throttle diagram for the Maruyama BL4600HA Blowers. Below you will find an interactive part diagram for the BL4600HA Throttle. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4600HA parts not shown in this diagram you may select from one of the other BL4600HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 117622 | 117622 - THROTTLE LEVER ASSY |
$43.99
|
|
| 2 | 107126 | 107126 - ARM |
$15.99
|
|
| 3 | 107127 | 107127 - LEVER |
$8.99
|
|
| 4 | 107221 | 107221 - SPRING |
$2.99
|
|
| 5 | 106498 | 106498 - VALVE BALL |
$2.99
|
|
| 6 | 107129 | 107129 - STAY |
$7.99
|
|
| 7 | 019001 | 019001 - TAPPING SCREW |
$2.99
|
|
| 8 | 081457 | 081457 - SCREW M6X25 |
$2.99
|
|
| 9 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 10 | 012488 | 012488 - WASHER M6 |
$2.99
|
|
| 11 | 107136 | 107136 - COLLAR |
$5.99
|
|
| 12 | 081031 | 081031 - NUT M6 |
$2.99
|
|
| 13 | 115605 | 115605 - NLA FLANGE |
$5.99
|
|
| 14 | 115612 | 115612 - KNOB BOLT |
$17.99
|
|
| 15 | 107581 | 107581 - NYLON NUT |
$2.99
|
|
| 16 | 065842 | 065842 - COTTER PIN |
$2.99
|
|
| 17 | 117623 | 117623 - SWITCH |
$12.99
|
|
| 18 | 081456 | 081456 - SCREW M6X20 ISO |
$2.99
|
|
| 19 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
| 20 | 112509 | 112509 - NUT |
$2.99
|
|
| 21 | 117603 | 117603 - PLATE |
$5.99
|
|
| 22 | 636826 | 636826 - THROTTLE CABLE ASSY |
$30.99
|
