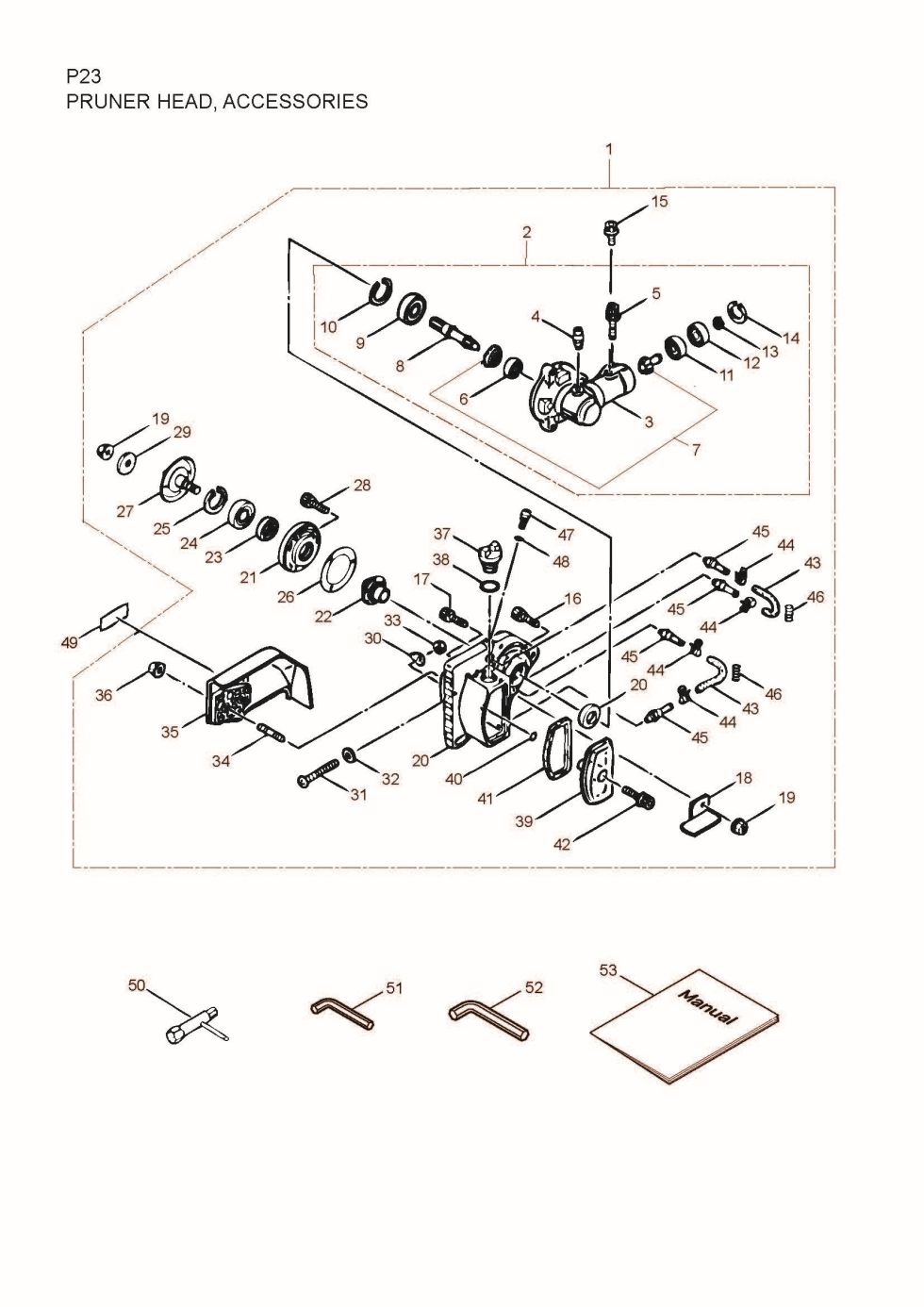

Pruner Head, Accessories

Pruner Head, Accessories

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your P23. You have selected the Pruner Head, Accessories diagram for the Maruyama P23 Pruners. Below you will find an interactive part diagram for the P23 Pruner Head, Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the P23 parts not shown in this diagram you may select from one of the other P23 part assemblies or select a different Pruners altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Pruners parts.

Position number SKU Product title Price
1 219940 219940 - NLA PRUNER HEAD ASSY
$699.99
2 219934 219934 - GEARCASE ASSY
$184.99
3 219935 219935 - GEARCASE
$84.99
4 069553 069553 - GREASE FITTING
$2.99
5 261246 261246 - CAP SCREW M5X25
$2.99
6 210554 210554 - BEARING
$9.99
7 227104 227104 - GEAR SET
$39.99
8 210556 210556 - BLADE AXIS
$38.99
9 217659 217659 - BEARING #6201 2RK
$21.99
10 016732 016732 - C SHAPED SNAP RING 3
$2.99
11 210560 210560 - BEARING
$10.99
12 140268 140268 - BEARING
$12.99
13 140269 140269 - USE: 228477
$2.99
14 140270 140270 - SNAP RING
$2.99
15 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
16 219113 219113 - CAP SCREW(M6X20)
$6.99
17 220632 220632 - CAP SCREW
$2.99
18 220633 220633 - GUARD
$15.99
19 219959 219959 - NUT
$2.99
20 219950 219950 - MOUNT BASE
$145.99
21 219955 219955 - SEAL CASE
$36.99
22 219941 219941 - ROTOR
$42.99
23 215641 215641 - OIL SEAL
$8.99
24 214101 214101 - BEARING
$26.99
26 219938 219938 - PACKING
$2.99
27 219944 219944 - SPLINE BOSS
$103.99
28 219961 219961 - CAP SCREW
$2.99
29 219962 219962 - WASHER
$2.99
30 219939 219939 - TENSIONER
$2.99
31 219957 219957 - SCREW
$2.99
32 012487 012487 - WASHER
$2.99
33 081027 081027 - NUT M5
$2.99
34 219956 219956 - STUD BOLT
$15.99
35 219948 219948 - COVER
$33.99
36 219954 219954 - NYLON NUT
$2.99
37 219949 219949 - CAP
$22.99
38 011338 011338 - O-RING
$2.99
39 219958 219958 - COVER
$22.99
40 014759 014759 - O-RING
$2.99
41 219952 219952 - PACKING
$11.99
42 261250 261250 - BOLT M5X20
$2.99
43 219951 219951 - TUBE
$2.99
45 219936 219936 - NIPPLE
$7.99
47 219986 219986 - ADJUSTER
$8.99
48 025300 025300 - O-RING
$2.99
49 220172 220172 - LABEL
$6.99
50 219968 219968 - COMBI.BOX SPANNER
$13.99
51 219431 219431 - 3MM HEX WRENCH
$2.99
52 219432 219432 - 4MM HEX WRENCH
$2.99
