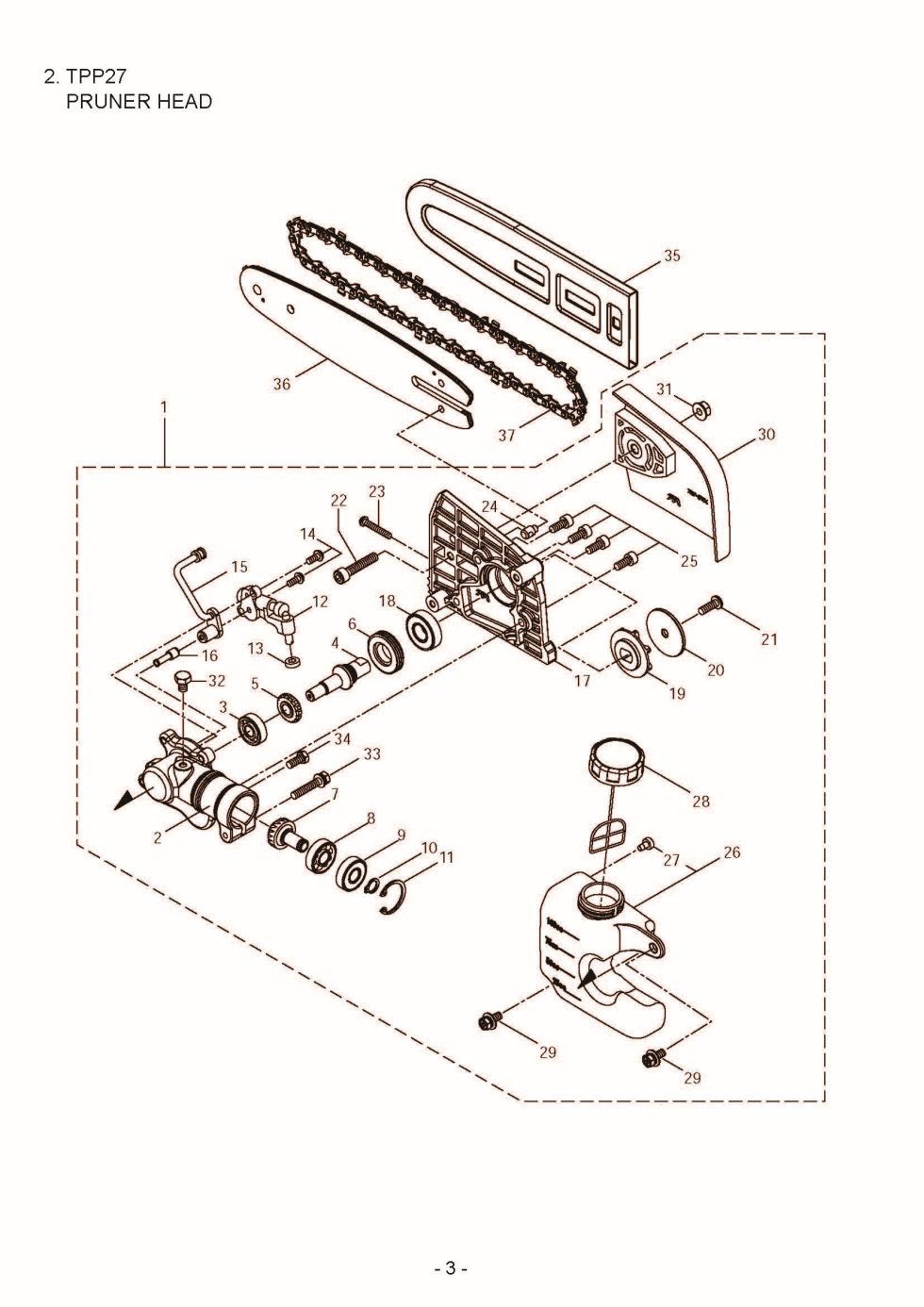

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your TPP27. You have selected the Pruner Head diagram for the Maruyama TPP27 Pruners. Below you will find an interactive part diagram for the TPP27 Pruner Head. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the TPP27 parts not shown in this diagram you may select from one of the other TPP27 part assemblies or select a different Pruner altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Pruner parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 234082 |
234082 - PRUNER HEAD ASS'Y (obsolete) use part #364536 |
$263.99
|
|
| 3 | 227990 | 227990 - USE: 210554 |
$8.99
|
|
| 4 | 231856 | 231856 - GEAR SHAFT |
$40.99
|
|
| 5 | 231857 | 231857 - GEAR |
$31.99
|
|
| 6 | 231858 | 231858 - WORM WHEEL |
$9.99
|
|
| 7 | 231859 | 231859 - PINION SHAFT |
$41.99
|
|
| 8 | 227992 | 227992 - NLA BEARING |
$8.99
|
|
| 9 | 227993 | 227993 - NLA BEARING |
$8.99
|
|
| 10 | 228477 | 228477 - Snap Ring |
$2.99
|
|
| 11 | 140270 | 140270 - SNAP RING |
$2.99
|
|
| 12 | 231860 | 231860 - OIL PUMP |
$39.99
|
|
| 13 | 231861 | 231861 - SEAL |
$5.99
|
|
| 14 | 231862 | 231862 - SCREW |
$2.99
|
|
| 15 | 231863 | 231863 - PIPE, OIL |
$7.99
|
|
| 16 | 231864 | 231864 - STRAINER |
$16.99
|
|
| 17 | 234084 | 234084 - GEARCASE B |
$58.99
|
|
| 18 | 227991 | 227991 - BEARING 6001 2RS |
$16.99
|
|
| 19 | 231866 | 231866 - SPROCKET |
$18.99
|
|
| 20 | 231867 | 231867 - WASHER |
$13.99
|
|
| 21 | 231868 | 231868 - BOLT |
$2.99
|
|
| 22 | 125588 | 125588 - BOLT |
$2.99
|
|
| 23 | 234085 | 234085 - SCREW |
$2.99
|
|
| 24 | 231870 | 231870 - ADJUSTER |
$6.99
|
|
| 25 | 231871 | 231871 - BOLT |
$2.99
|
|
| 26 | 234086 | 234086 - OIL TANK ASS'Y |
$31.99
|
|
| 27 | 231873 | 231873 - BREATHER |
$2.99
|
|
| 28 | 231874 | 231874 - TANK CAP ASS'Y |
$24.99
|
|
| 29 | 092580 | 092580 - BOLT |
$2.99
|
|
| 30 | 231875 | 231875 - CHAIN COVER COMP. |
$31.99
|
|
| 31 | 126756 | 126756 - NUT M6 |
$2.99
|
|
| 32 | 089819 | 089819 - BOLT |
$2.99
|
|
| 33 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 34 | 215993 | 215993 - CAP SCREW, ALIGNMENT |
$2.99
|
|
| 35 | 234087 | 234087 - CHAIN COVER |
$19.99
|
