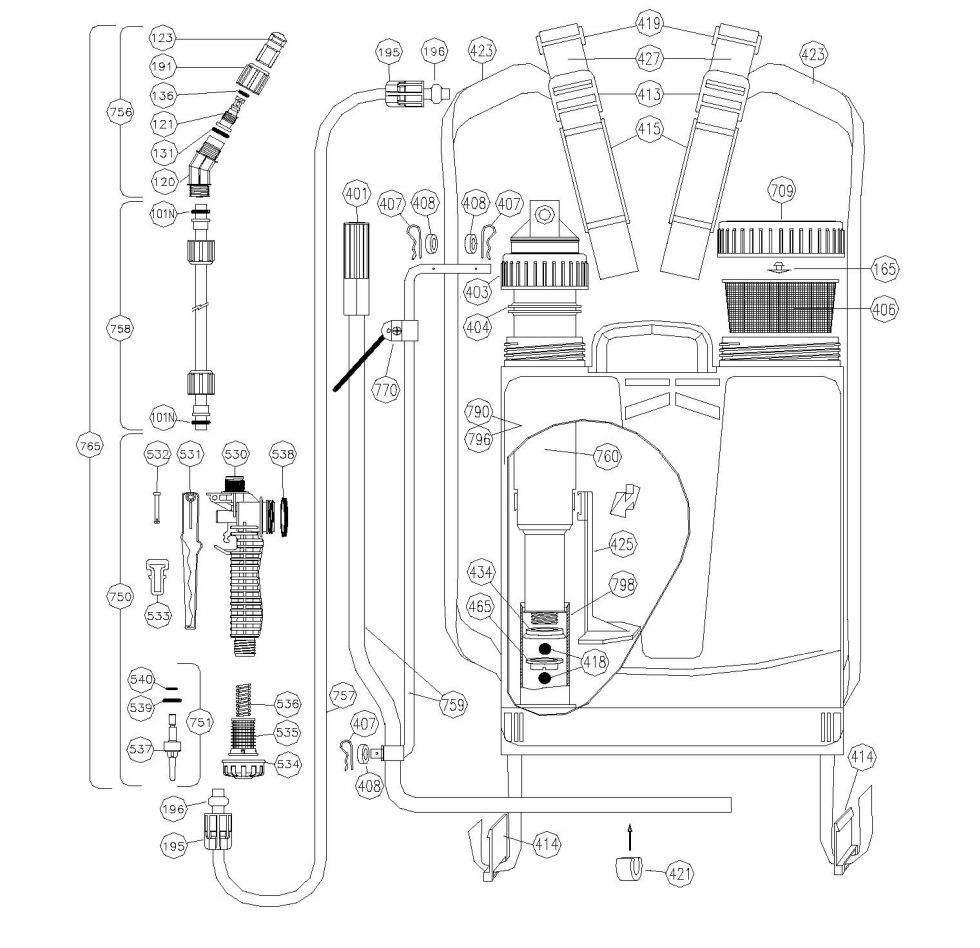

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MX404, MX405. You have selected the Main Body diagram for the Maruyama MX404, MX405 Manual Sprayers. Below you will find an interactive part diagram for the MX404, MX405 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MX404, MX405 parts not shown in this diagram you may select from one of the other MX404, MX405 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
101N 842521 842521 - AN-8 NITRILE GASKET
$2.99
120 842523 842523 - ELBOW
$2.99
121 842524 842524 - MIXER
$2.99
123 842567 842567 - 1.5 MM BRASS NOZZLE
$15.99
131 842527 842527 - 16X2 FLAT GASKET
$2.99
136 842528 842528 - AN-5 NITRILE GASKET
$2.99
165 842570 842570 - TANK COVER VALVE
$2.99
191 842540 842540 - NOZZLE NUT
$2.99
195 842541 842541 - HOSE NUT
$2.99
196 842542 842542 - HOSE BUSHING
$2.99
401 842574 842574 - LEVER GRIP
$2.99
403 842575 842575 - CHAMBER NUT LID
$2.99
404 842576 842576 - SYNTHETIC GASKET (2p
$2.99
406 842578 842578 - TANK FILTER
$2.99
407 842579 842579 - BOLT
$2.99
408 842580 842580 - LEVER WASHER
$2.99
413 842594 842594 - LOSSEN RING
$2.99
414 842584 842584 - STRAP RING
$2.99
415 842585 842585 - SHOULDER
$2.99
418 842586 842586 - 12MM DIAMETER BALL
$7.99
419 842600 842600 - FITTING SUSPENDER
$2.99
421 842587 842587 - BASE BUSHING
$2.99
423 842595 842595 - 0.90 M STRAP
$7.99
425 842590 842590 - AGITATOR
$2.99
427 842596 842596 - 0.60 M STRAP
$5.99
434 842591 842591 - SYNTHETIC RETAINER
$5.99
465 842592 842592 - SEALING VALVE
$2.99
530 842543 842543 - HANDLE BODY
$7.99
531 842544 842544 - BUTTON
$2.99
532 842545 842545 - BUTTON BOLT
$2.99
533 842546 842546 - HANDLE CLIP
$2.99
534 842547 842547 - HANDLE NUT
$2.99
535 842548 842548 - HANDLE FILTER
$2.99
536 842549 842549 - HANDLE SPRING
$2.99
537 842550 842550 - SHUTTER
$2.99
538 842551 842551 - 2-121 NITRILE GASKET
$2.99
539 842552 842552 - 2-109 VITON GASKET
$2.99
540 842553 842553 - 2-107 VITON GASKET
$2.99
709 842607 842607 - TANK COVER WITH VALV
$13.99
750 842558 842558 - COMPLETE HANDLE
$28.99
751 842559 842559 - COMPLETE SHUTTER
$11.99
756 842610 842610 - ELBOW W/CHROMED NOZZ
$27.99
757 842560 842560 - COMPLETE HOSE
$24.99
758 842612 842612 - CHROMED TUBE W/NUTS
$39.99
759 842648 842648 - ARM-LEVER SET 16/20L
$35.99
760 842614 842614 - CHAMBER ASSY 16/20L
$34.99
765 842615 842615 - LANCE ASSEMBLY
$115.99
770 842617 842617 - WAND HOLDER (CLAMP)
$12.99
790 842597 842597 - 20 LITER TANK
$74.99
796 842598 842598 - 16 LITER TANK
$73.99
798 842599 842599 - 12 MM BALL CYLINDER
$18.99
