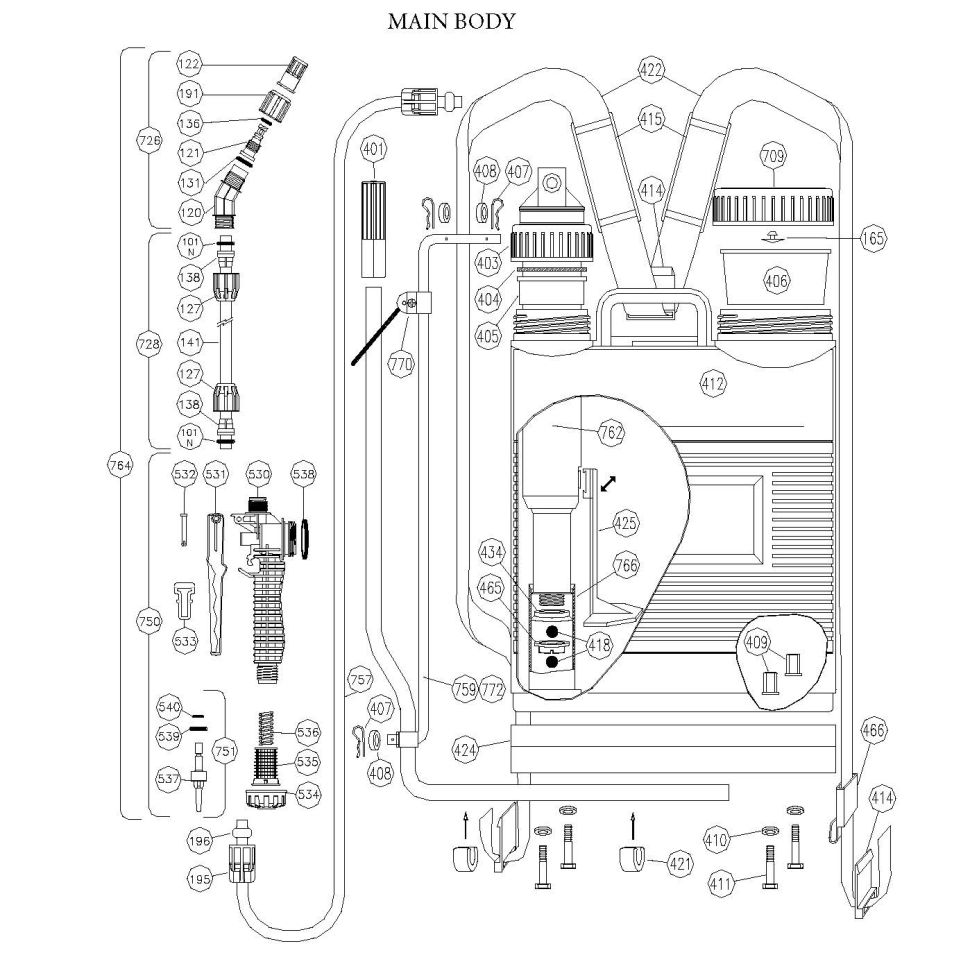

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MX403. You have selected the Main Body diagram for the Maruyama MX403 Manual Sprayers. Below you will find an interactive part diagram for the MX403 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MX403 parts not shown in this diagram you may select from one of the other MX403 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
101N 842521 842521 - AN-8 NITRILE GASKET
$2.99
120 842523 842523 - ELBOW
$2.99
121 842524 842524 - MIXER
$2.99
122 842525 842525 - 1MM DIAMETER NOZZLE
$2.99
127 842526 842526 - CONIC NUT
$2.99
131 842527 842527 - 16X2 FLAT GASKET
$2.99
136 842528 842528 - AN-5 NITRILE GASKET
$2.99
138 842529 842529 - 10 MM. DIAMETER CONE
$2.99
141 842530 842530 - BLACK TUBE LANCE
$7.99
165 842570 842570 - TANK COVER VALVE
$2.99
191 842540 842540 - NOZZLE NUT
$2.99
195 842541 842541 - HOSE NUT
$2.99
196 842542 842542 - HOSE BUSHING
$2.99
401 842574 842574 - LEVER GRIP
$2.99
403 842575 842575 - CHAMBER NUT LID
$2.99
404 842576 842576 - SYNTHETIC GASKET (2p
$2.99
405 842577 842577 - BUSHING LID
$2.99
406 842578 842578 - TANK FILTER
$2.99
407 842579 842579 - BOLT
$2.99
408 842580 842580 - LEVER WASHER
$2.99
409 842581 842581 - BASE NUT
$2.99
410 842582 842582 - BASE NUT WASHER
$8.99
411 842583 842583 - BASE NUT
$2.99
412 842522 842522 - 12 LITER TANK
$56.99
414 842584 842584 - STRAP RING
$2.99
415 842585 842585 - SHOULDER
$2.99
418 842586 842586 - 12MM DIAMETER BALL
$7.99
421 842587 842587 - BASE BUSHING
$2.99
422 842588 842588 - 2 M STRAP
$14.99
424 842589 842589 - TANK BASE
$16.99
425 842590 842590 - AGITATOR
$2.99
434 842591 842591 - SYNTHETIC RETAINER
$5.99
465 842592 842592 - SEALING VALVE
$2.99
466 842593 842593 - STRAP HOOK
$2.99
530 842543 842543 - HANDLE BODY
$7.99
531 842544 842544 - BUTTON
$2.99
532 842545 842545 - BUTTON BOLT
$2.99
533 842546 842546 - HANDLE CLIP
$2.99
534 842547 842547 - HANDLE NUT
$2.99
535 842548 842548 - HANDLE FILTER
$2.99
536 842549 842549 - HANDLE SPRING
$2.99
537 842550 842550 - SHUTTER
$2.99
539 842552 842552 - 2-109 VITON GASKET
$2.99
540 842553 842553 - 2-107 VITON GASKET
$2.99
709 842607 842607 - TANK COVER WITH VALV
$13.99
726 842554 842554 - ELBOW WITH NOZZLE
$10.99
728 842555 842555 - TUBE WITH NUTS
$15.99
750 842558 842558 - COMPLETE HANDLE
$28.99
751 842559 842559 - COMPLETE SHUTTER
$11.99
757 842560 842560 - COMPLETE HOSE
$24.99
762 842647 842647 - CHAMBER ASSY 12L
$34.99
764 842564 842564 - COMPLETE LANCE
$39.99
766 842616 842616 - 12MM BALL CYLINDER
$18.99
770 842617 842617 - WAND HOLDER (CLAMP)
$12.99
772 842648 842648 - ARM-LEVER SET 16/20L
$35.99
