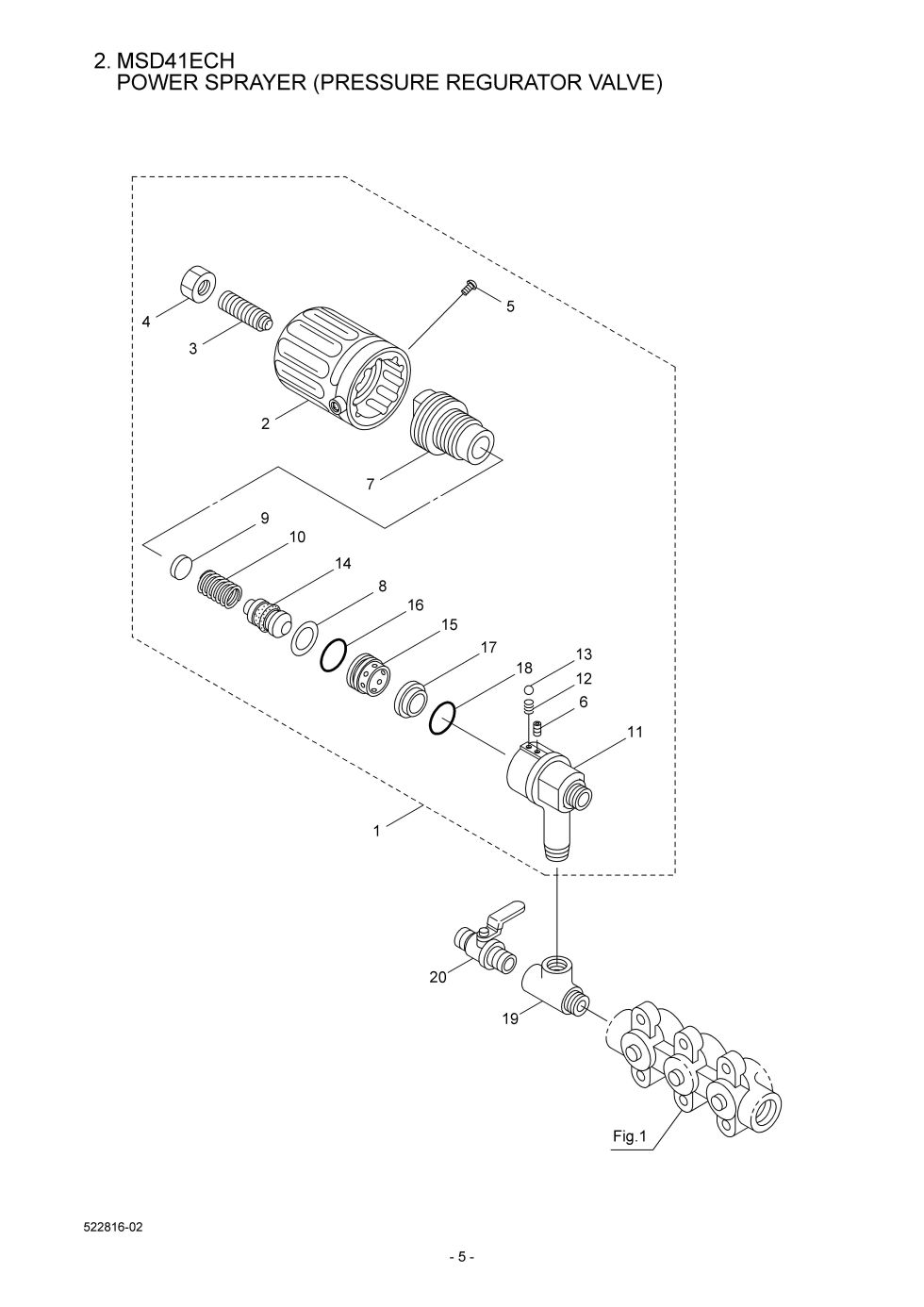

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MSD41ECH. You have selected the Power Sprayer (Pressure Regulator Valve) diagram for the Maruyama MSD41ECH Piston Pumps. Below you will find an interactive part diagram for the MSD41ECH Power Sprayer (Pressure Regulator Valve). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MSD41ECH parts not shown in this diagram you may select from one of the other MSD41ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
-04.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 546849 | 546849 - PRESSURE REGULATOR V |
$222.99
|
|
| 2 | 540936 | 540936 - GRIP |
$38.99
|
|
| 3 | 088913 | 088913 - SCREW |
$6.99
|
|
| 4 | 126521 | 126521 - Nut |
$2.99
|
|
| 5 | 549385 | 549385 - SCREW |
$2.99
|
|
| 6 | 088912 | 088912 - CAP SCREW |
$2.99
|
|
| 7 | 106495 | 106495 - GUIDE |
$48.99
|
|
| 8 | 106499 | 106499 - WASHER |
$2.99
|
|
| 9 | 541769 | 541769 - RETAINER |
$2.99
|
|
| 10 | 548819 | 548819 - SPRING |
$11.99
|
|
| 11 | 546500 | 546500 - BODY |
$54.99
|
|
| 12 | 107221 | 107221 - SPRING |
$2.99
|
|
| 13 | 106498 | 106498 - VALVE BALL |
$2.99
|
|
| 14 | 543591 |
543591 - USE: 105724 (obsolete) use part #105724 |
$28.99
|
|
| 15 | 103306 | 103306 - SLEEVE |
$26.99
|
|
| 16 | 019261 | 019261 - ORING P16 |
$2.99
|
|
| 17 | 543507 | 543507 - VALVE SEAT |
$10.99
|
|
| 19 | 542258 | 542258 - TEE |
$31.99
|
|
| 20 | 541796 | 541796 - COCK ASSY |
$26.99
|
