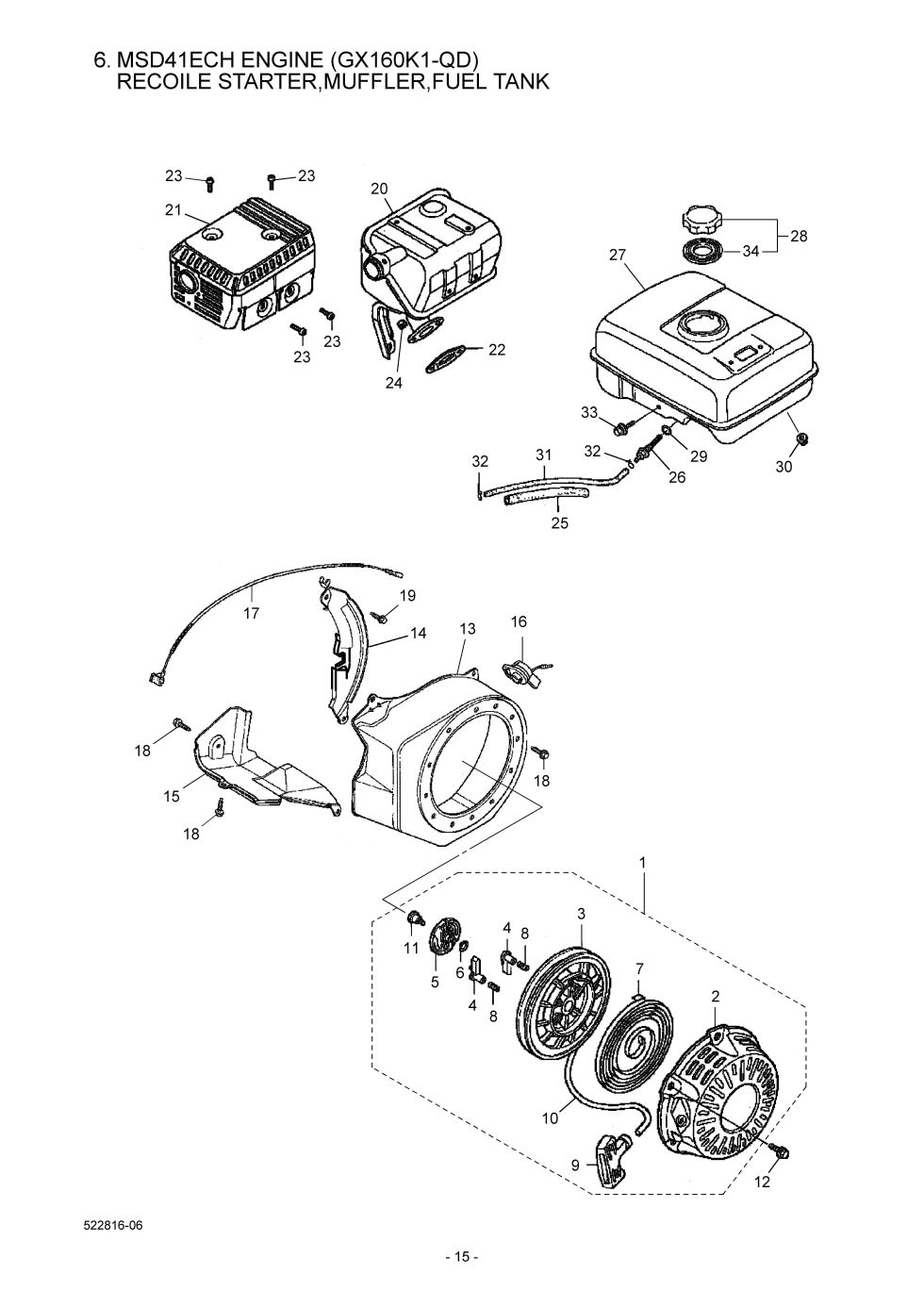

Engine (Recoil Starter, Muffler, Fuel Tank)

Engine (Recoil Starter, Muffler, Fuel Tank)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MSD41ECH. You have selected the Engine (Recoil Starter, Muffler, Fuel Tank) diagram for the Maruyama MSD41ECH Piston Pumps. Below you will find an interactive part diagram for the MSD41ECH Engine (Recoil Starter, Muffler, Fuel Tank). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MSD41ECH parts not shown in this diagram you may select from one of the other MSD41ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 620853 620853 - RECOIL STARTER ASSY
$143.99
3 626448 626448 - RECOIL STARTER REEL
$58.99
4 626449 626449 - STARTER RATCHET
$22.99
5 626450 626450 - RATCHET GUIDE
$19.99
6 626451 626451 - FRICTION SPRING
$13.99
7 626452 626452 - RECOIL STARTER SPRIN
$39.99
8 626453 626453 - RETURN SPRING
$13.99
9 620862 620862 - RECOIL STARTER KNOB
$24.99
10 626455 626455 - RECOIL STARTER ROPE
$26.99
11 626456 626456 - SETTING SCREW
$14.99
15 625265 625265 - SHROUD COMP.
$31.99
16 632721 632721 - ENGINE STOP SWITCH A
$27.99
17 620851 620851 - STOP SWITCH CORD
$19.99
18 990467 990467 - BOLT
$13.99
19 626393 626393 - FLANGE BOLT
$8.99
21 620867 620867 - MUFFLER PROTECTOR
$105.99
22 626624 626624 - MUFFLER GASKET
$15.99
23 583785 583785 - TAPPING SCREW
$5.99
24 583787 583787 - NUT
$2.99
25 620869 620869 - SUPPORTER RUBBER
$13.99
26 583789 583789 - FUEL TANK JOINT
$20.99
27 625268 625268 - FUEL TANK COMP.
$147.99
29 625228 625228 - O-RING
$19.99
30 990487 990487 - NUT
$2.99
31 583795 583795 - FUEL TUBE
$6.99
32 990499 990499 - TUBE CLIP
$2.99
33 583796 583796 - FLANGE BOLT
$2.99
