Engine (Crankshaft, Piston)

Engine (Crankshaft, Piston)

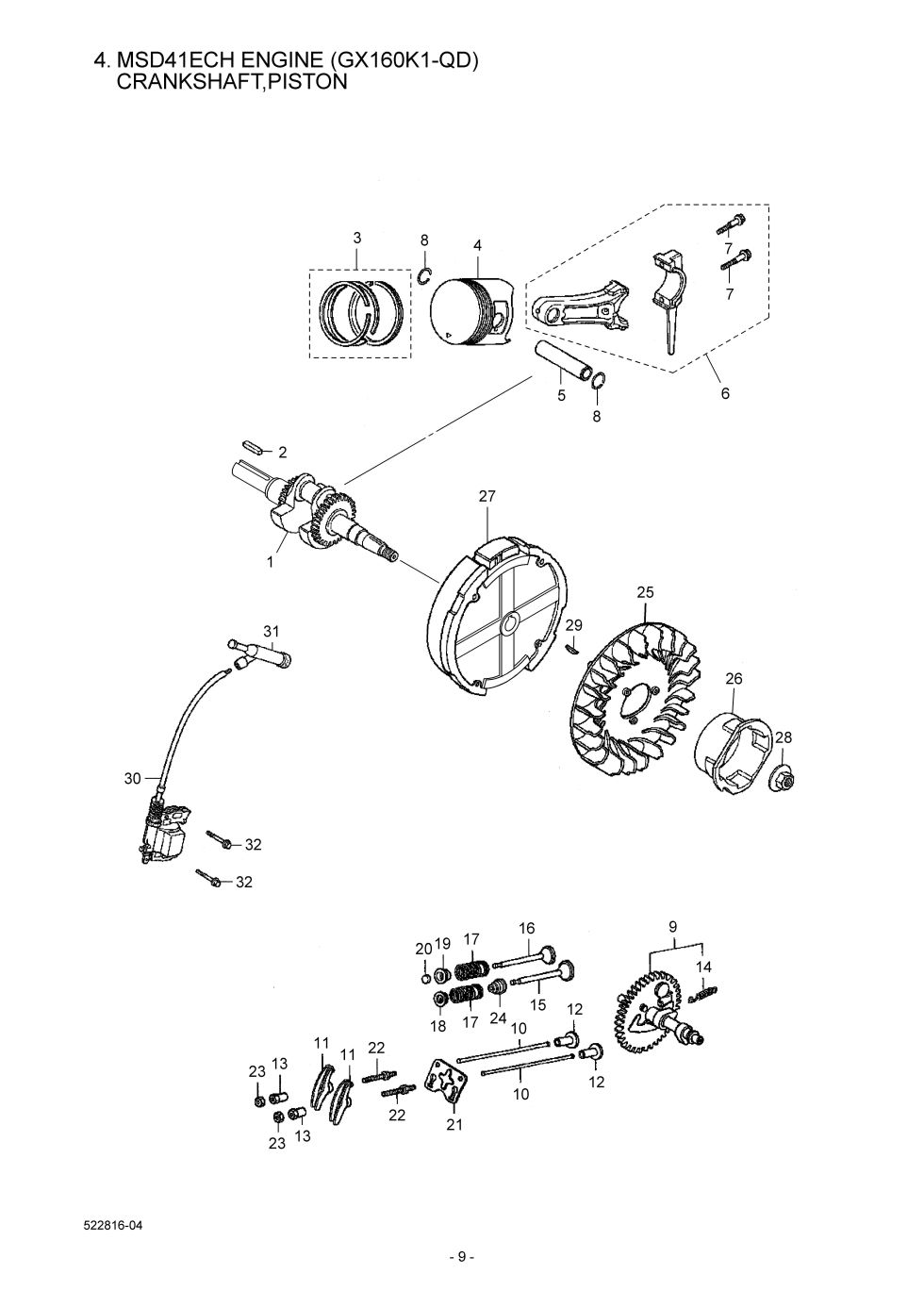

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MSD41ECH. You have selected the Engine (Crankshaft, Piston) diagram for the Maruyama MSD41ECH Piston Pumps. Below you will find an interactive part diagram for the MSD41ECH Engine (Crankshaft, Piston). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MSD41ECH parts not shown in this diagram you may select from one of the other MSD41ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.


Position number SKU Product title Price
2 586693 586693 - KEY(4.78X4.78X38)
$22.99
4 625254 625254 - PISTON
$75.99
5 626355 626355 - PISTON PIN
$22.99
6 626356 626356 - CONNECTING ROD
$99.99
7 626357 626357 - CONNECTING ROD BOLT
$8.99
8 626358 626358 - PISTON PIN CLIP
$2.99
9 626346 626346 - CAMSHAFT ASSY.
$203.99
10 626347 626347 - PUSH ROD
$22.99
11 626348 626348 - ROCKER ARM, MACHINED
$21.99
12 625234 625234 - LIFTER, MACHINED DIS
$26.99
13 625929 625929 - ROCKER ARM PIVOT
$15.99
14 625925 625925 - WEIGHT RETURN SPRING
$7.99
15 625255 625255 - INLET VALVE
$39.99
16 625256 625256 - EXHAUST VALVE
$45.99
17 626350 626350 - SPRING, MACHINED DIS
$9.99
18 626351 626351 - RETAINER
$22.99
19 626352 626352 - SPRING RETAINER, MAC
$22.99
20 626353 626353 - ROTATOR, MACHINED DI
$14.99
21 626354 626354 - PUSH ROD GUIDE PLATE
$9.99
22 625938 625938 - PIVOT BOLT
$19.99
23 625939 625939 - PIVOT ADJUSTING NUT
$9.99
25 626384 626384 - COOLING FAN
$38.99
26 626385 626385 - STARTER PULLEY
$39.99
27 629361 629361 - FLYWHEEL COMP.
$113.99
28 626388 626388 - SPECIAL NUT
$17.99
29 626383 626383 - WOODRUFF KEY (25X18)
$9.99
30 625232 625232 - IGNITION COIL ASSY
$117.99
31 625233 625233 - CAP ASSY.
$39.99
32 998214 998214 - FLANGE BOLT
$13.99
