Engine (Air Cleaner, Carburetor)

Engine (Air Cleaner, Carburetor)

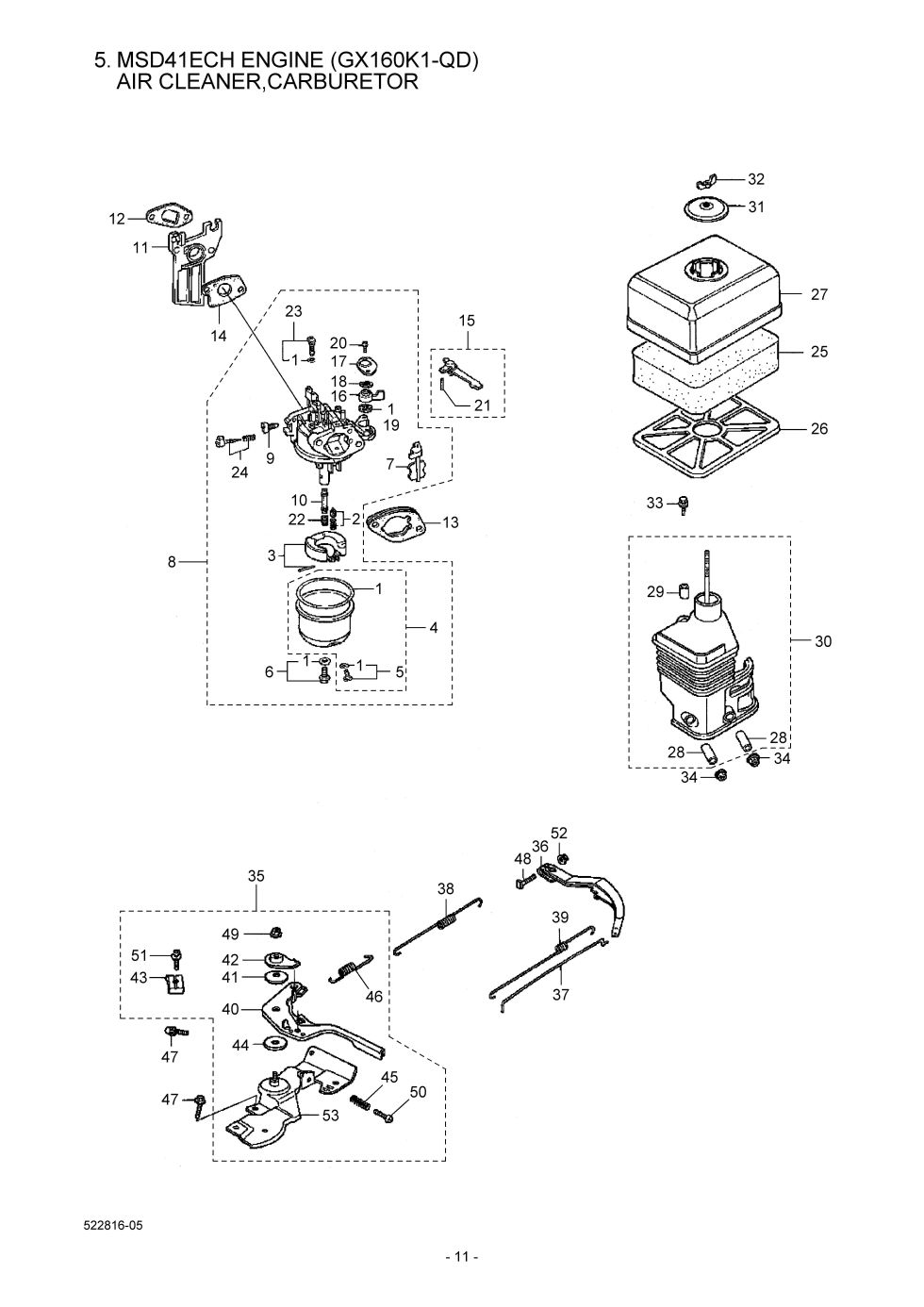

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MSD41ECH. You have selected the Engine (Air Cleaner, Carburetor) diagram for the Maruyama MSD41ECH Piston Pumps. Below you will find an interactive part diagram for the MSD41ECH Engine (Air Cleaner, Carburetor). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MSD41ECH parts not shown in this diagram you may select from one of the other MSD41ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 620833 620833 - GASKET SET
$31.99
2 998250 998250 - FLOAT VALVE SET
$45.99
3 626364 626364 - FLOAT SET
$41.99
4 628314 628314 - FLOAT CHAMBER SET
$46.99
5 998255 998255 - DRAIN SCREW SET
$21.99
6 626367 626367 - SCREW SET
$22.99
7 626368 626368 - CHOKE SET
$43.99
9 998258 998258 - THROTTLE STOP SCREW
$29.99
10 625270 625270 - MAIN NOZZLE
$29.99
11 626374 626374 - INSULATOR
$34.99
12 625261 625261 - INSULATOR GASKET
$6.99
13 583737 583737 - CARBURETOR SPACER CO
$18.99
14 625236 625236 - CARBURETOR PACKING
$5.99
15 583740 583740 - CHOKE LEVER COMP.
$24.99
16 627201 627201 - COCK LEVER
$18.99
17 998266 998266 - LEVER SETTING PLATE
$2.99
18 998265 998265 - COCK LEVER SPRING
$14.99
21 626377 626377 - SPRING PIN
$2.99
23 998260 998260 - PILOT JET SET
$43.99
24 627198 627198 - SCREW SET
$32.99
25 583746 583746 - AIR CLEANER ELEMENT
$31.99
26 583747 583747 - AIR CLEANER GRID
$20.99
27 583748 583748 - AIR CLEANER COVER
$77.99
28 583749 583749 - AIR CLEANER COLLAR
$11.99
29 583750 583750 - AIR CLEANER COLLAR (
$13.99
30 583751 583751 - AIR CLEANER ELBOW CO
$79.99
31 583752 583752 - CLEANER CAP
$24.99
32 990471 990471 - NUT
$7.99
33 583756 583756 - BOLT(6X20)
$2.99
34 990487 990487 - NUT
$2.99
36 626379 626379 - GOVERNOR ARM
$26.99
37 626380 626380 - GOVERNOR ROD
$10.99
38 583715 583715 - GOVERNOR SPRING
$12.99
39 626382 626382 - THROTTLE RETURN SPRI
$8.99
41 998280 998280 - LEVER SPRING
$14.99
42 620829 620829 - CONTROL LEVER WASHER
$16.99
43 990418 990418 - CABLE HOLDER
$13.99
44 998278 998278 - NLA CONTROL LEVER SP
$13.99
45 990419 990419 - CONTROL ADJUSTING SP
$8.99
46 583721 583721 - CABLE RETURN SPRING
$8.99
47 990467 990467 - BOLT
$13.99
48 626007 626007 - GOVERNOR ARM BOLT
$7.99
49 583724 583724 - SELF LOCK NUT
$11.99
50 620831 620831 - PAN SCREW
$2.99
