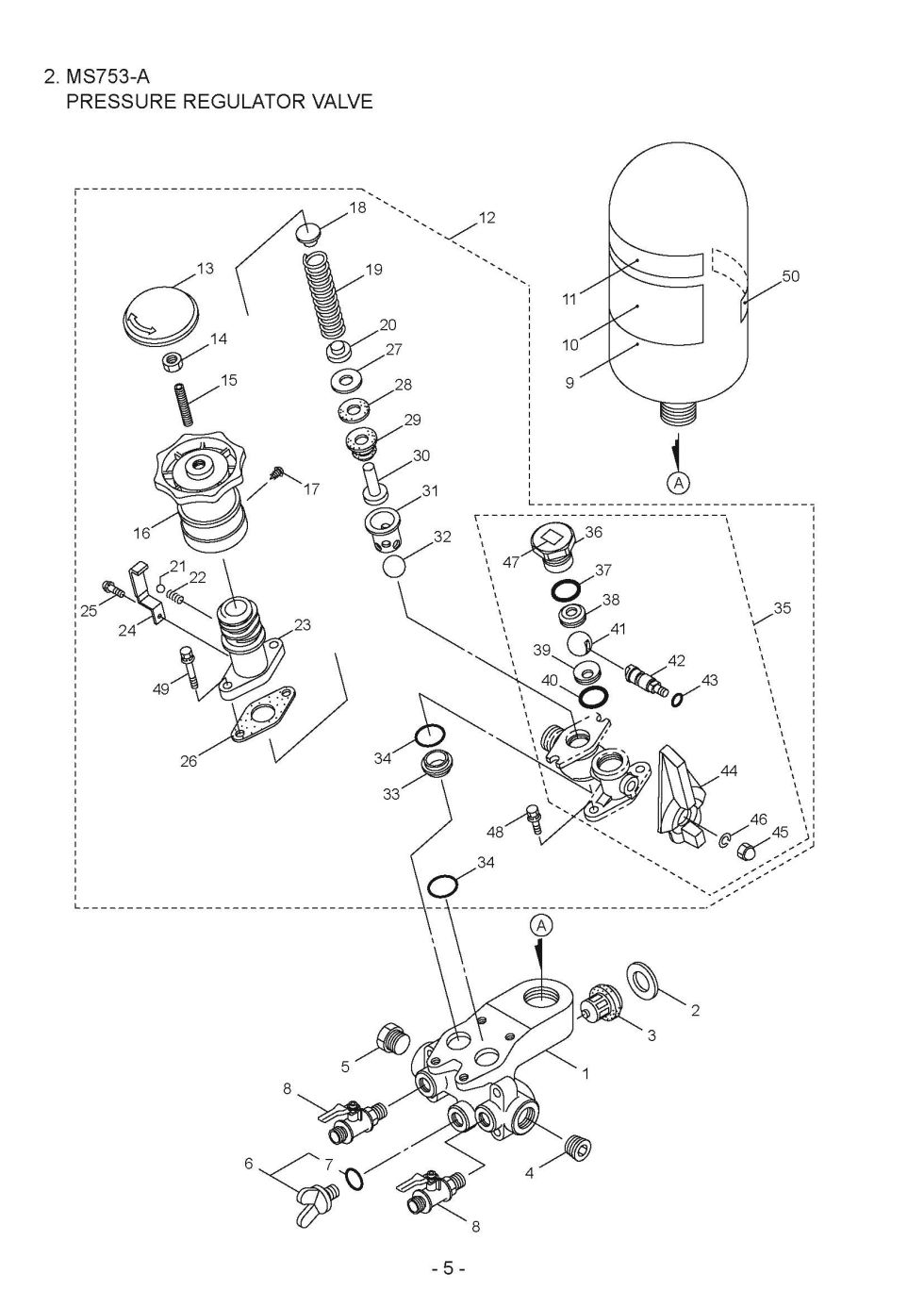

Pressure Regulator Valve

Pressure Regulator Valve

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS753-A. You have selected the Pressure Regulator Valve diagram for the Maruyama MS753-A Piston Pumps. Below you will find an interactive part diagram for the MS753-A Pressure Regulator Valve. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS753-A parts not shown in this diagram you may select from one of the other MS753-A part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 120906 120906 - DISCHARGE MANIFOLD
$178.99
2 108406 108406 - WASHER
$6.99
3 120236 120236 - VALVE ASSY.
$31.99
4 120909 120909 - PLUG
$26.99
5 108399 108399 - PLUG
$18.99
6 632737 632737 - PLUG ASSY
$19.99
7 023170 023170 - O-RING, DRAIN PLUG
$2.99
8 120835 120835 - BALL COCK
$33.99
9 108392 108392 - USE: 130442
$183.99
10 121443 121443 - LABEL
$2.99
11 115372 115372 - LABEL
$2.99
12 120910 120910 - NLA PRESSURE REG
$270.99
13 120911 120911 - CAP
$6.99
14 126195 126195 - NUT
$2.99
15 120913 120913 - SET SCREW
$5.99
16 120914 120914 - GRIP
$24.99
17 089899 089899 - SCREW M4X14
$2.99
18 108402 108402 - SPRING RETAINER
$6.99
19 120917 120917 - SPRING
$20.99
20 120918 120918 - SPRING RECEIVER
$6.99
21 011495 011495 - VALVE BALL
$2.99
22 121221 121221 - SPRING
$2.99
23 120919 120919 - SPRING CASE
$29.99
24 121079 121079 - PLATE
$6.99
25 092100 092100 - SCREW
$2.99
26 122734 122734 - GASKET
$2.99
27 120925 120925 - WASHER
$2.99
28 120926 120926 - PRESS REG VALVE PACK
$2.99
29 120927 120927 - PRESS REG VALVE BELL
$15.99
30 120929 120929 - PRESS REG VALVE ROD
$14.99
31 120930 120930 - PRESS REG VALVE SACK
$18.99
32 120931 120931 - VALVE BALL
$39.99
33 120932 120932 - PRESS REG VALVE SEAT
$20.99
34 020285 020285 - O-RING
$2.99
35 121015 121015 - BODY ASSY
$100.99
36 120933 120933 - BALL RETAINER
$20.99
37 013975 013975 - O-RING
$2.99
38 121692 121692 - SEAT, MACHINED DISC
$11.99
39 121693 121693 - VALVE SEAT
$20.99
40 013970 013970 - O-RING
$2.99
41 120934 120934 - BALL VALVE
$20.99
42 120935 120935 - BALL ROTATOR
$23.99
43 025300 025300 - O-RING
$2.99
44 121007 121007 - HANDLE
$23.99
45 100166 100166 - CAP NUT
$2.99
46 029754 029754 - SPRING WASHER
$2.99
47 108355 108355 - LABEL(ARROW MARK)
$2.99
48 125753 125753 - HEX BOLT REAR COVER
$2.99
49 120937 120937 - BOLT WSW
$7.99
50 121074 121074 - STICKER
$2.99
