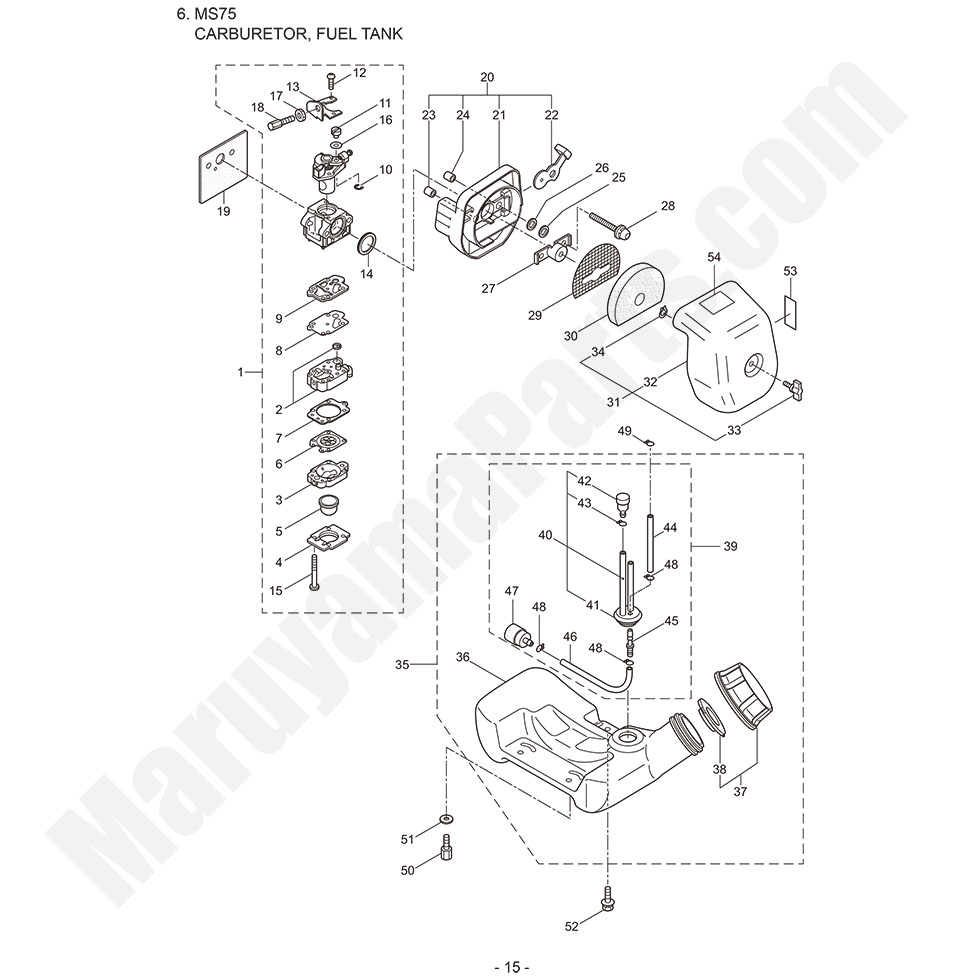

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS75. You have selected the Carburetor, Fuel Tank diagram for the Maruyama MS75 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS75 Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS75 parts not shown in this diagram you may select from one of the other MS75 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 282542 282542 - CARBURETOR
$156.99
2 264155 264155 - PUMP BODY
$80.99
3 262991 262991 - PURGE BODY
$23.99
4 262992 262992 - COVER PLATE
$11.99
5 261874 261874 - PRIMER
$19.99
6 283905 283905 - METERRING DIAPHRAGM
$15.99
7 262993 262993 - GASKET
$10.99
8 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
9 282576 282576 - GASKET
$8.99
10 261876 261876 - E-RING
$2.99
11 261658 261658 - SWIVEL
$5.99
12 261875 261875 - SCREW
$2.99
13 264677 264677 - BRACKET
$20.99
14 261657 261657 - PACKING
$10.99
15 262996 262996 - SCREW
$2.99
16 264678 264678 - WASHER
$2.99
17 261878 261878 - NUT
$2.99
18 263994 263994 - ADJUSTER
$16.99
19 269762 269762 - GASKET
$2.99
20 268055 268055 - AIR FILTER CASE ASSY
$19.99
22 268057 268057 - VALVE
$11.99
23 268157 268157 - SLEEVE
$2.99
24 268412 268412 - SLEEVE
$2.99
25 263345 263345 - PACKING
$2.99
26 263942 263942 - WASHER
$2.99
27 263815 263815 - STAY
$8.99
28 264016 264016 - CAP SCREW M5X60
$2.99
29 265026 265026 - SCREEN
$2.99
30 265027 265027 - FOAM ELEMENT
$5.99
31 268058 268058 - AIR FILTER COVER ASS
$24.99
32 268059 268059 - AIR FILTER COVER
$12.99
33 281438 281438 - KNOB
$7.99
34 261734 261734 - SNAP RING
$2.99
35 289037 289037 - FUEL TANK ASSY
$77.99
36 285224 285224 - FUEL TANK
$29.99
37 289043 289043 - FUEL TANK CAP ASS'Y (obsolete)
use part #289046
$19.99
38 287058 287058 - GASKET
$10.99
39 289035 289035 - FUEL PIPE PICK-UP AS
$34.99
40 289036 289036 - FUEL PIPE ASS'Y
$17.99
41 268065 268065 - GROMMET
$8.99
42 261590 261590 - BREATHER SUB ASSY
$12.99
43 261117 261117 - CLIP
$2.99
44 289028 289028 - PIPE A
$6.99
45 288921 288921 - JOINT
$2.99
46 289033 289033 - PIPE
$2.99
50 285065 285065 - SCREW
$11.99
51 283688 283688 - WASHER
$2.99
52 284695 284695 - SCREW
$2.99
53 261352 261352 - DECAL
$2.99
54 285188 285188 - LABEL
$2.99
