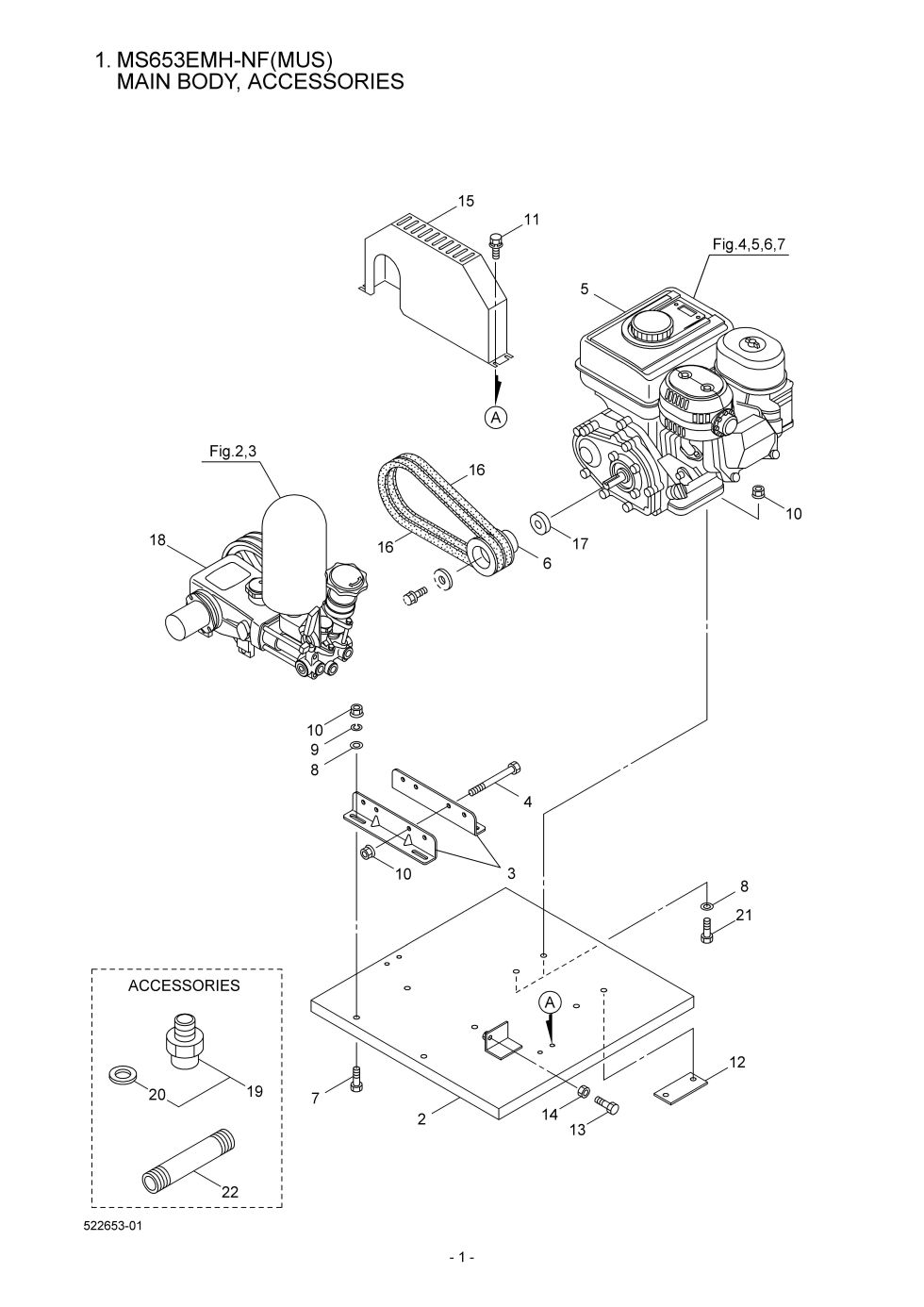

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS653EMH-NF. You have selected the Main Body, Accessories diagram for the Maruyama MS653EMH-NF Piston Pumps. Below you will find an interactive part diagram for the MS653EMH-NF Main Body, Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS653EMH-NF parts not shown in this diagram you may select from one of the other MS653EMH-NF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 117634 | 117634 - ANGLE RAIL |
$25.99
|
|
| 4 | 126533 |
126533 - BOLT HEX |
$5.99
|
|
| 8 | 013849 | 013849 - WASHER |
$2.99
|
|
| 9 | 126231 |
126231 - WASHER LOCK |
$2.99
|
|
| 11 | 125824 | 125824 - BOLT MS253ECKF MS153 |
$2.99
|
|
| 12 | 543245 | 543245 - STAY |
$17.99
|
|
| 13 | 549754 | 549754 - BOLT |
No Longer Available Obsolete. |
|
| 14 | 126521 | 126521 - Nut |
$2.99
|
|
| 17 | 549758 | 549758 - COLLAR |
$7.99
|
|
| 19 | 811343 | 811343 - EXTENTION PF3/8XPF1/ |
$5.99
|
|
| 20 | 011205 | 011205 - Obsolete - USE PART #014823 |
No Longer Available Obsolete. |
|
| 21 | 080291 | 080291 - BOLT |
$2.99
|
|
| 22 | 028713 | 028713 - NIPPLE |
$20.99
|
