 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

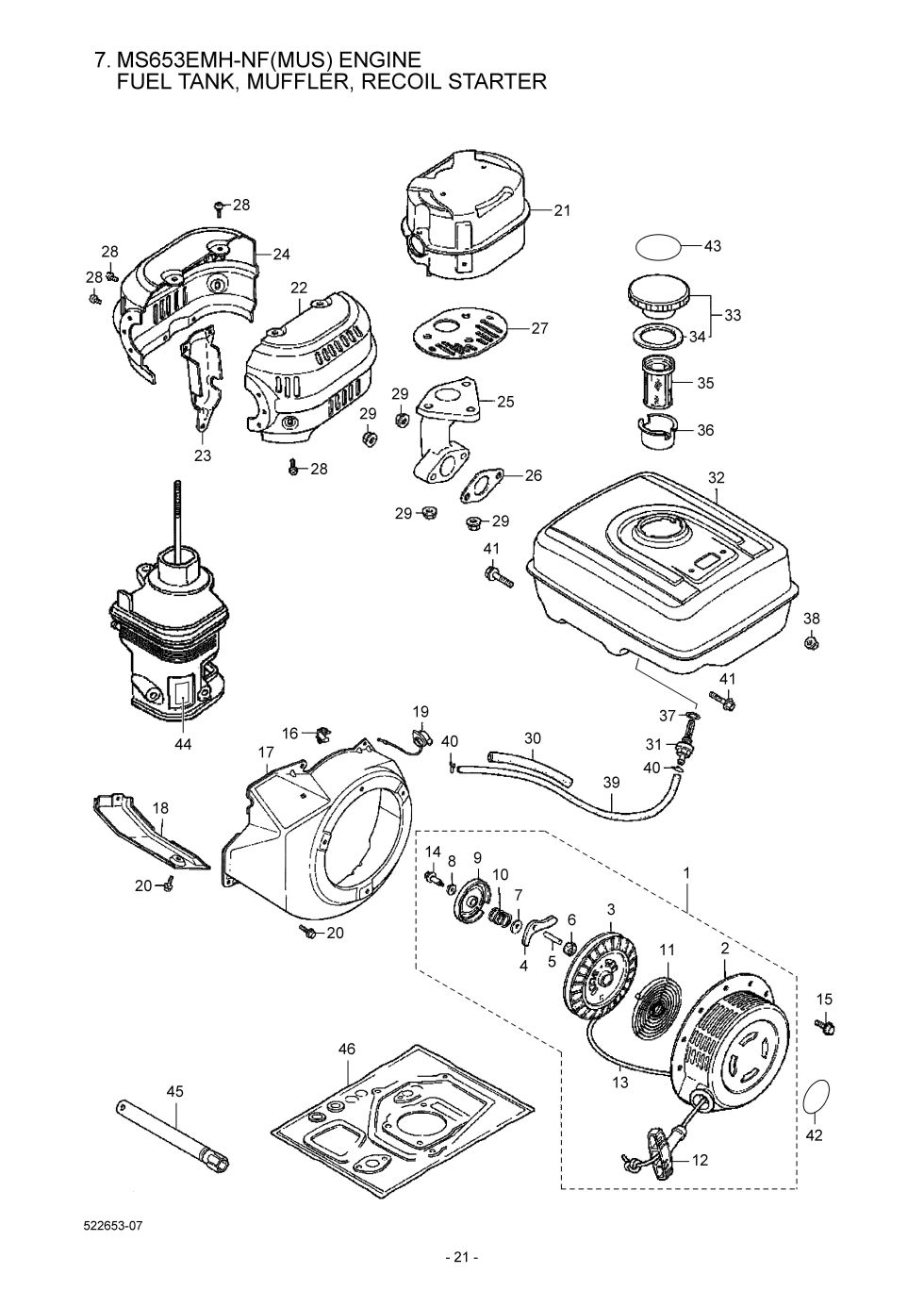

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS653EMH-NF. You have selected the Engine (Fuel Tank, Muffler, Recoil Starter) diagram for the Maruyama MS653EMH-NF Piston Pumps. Below you will find an interactive part diagram for the MS653EMH-NF Engine (Fuel Tank, Muffler, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS653EMH-NF parts not shown in this diagram you may select from one of the other MS653EMH-NF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
-01.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 8 | 998245 | 998245 - FRICTION PLATE B |
$30.99
|
|
| 14 | 998246 | 998246 - NLA REEL COVER BOLT |
$16.99
|
|
| 15 | 998247 | 998247 - NLA FLANGE BOLT |
$2.99
|
|
| 19 | 998221 | 998221 - ENGINE STOP SWITCH A |
$41.99
|
|
| 20 | 990467 | 990467 - BOLT |
$13.99
|
|
| 28 | 583785 | 583785 - TAPPING SCREW |
$5.99
|
|
| 29 | 625920 | 625920 - NLA NUT, FLANGE 8MM |
$2.99
|
|
| 30 | 620869 | 620869 - SUPPORTER RUBBER |
$13.99
|
|
| 31 | 583789 | 583789 - FUEL TANK JOINT |
$20.99
|
|
| 34 | 990428 | 990428 - NLA PACKING |
$2.99
|
|
| 35 | 990429 | 990429 - FUEL FILTER |
$41.99
|
|
| 36 | 990430 | 990430 - FUEL FILTER HOLDER |
$25.99
|
|
| 37 | 625228 | 625228 - O-RING |
$19.99
|
|
| 40 | 990499 | 990499 - TUBE CLIP |
$2.99
|
