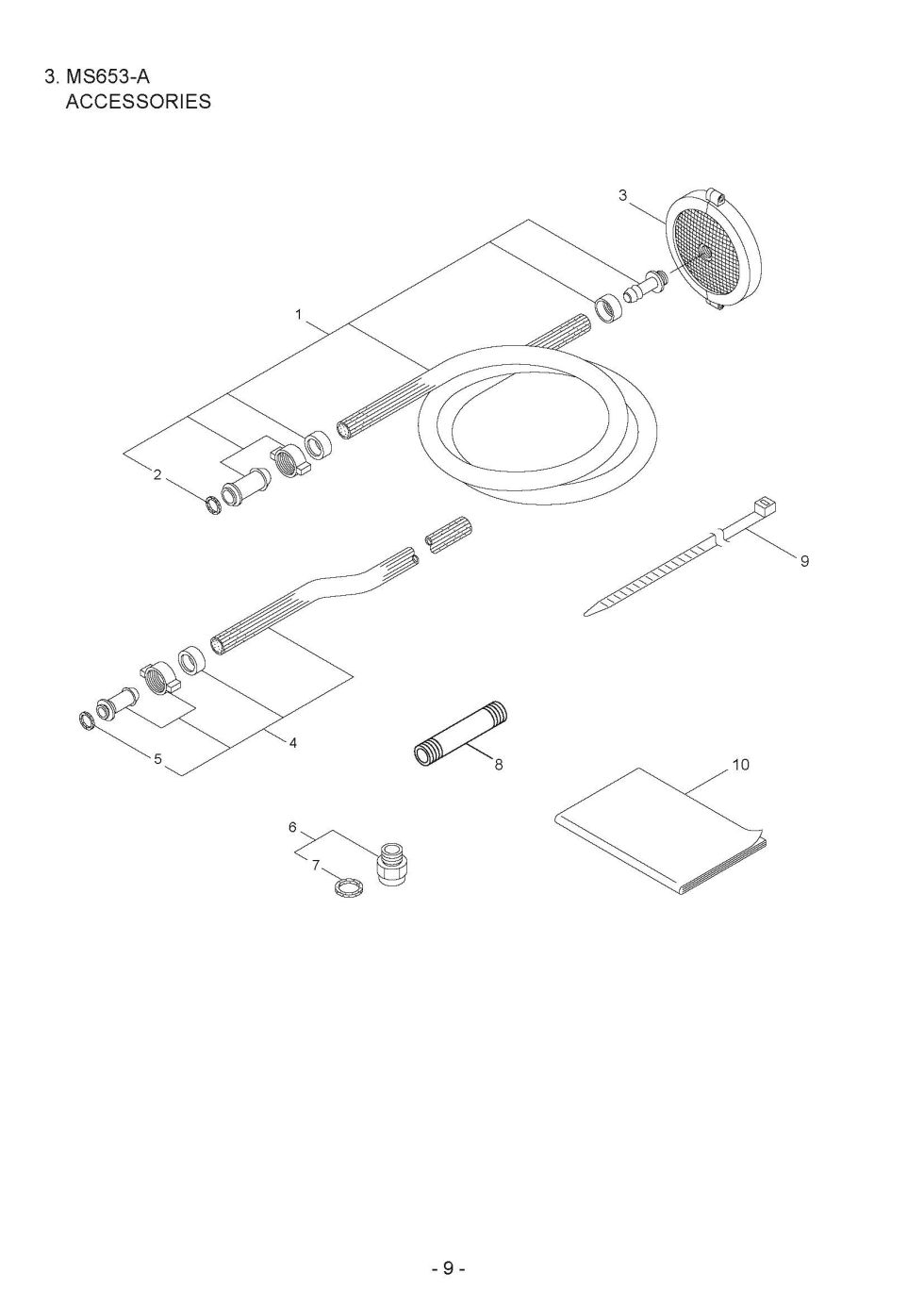

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS653-A. You have selected the Accessories diagram for the Maruyama MS653-A Piston Pumps. Below you will find an interactive part diagram for the MS653-A Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS653-A parts not shown in this diagram you may select from one of the other MS653-A part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 108450 | 108450 - SUCTION HOSE |
$152.99
|
|
| 2 | 103687 | 103687 - SEAL |
$2.99
|
|
| 3 | 122017 | 122017 - SUCTION STRAINER ASS |
$33.99
|
|
| 4 | 108452 | 108452 - DISCHARGE HOSE |
$71.99
|
|
| 5 | 103686 | 103686 - PACKING |
$2.99
|
|
| 6 | 811343 | 811343 - EXTENTION PF3/8XPF1/ |
$5.99
|
|
| 7 | 011205 | 011205 - Obsolete - USE PART #014823 |
No Longer Available Obsolete. |
|
| 8 | 028713 | 028713 - NIPPLE |
$20.99
|
|
| 9 | 107107 | 107107 - NLA BAND |
$5.99
|
