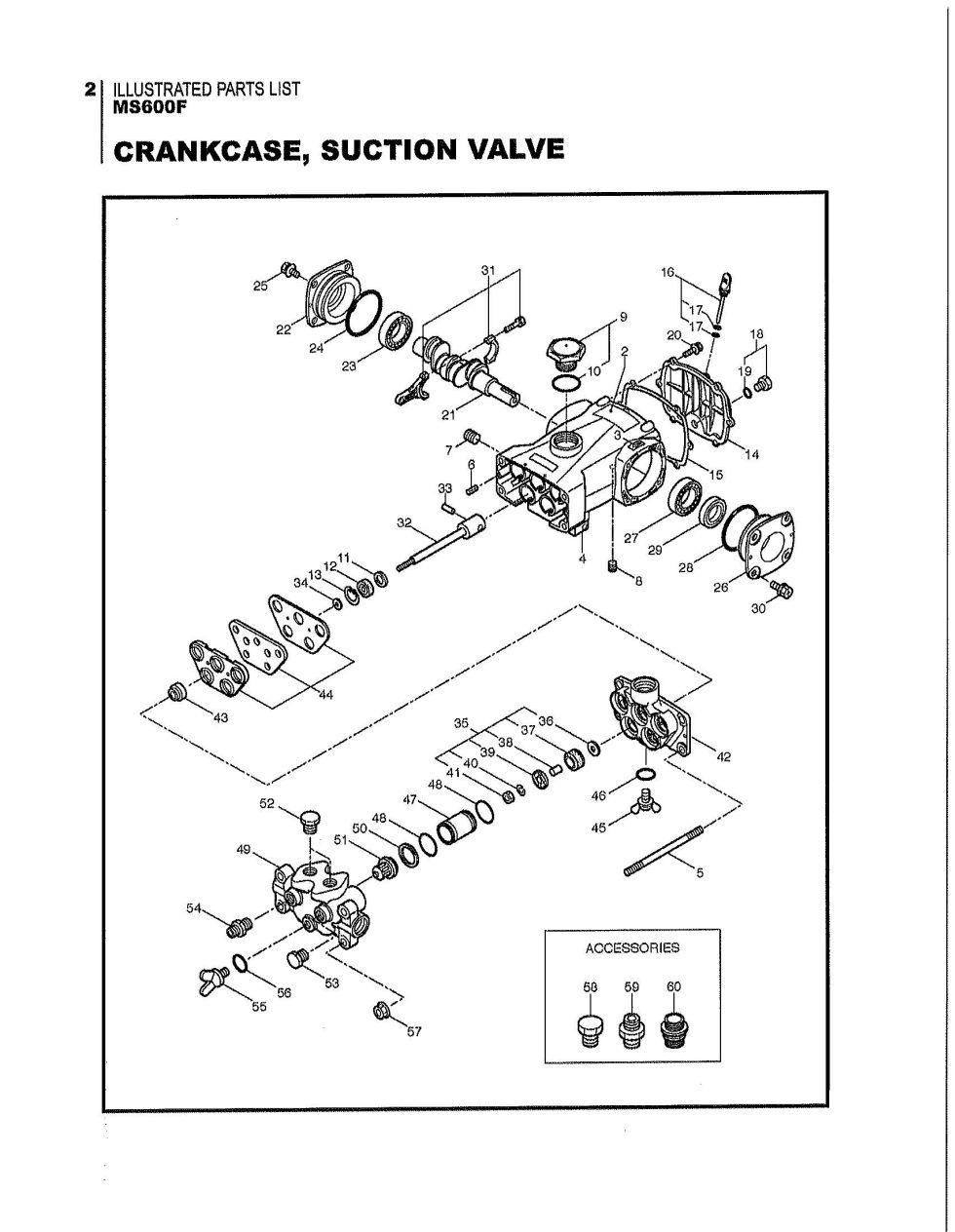

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS600F. You have selected the Crankcase, Suction Valve diagram for the Maruyama MS600F Piston Pumps. Below you will find an interactive part diagram for the MS600F Crankcase, Suction Valve. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS600F parts not shown in this diagram you may select from one of the other MS600F part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 054365 | 054365 - LABEL |
$2.99
|
|
| 6 | 027488 | 027488 - GUIDE PIN |
$2.99
|
|
| 7 | 044490 | 044490 - PLUG |
$2.99
|
|
| 8 | 145964 | 145964 - NLA PLUG |
$2.99
|
|
| 9 | 092269 | 092269 - OIL FILLER CAP (BLACK) |
$2.99
|
|
| 10 | 014177 | 014177 - O RING |
$2.99
|
|
| 11 | 126259 | 126259 - WASHER |
$2.99
|
|
| 12 | 025461 | 025461 - OIL SEAL |
$5.99
|
|
| 13 | 125306 | 125306 - C-RING |
$2.99
|
|
| 16 | 125312 | 125312 - OIL GAUGE ASSY |
$5.99
|
|
| 17 | 026531 | 026531 - O-RING, PISTON SLEEV |
$2.99
|
|
| 18 | 091376 | 091376 - PLUG |
$2.99
|
|
| 19 | 023170 | 023170 - O-RING, DRAIN PLUG |
$2.99
|
|
| 20 | 125824 | 125824 - BOLT MS253ECKF MS153 |
$2.99
|
|
| 23 | 016138 | 016138 - BEARING 6206CM |
$13.50
|
|
| 29 | 027330 | 027330 - OIL SEAL |
$7.99
|
|
| 33 | 016948 | 016948 - PISTON PIN |
$8.99
|
|
| 34 | 125334 |
$2.99
|
||
| 35 | 632583 | 632583 - INLET VALVE ASSY |
$36.99
|
|
| 36 | 014122 | 014122 - SUCTION VALVE SEAT |
$11.99
|
|
| 37 | 116121 | 116121 - PISTON PACKING |
$34.99
|
|
| 38 | 027499 | 027499 - SUCTION VALVE COLLAR |
$8.99
|
|
| 39 | 119917 | 119917 - PISTON RETAINER |
$5.99
|
|
| 40 | 015849 | 015849 - SPRING WASHER M6 |
$2.99
|
|
| 41 | 046365 | 046365 - NYLON NUT |
$2.99
|
|
| 43 | 100015 | 100015 - SEAL PACKING |
$21.99
|
|
| 44 | 125338 |
$19.99
|
||
| 45 | 108366 | 108366 - DRAIN PLUG |
$19.99
|
|
| 47 | 125342 |
$38.99
|
||
| 48 | 026142 |
026142 - O-RING DISC |
$2.99
|
|
| 50 | 125347 |
$24.99
|
||
| 51 | 120276 | 120276 - VALVE ASSY |
$29.99
|
|
| 52 | 100161 | 100161 - DRAIN PLUG |
$14.99
|
|
| 57 | 120369 | 120369 - FLANGE NUT |
$2.99
|
|
| 58 | 107405 | 107405 - PLUG |
$10.99
|
|
| 59 | 062755 | 062755 - NIPPLE |
$24.99
|
