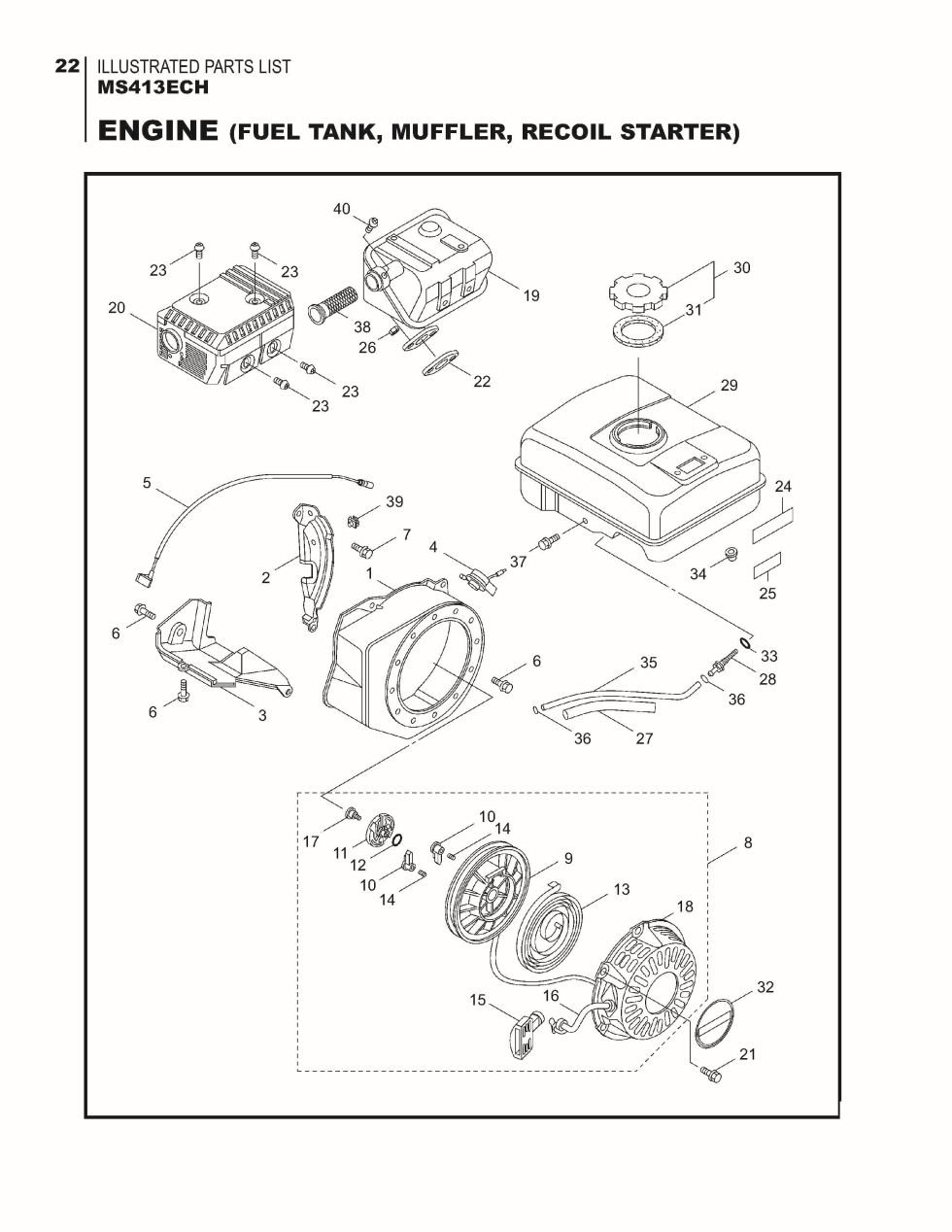

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS413ECH. You have selected the Engine (Fuel Tank, Muffler, Recoil Starter) diagram for the Maruyama MS413ECH Piston Pumps. Below you will find an interactive part diagram for the MS413ECH Engine (Fuel Tank, Muffler, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS413ECH parts not shown in this diagram you may select from one of the other MS413ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 625263 625263 - FAN COVER COMP.
$137.99
2 625264 625264 - SIDE PLATE
$18.99
3 625265 625265 - SHROUD COMP.
$31.99
4 625240 625240 - STOP SWITCH ASSY.
$38.99
5 620851 620851 - STOP SWITCH CORD
$19.99
6 990467 990467 - BOLT
$13.99
7 626393 626393 - FLANGE BOLT
$8.99
8 620853 620853 - RECOIL STARTER ASSY
$143.99
9 626448 626448 - RECOIL STARTER REEL
$58.99
10 626449 626449 - STARTER RATCHET
$22.99
11 626450 626450 - RATCHET GUIDE
$19.99
12 626451 626451 - FRICTION SPRING
$13.99
13 626452 626452 - RECOIL STARTER SPRIN
$39.99
14 626453 626453 - RETURN SPRING
$13.99
15 620862 620862 - RECOIL STARTER KNOB
$24.99
16 626455 626455 - RECOIL STARTER ROPE
$26.99
17 626456 626456 - SETTING SCREW
$14.99
18 620854 620854 - RECOIL STARTER CASE
$116.99
19 625267 625267 - MUFFLER COMP.
$142.99
20 620867 620867 - MUFFLER PROTECTOR
$105.99
21 626609 626609 - FLANGE BOLT
$2.99
22 626624 626624 - MUFFLER GASKET
$15.99
23 583785 583785 - TAPPING SCREW
$5.99
24 620847 620847 - DECAL
$13.99
25 625241 625241 - DECAL
$11.99
26 626627 626627 - NUT
$2.99
27 620869 620869 - SUPPORTER RUBBER
$13.99
28 583789 583789 - FUEL TANK JOINT
$20.99
29 625268 625268 - FUEL TANK COMP.
$147.99
30 620871 620871 - NLA FUEL FILLER CAP
$29.99
31 620872 620872 - PACKING
$15.99
32 625266 625266 - EMBLEM
$19.99
33 625228 625228 - O-RING
$19.99
34 990487 990487 - NUT
$2.99
35 583795 583795 - FUEL TUBE
$6.99
36 990499 990499 - TUBE CLIP
$2.99
37 583796 583796 - FLANGE BOLT
$2.99
38 625269 625269 - SPARK ARRESTER
$30.99
39 625242 625242 - CLIP
$7.99
40 583786 583786 - NLA TAPPING SCREW
$2.99
