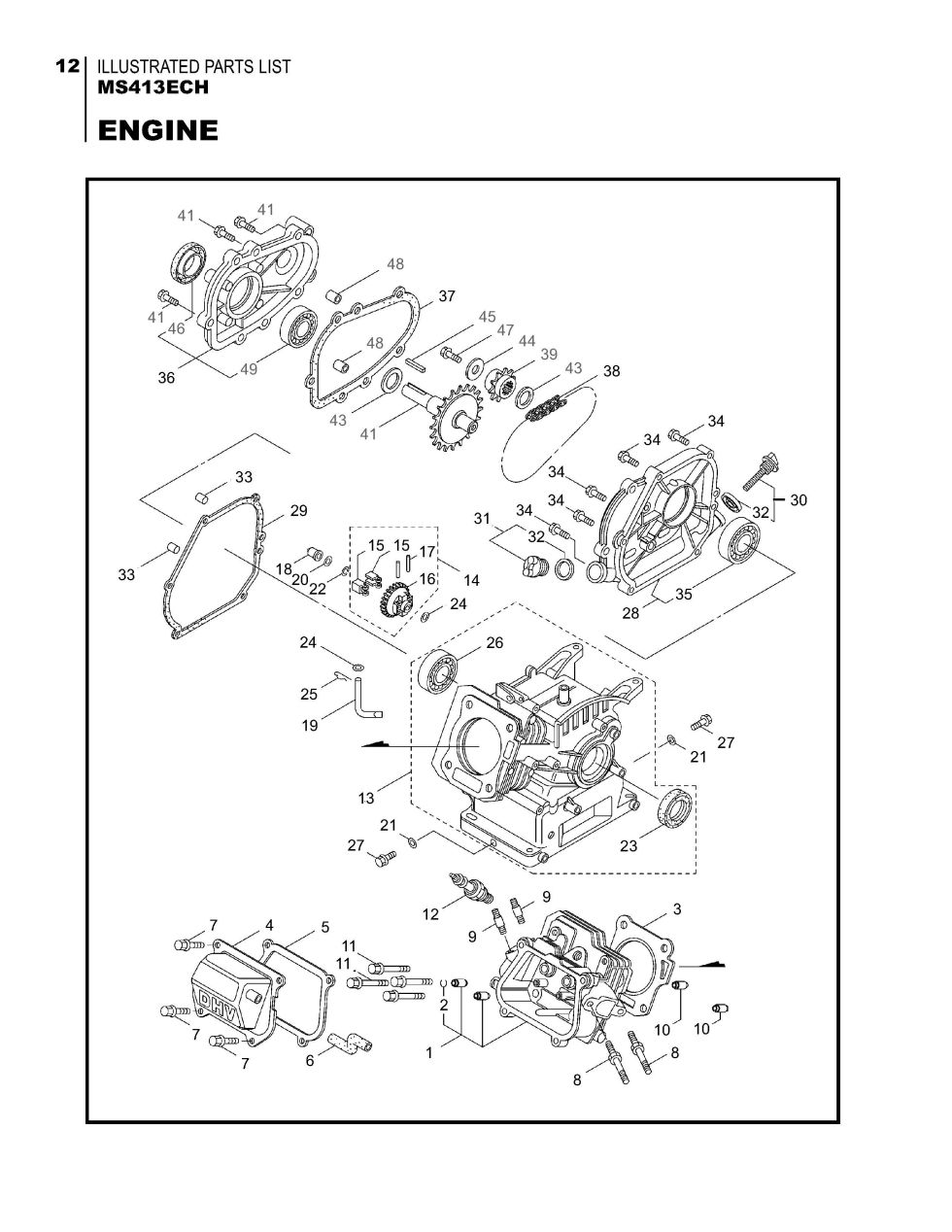

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS413ECH. You have selected the Engine diagram for the Maruyama MS413ECH Piston Pumps. Below you will find an interactive part diagram for the MS413ECH Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS413ECH parts not shown in this diagram you may select from one of the other MS413ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.


Position number SKU Product title Price
1 625245 625245 - CYLINDER HEAD COMP.
$143.99
2 626339 626339 - GUIDE CLIP, MACHINED
$2.99
3 625246 625246 - CYLINDER HEAD GASKET
$28.99
4 583644 583644 - HEAD COVER COMP.
$30.99
5 626340 626340 - HEAD COVER GASKET
$11.99
6 625223 625223 - BREATHER TUBE
$10.99
7 990467 990467 - BOLT
$13.99
8 625224 625224 - STUD BOLT
$15.99
9 626343 626343 - STUD BOLT
$10.99
10 626344 626344 - DOWEL PIN
$5.99
11 626345 626345 - FLANGE BOLT
$2.99
12 625225 625225 - SPARK PLUG
$14.99
13 625247 625247 - CYLINDER BARREL ASSY
$398.99
14 626317 626317 - GOVERNOR ASSY.
$28.99
15 626318 626318 - GOVERNOR WEIGHT
$8.99
16 626319 626319 - GOVERNOR WEIGHT HOLD
$28.99
17 998195 998195 - NLA GOVERNOR WEIGHT
$8.99
18 626321 626321 - GOVERNOR SLIDER
$8.99
19 626327 626327 - GOVERNOR ARM SHAFT
$19.99
20 626322 626322 - THRUST WASHER
$5.99
21 998199 998199 - DRAIN PLUG WASHER
$6.99
22 625895 625895 - GOVERNOR HOLDER CLIP
$2.99
23 626325 626325 - OIL SEAL
$22.99
24 990493 990493 - WASHER
$2.99
25 990496 990496 - LOCK PIN
$2.99
26 625248 625248 - RADIAL BALL BEARING
$33.99
27 998200 998200 - DRAIN PLUG BOLT
$15.99
28 625249 625249 - CRANKCASE COVER ASSY
$218.99
29 625250 625250 - CASE COVER GASKET
$20.99
30 626333 626333 - OIL FILLER CAP ASSY
$22.99
31 626335 626335 - OIL FILLER CAP ASSY
$21.99
32 626334 626334 - GASKET OIL FILLER CA
$13.99
33 990497 990497 - KNOCK PIN
$7.99
34 583671 583671 - FLANGE BOLT
$5.99
35 626332 626332 - RADIAL BALL BEARING
$32.99
36 583672 583672 - CHAIN CASE COVER ASS
$215.99
37 620748 620748 - CHAIN CASE COVER PAC
$18.99
38 583674 583674 - P.T.O. DRIVE CHAIN
$42.99
39 625251 625251 - DRIVE SPROCKET
$61.99
41 998198 998198 - FLANGE BOLT
$13.99
43 583678 583678 - SPACER(20MM)
$12.99
44 583679 583679 - WASHER
$12.99
45 620762 620762 - KEY
$18.99
47 620763 620763 - BOLT
$2.99
