Fuel Tank, Recoil Starter, Muffler

Fuel Tank, Recoil Starter, Muffler

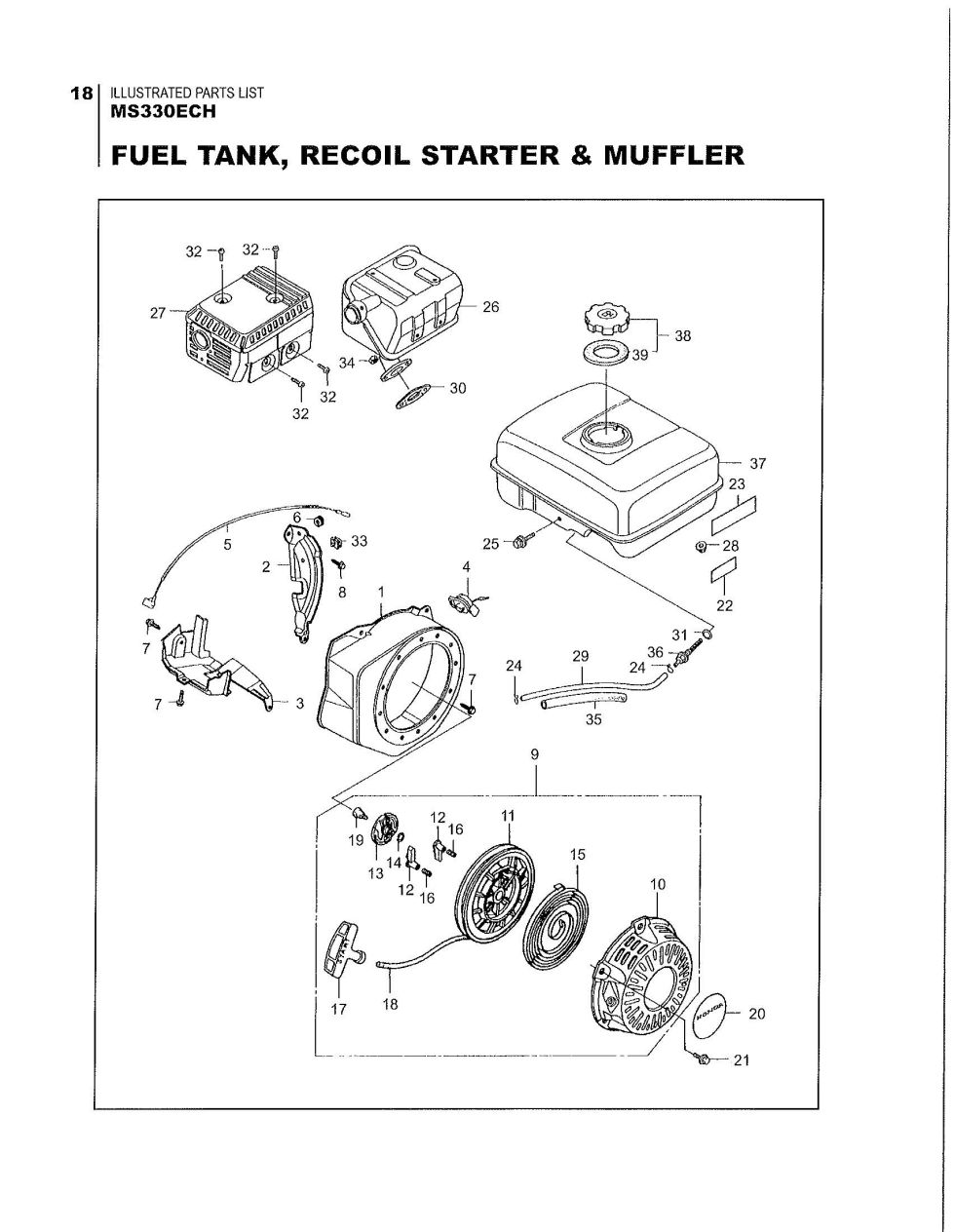

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS330ECH. You have selected the Fuel Tank, Recoil Starter, Muffler diagram for the Maruyama MS330ECH Piston Pumps. Below you will find an interactive part diagram for the MS330ECH Fuel Tank, Recoil Starter, Muffler. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS330ECH parts not shown in this diagram you may select from one of the other MS330ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 620848 620848 - FAN COVER COMP
$122.99
2 625238 625238 - SLIDE PLATE
$21.99
3 625239 625239 - SHROUD COMP
$27.99
4 625240 625240 - STOP SWITCH ASSY.
$38.99
5 620851 620851 - STOP SWITCH CORD
$19.99
6 620852 620852 - GROMMET
$12.99
7 990467 990467 - BOLT
$13.99
8 583762 583762 - FLANGE BOLT
$15.99
9 620853 620853 - RECOIL STARTER ASSY
$143.99
10 620854 620854 - RECOIL STARTER CASE
$116.99
11 620856 620856 - USE: 626448
$63.99
12 620857 620857 - USE: 626449
$22.99
13 620858 620858 - USE: 626450
$19.99
14 620859 620859 - USE: 626451
$13.99
15 620860 620860 - USE: 626452
$46.99
16 620861 620861 - USE: 626453
$11.99
17 620862 620862 - RECOIL STARTER KNOB
$24.99
18 620863 620863 - USE: 626455
$29.99
19 620864 620864 - USE: 626456
$14.99
20 620865 620865 - USE: 416071
$20.99
21 586568 586568 - USE: 626609
$2.99
22 625241 625241 - DECAL
$11.99
23 620847 620847 - DECAL
$13.99
24 990499 990499 - TUBE CLIP
$2.99
25 583796 583796 - FLANGE BOLT
$2.99
26 620866 620866 - MUFFLER ASSY
$108.99
27 620867 620867 - MUFFLER PROTECTOR
$105.99
28 990487 990487 - NUT
$2.99
29 583795 583795 - FUEL TUBE
$6.99
30 620868 620868 - MUFFLER GASKET
$16.99
31 583794 583794 - O-RING
$12.99
32 583785 583785 - TAPPING SCREW
$5.99
33 625242 625242 - CLIP
$7.99
34 583787 583787 - NUT
$2.99
35 620869 620869 - SUPPORTER RUBBER
$13.99
36 583789 583789 - FUEL TANK JOINT
$20.99
37 620870 620870 - FUEL TANK COMP
$121.99
38 620871 620871 - NLA FUEL FILLER CAP
$29.99
39 620872 620872 - PACKING
$15.99
