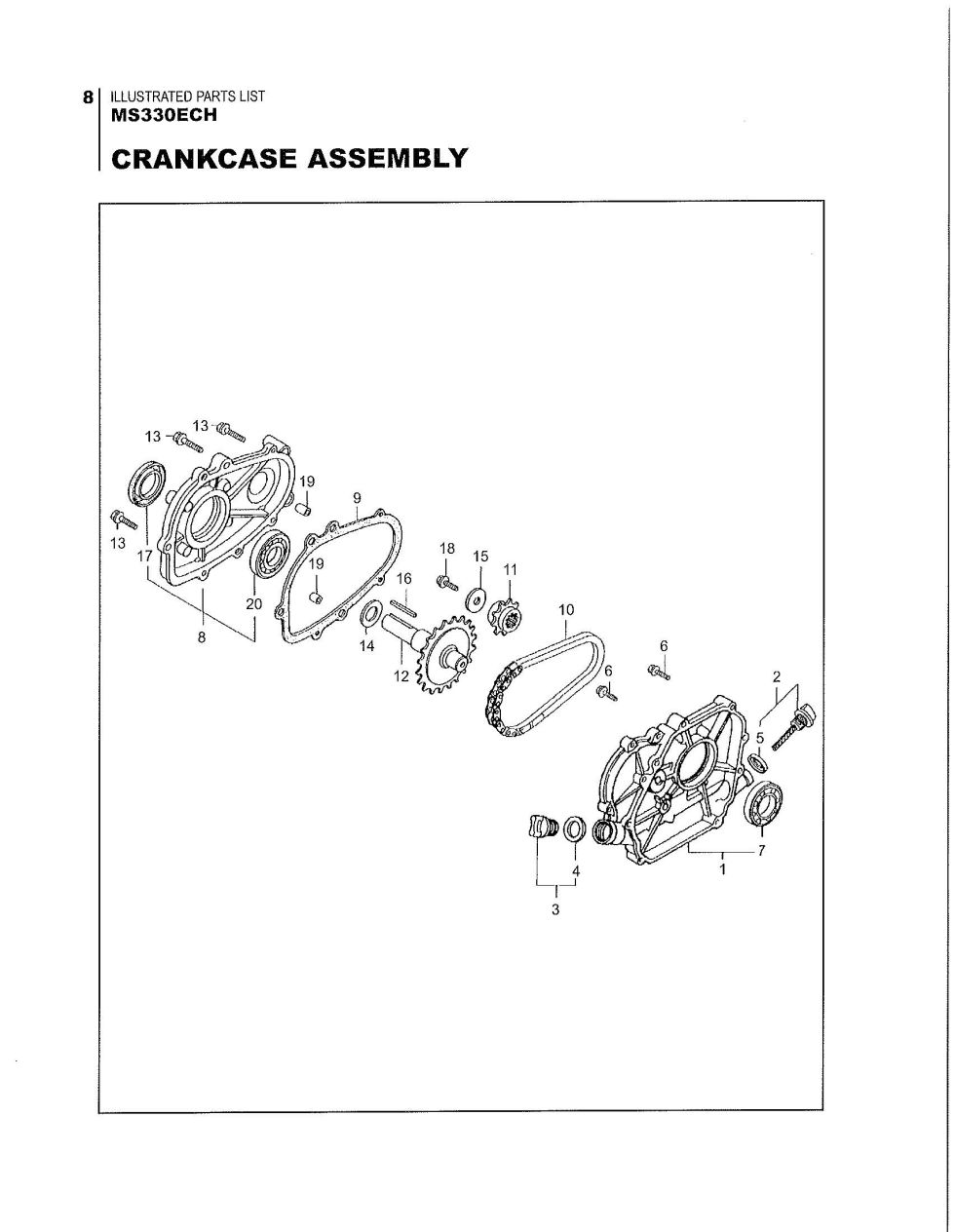

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS330ECH. You have selected the Crankcase Assembly diagram for the Maruyama MS330ECH Piston Pumps. Below you will find an interactive part diagram for the MS330ECH Crankcase Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS330ECH parts not shown in this diagram you may select from one of the other MS330ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 620742 | 620742 - CRANKCASE COVER ASSY |
$117.99
|
|
| 2 | 620744 | 620744 - OIL FILLTE CAP ASSY |
$30.99
|
|
| 3 | 620745 | 620745 - OIL FILLER CAP ASSY |
$28.99
|
|
| 4 | 620747 | 620747 - OIL FILLTER CAP PACK |
$19.99
|
|
| 6 | 998198 | 998198 - FLANGE BOLT |
$13.99
|
|
| 7 | 620741 | 620741 - RADIAL BALL BEARING |
$44.99
|
|
| 8 | 583672 | 583672 - CHAIN CASE COVER ASS |
$215.99
|
|
| 9 | 620748 | 620748 - CHAIN CASE COVER PAC |
$18.99
|
|
| 10 | 620749 | 620749 - CHAIN |
$26.99
|
|
| 11 | 620760 | 620760 - DRIVE SPROCKET |
$47.99
|
|
| 12 | 620761 | 620761 - P.T.O. SHAFT |
$117.99
|
|
| 14 | 583677 | 583677 - THRUST SPRING |
$11.99
|
|
| 15 | 583679 | 583679 - WASHER |
$12.99
|
|
| 16 | 620762 | 620762 - KEY |
$18.99
|
|
| 17 | 583663 | 583663 - OIL SEAL |
$20.99
|
|
| 18 | 620763 | 620763 - BOLT |
$2.99
|
|
| 19 | 990497 | 990497 - KNOCK PIN |
$7.99
|
|
| 20 | 583664 | 583664 - RADIAL BALL BEARING |
$36.99
|
