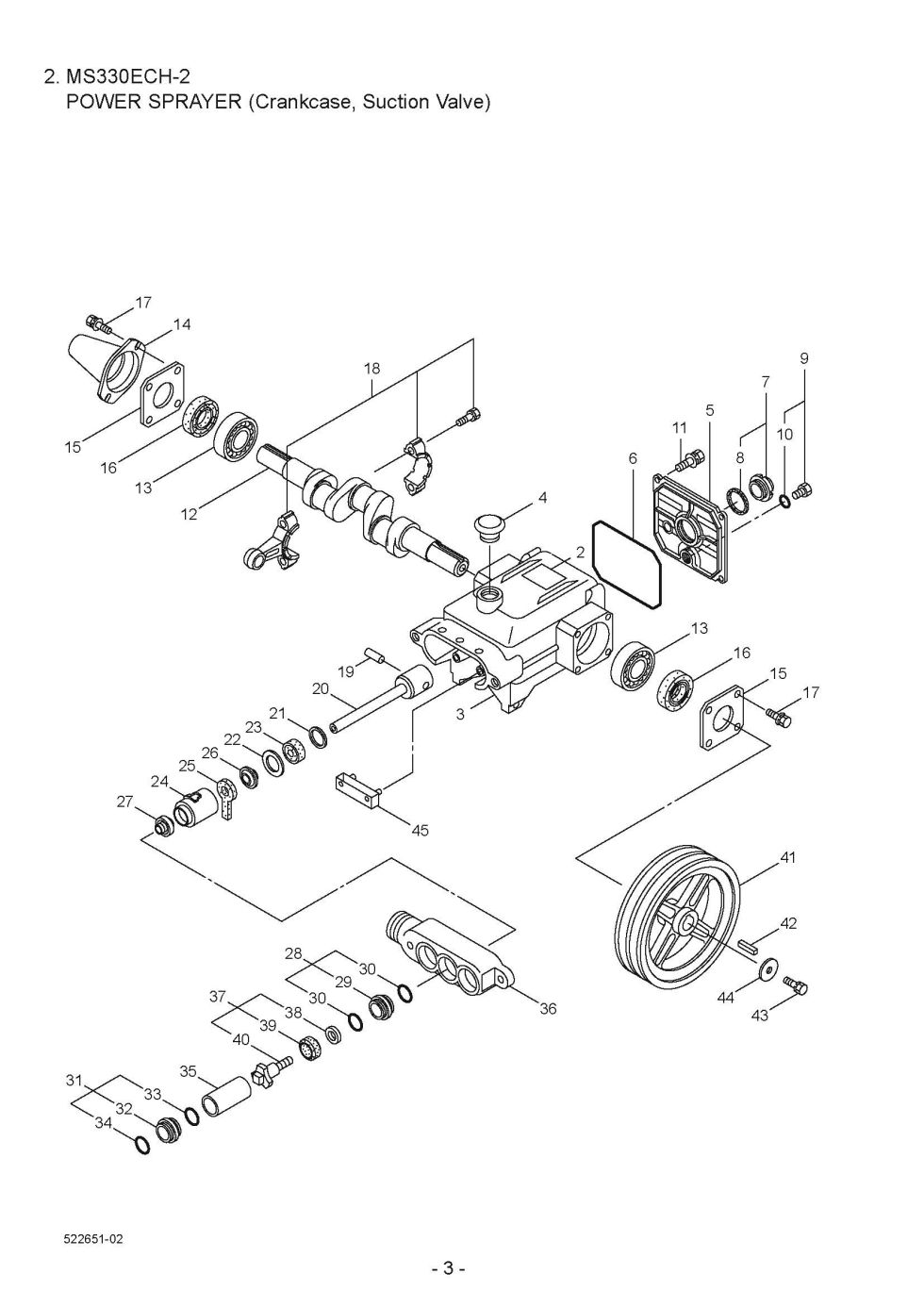

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS330ECH-2. You have selected the Power Sprayer (Crankcase, Suction Valve) diagram for the Maruyama MS330ECH-2 Piston Pumps. Below you will find an interactive part diagram for the MS330ECH-2 Power Sprayer (Crankcase, Suction Valve). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS330ECH-2 parts not shown in this diagram you may select from one of the other MS330ECH-2 part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
2 119691 119691 - LABEL
$2.99
3 118176 118176 - CRANKCASE
$105.99
4 117420 117420 - CAP
$2.99
5 118646 118646 - USE: 830216
$18.99
6 014041 014041 - O-RING
$6.99
7 092241 092241 - OIL GAUGE
$2.99
8 044428 044428 - PACKING
$11.99
9 091376 091376 - PLUG
$2.99
10 023170 023170 - O-RING, DRAIN PLUG
$2.99
11 125824 125824 - BOLT MS253ECKF MS153
$2.99
12 103921 103921 - NLA CRANKSHAFT
$145.99
13 014487 014487 - BEARING
$24.99
14 025130 025130 - SHAFT PROTECTOR
$7.99
15 117424 117424 - PLATE
$14.99
16 117423 117423 - OIL SEAL
$13.99
18 048734 048734 - CONNECTING ROD
$19.99
19 016948 016948 - PISTON PIN
$8.99
20 118183 118183 - NLA PISTON
$35.99
21 126259 126259 - WASHER
$2.99
22 126189 126189 - WASHER
$2.99
23 025461 025461 - OIL SEAL
$5.99
24 027710 027710 - SEAL PACKING RETAINE
$6.99
25 027711 027711 - FELT PACKING
$2.99
26 026853 026853 - PACKING
$2.99
27 100015 100015 - SEAL PACKING
$21.99
28 091109 091109 - ADAPTER (S)
$8.99
29 016957 016957 - PIPE RECEIVER
$5.99
30 015862 015862 - ORING
$2.99
31 091108 091108 - ADAPTER (D)
$10.99
32 022931 022931 - PIPE RECEIVER
$14.99
34 023172 023172 - O-RING (P22)
$2.99
35 022929 022929 - CYLINDER PIPE
$38.99
36 027713 027713 - DISCHARGE MANIFOLD
$186.99
37 620661 620661 - INLET VALVE ASS'Y
$23.99
38 124277 124277 - INLET VALVE SEAT
$2.99
39 116121 116121 - PISTON PACKING
$34.99
40 118628 118628 - PISTON RETAINER
$11.99
41 100837 100837 - V-PULLEY
$89.99
42 014543 014543 - KEY
$8.99
43 126258 126258 - HEX, HEAD SCREW
$2.99
44 126198 126198 - WASHER
$2.99
45 027712 027712 - OIL PAN
$5.99
