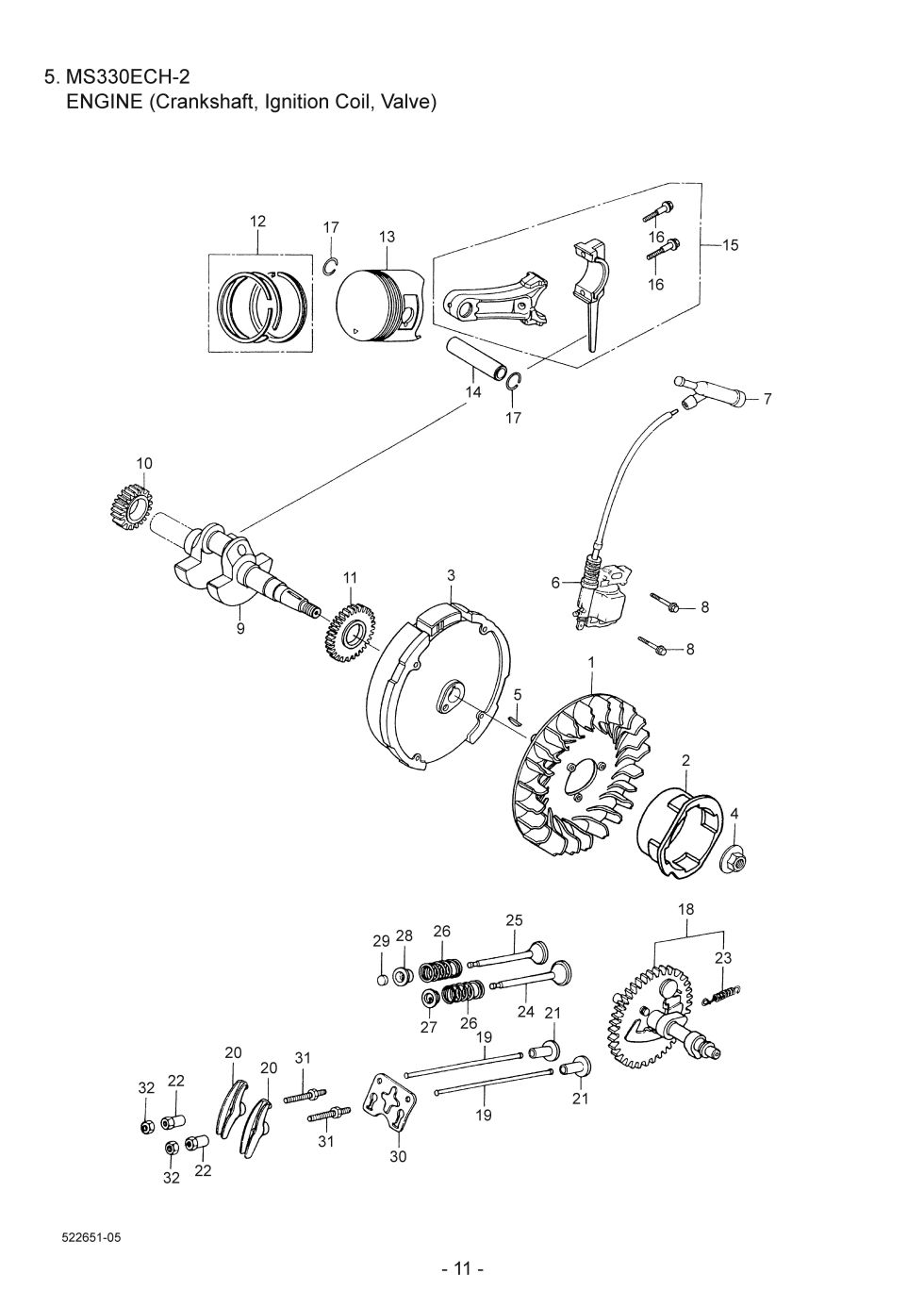

Engine (Crankshaft, Ignition Coil, Valve)

Engine (Crankshaft, Ignition Coil, Valve)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS330ECH-2. You have selected the Engine (Crankshaft, Ignition Coil, Valve) diagram for the Maruyama MS330ECH-2 Piston Pumps. Below you will find an interactive part diagram for the MS330ECH-2 Engine (Crankshaft, Ignition Coil, Valve). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS330ECH-2 parts not shown in this diagram you may select from one of the other MS330ECH-2 part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 620764 620764 - COOLING FAN
$73.99
2 620765 620765 - USE: 626385
$49.99
3 625231 625231 - FLYWHEEL ASSY
$143.99
4 583685 583685 - SPECIAL NUT
$22.99
5 583686 583686 - SPECIAL WOODRUFF KEY
$18.99
6 625232 625232 - IGNITION COIL ASSY
$117.99
7 625233 625233 - CAP ASSY.
$39.99
8 998214 998214 - FLANGE BOLT
$13.99
9 620769 620769 - CRANKSHAFT ASSY
$241.99
10 620770 620770 - TIMING GEAR
$37.99
11 620771 620771 - GOVERNOT DRIVE GEAR
$27.99
12 620772 620772 - PISTON RING SET
$67.99
13 620773 620773 - PISTON
$78.99
14 620774 620774 - PISTON PIN
$27.99
15 620775 620775 - CONNECTING ROD ASSY
$176.99
16 583696 583696 - USE: 626357
$8.99
17 620776 620776 - PISTON PIN CLIP
$2.99
18 620777 620777 - CAMSHAFT ASSY
$211.99
19 620818 620818 - PUSH ROD
$29.99
20 583700 583700 - USE: 626348
$16.99
21 625234 625234 - LIFTER, MACHINED DIS
$26.99
22 583702 583702 - ROCKER ARM PIVOT
$17.99
23 583703 583703 - USE: 625925
$5.99
24 620819 620819 - INLET VALVE
$51.99
26 620821 620821 - SPRING, MACHINED DIS
$6.99
27 583707 583707 - USE: 626351
$16.99
28 583708 583708 - USE: 626352
$16.99
29 583709 583709 - USE: 626353
$10.99
30 620822 620822 - PUSH ROD GUIDE PLATE
$19.99
31 583711 583711 - USE: 625938
$19.99
32 583712 583712 - PIVOT ADJUSTING NUT
$10.99
