Pressure Regulator Valve

Pressure Regulator Valve

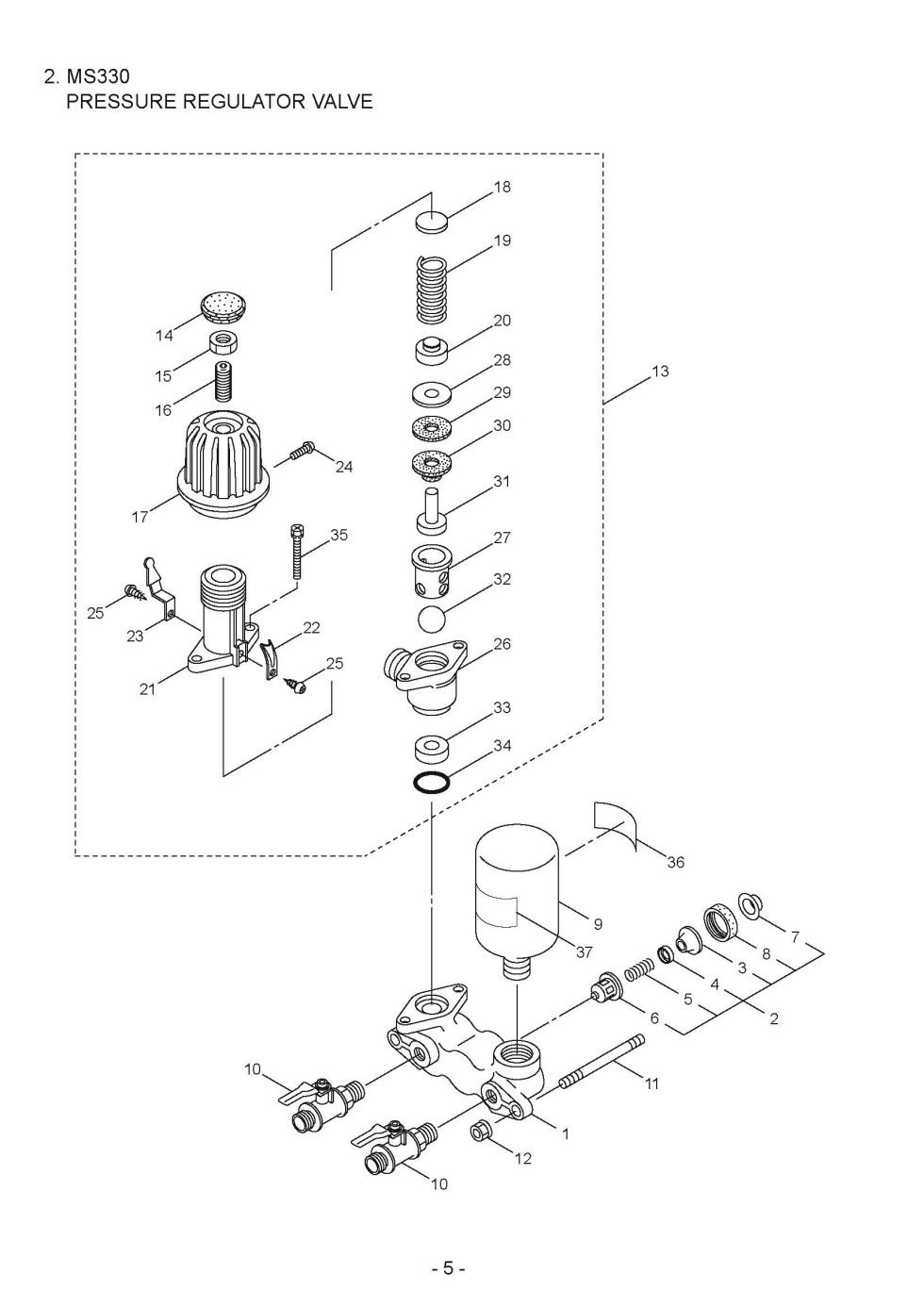

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS330. You have selected the Pressure Regulator Valve diagram for the Maruyama MS330 Piston Pumps. Below you will find an interactive part diagram for the MS330 Pressure Regulator Valve. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS330 parts not shown in this diagram you may select from one of the other MS330 part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 118409 118409 - DISCHARGE MANIFOLD
$67.99
2 105510 105510 - DISCHARGE VALVE ASSY
$28.99
3 105511 105511 - SEAT, MACHINED DISC
$16.99
4 022842 022842 - DISCHARGE VALVE
$7.99
5 022031 022031 - DISCHARGE VALVE SPRI
$2.99
6 105512 105512 - SPRING RETAINER, MAC
$12.99
7 105513 105513 - PACKING RING
$2.99
8 105514 105514 - VALVE CASE
$2.99
9 117813 117813 - AIR CHAMBER
$60.99
10 117609 117609 - COCK ASSY
$27.99
11 127331 127331 - STUD BOLT
$8.99
12 126201 126201 - HEX, FANGE NUT
$2.99
13 123042 123042 - PRESSURE REGULATOR V
$174.99
14 105518 105518 - CAP
$2.99
15 126195 126195 - NUT
$2.99
16 088975 088975 - HEX SOCKET HEAD SCRE
$5.99
17 118662 118662 - GRIP
$23.99
18 126196 126196 - P R VALVE SPRING SEA
$205.99
19 105520 105520 - COIL SPRING
$5.99
20 105521 105521 - SPRING RETAINER
$2.99
21 117448 117448 - CASE
$16.99
22 117440 117440 - PLATE
$2.99
23 105524 105524 - PRESSURE INDICATOR
$2.99
24 089899 089899 - SCREW M4X14
$2.99
25 126855 126855 - TAPPING SCREW
$2.99
26 118237 118237 - PRESSURE RELIEF VALV
$25.99
27 012256 012256 - P R VALVE SACK
$9.99
28 012255 012255 - P R VALVE BELLOWS WA
$2.99
29 101922 101922 - BELLOWS PACKING
$12.99
30 060555 060555 - BELLOWS (VITON)
$16.99
31 016975 016975 - P R ROD VALVE
$5.99
32 107238 107238 - VALVE BALL
$16.99
33 117443 117443 - VALVE SEAT
$6.99
34 014179 014179 - O-RING, VALVE BODY
$11.99
35 126197 126197 - BOLT
$2.99
