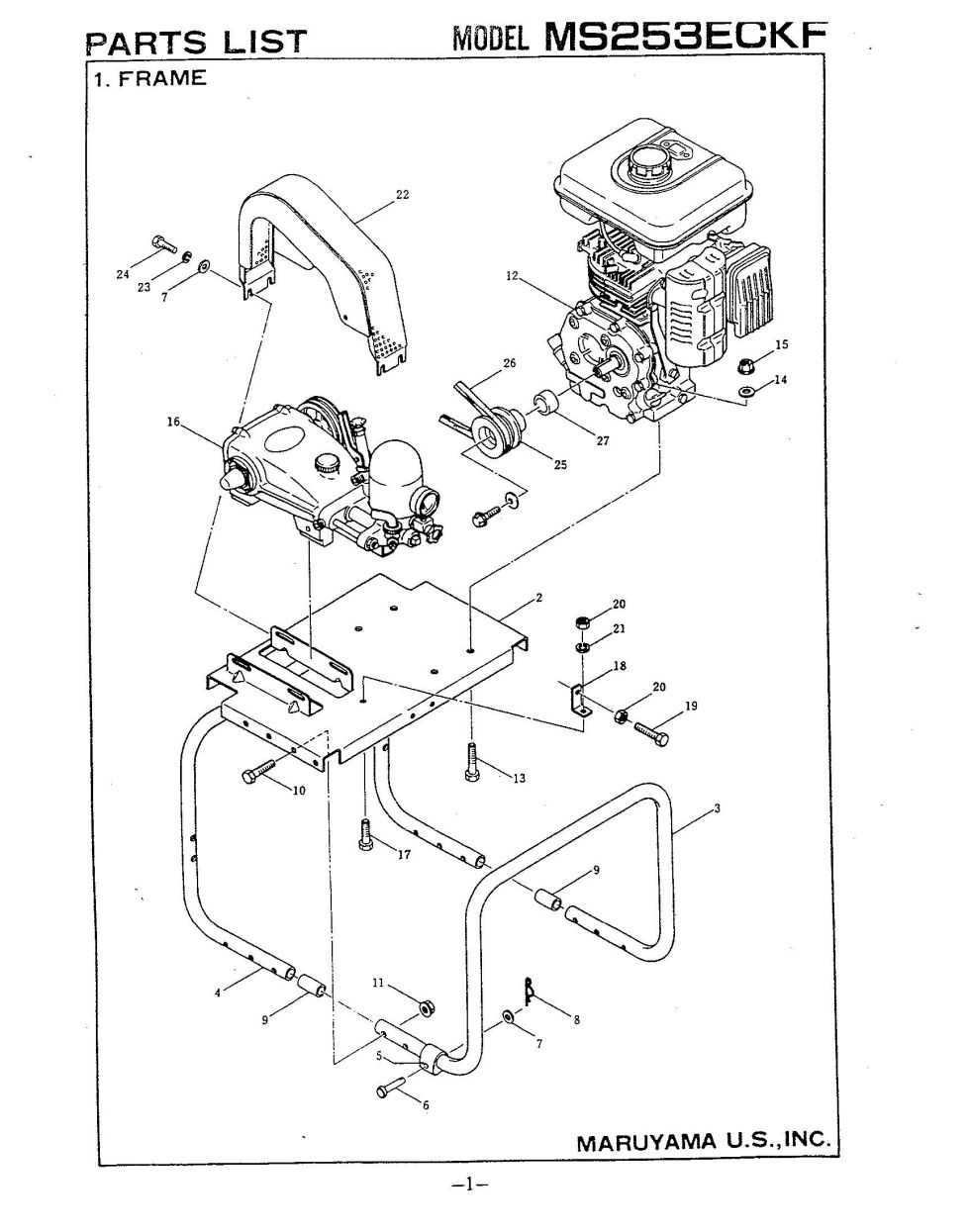

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS253ECKF. You have selected the Frame diagram for the Maruyama MS253ECKF Piston Pumps. Below you will find an interactive part diagram for the MS253ECKF Frame. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS253ECKF parts not shown in this diagram you may select from one of the other MS253ECKF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 107534 | 107534 - NLA SETTING BASE |
$46.99
|
|
| 3 | 054478 | 054478 - PUMP FRAME (A) |
$109.99
|
|
| 4 | 054479 | 054479 - PUMP FRAME (B) |
$111.99
|
|
| 5 | 054468 | 054468 - BUMPER RUBBER |
$7.99
|
|
| 6 | 054469 | 054469 - PIN |
$2.99
|
|
| 7 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
| 8 | 065049 | 065049 - SNAP PIN |
$2.99
|
|
| 9 | 054105 | 054105 - COLLAR |
$6.99
|
|
| 10 | 080138 | 080138 - BOLT |
$2.99
|
|
| 11 | 101804 | 101804 - NLA HEX FLANGE NUT ( |
$2.99
|
|
| 12 | 107578 | 107578 - NLA ENGINE-FG150 |
$874.99
|
|
| 13 | 080133 | 080133 - BOLT M8X35X22 |
$2.99
|
|
| 14 | 014065 | 014065 - WASHER M8 |
$2.99
|
|
| 16 | 107585 | 107585 - NLA PUMP-MS253 |
$1225.99
|
|
| 17 | 080126 | 080126 - BOLT |
$2.99
|
|
| 18 | 054928 | 054928 - BELT TENSION PLATE |
$7.99
|
|
| 19 | 080178 | 080178 - BOLT M8X60 |
$2.99
|
|
| 21 | 015845 | 015845 - SPRING WASHER |
$2.99
|
|
| 22 | 101653 | 101653 - NLA BELT COVER |
$55.99
|
|
| 23 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 24 | 082098 | 082098 - BOLT M6X16 |
$2.99
|
|
| 25 | 107535 | 107535 - NLA V-PULLEY |
$51.99
|
|
| 26 | 028862 | 028862 - V-BELT |
$22.99
|
|
| 27 | 106402 | 106402 - NLA COLLAR |
$16.99
|
