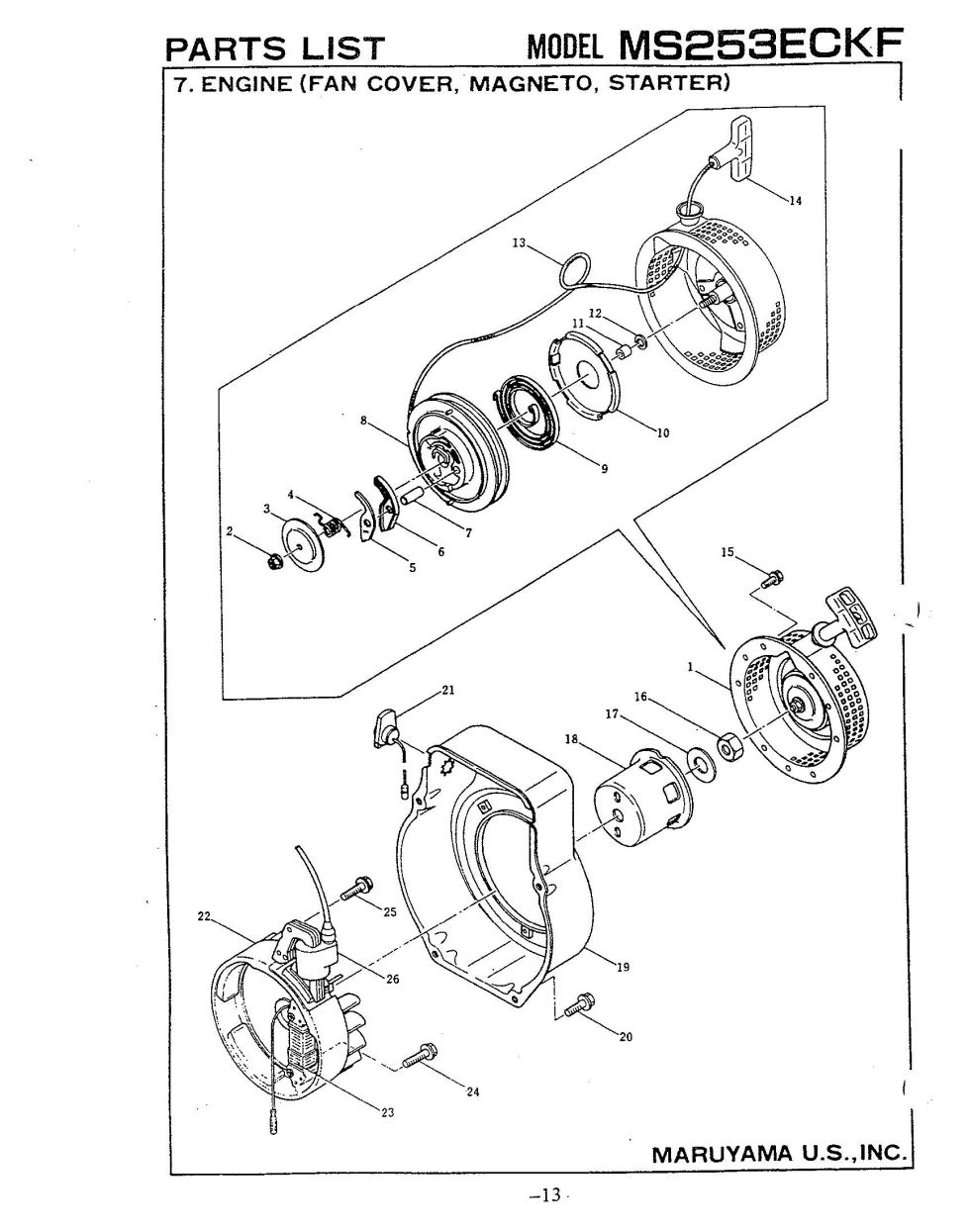

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS253ECKF. You have selected the Engine (Fan Cover, Magneto, Starter) diagram for the Maruyama MS253ECKF Piston Pumps. Below you will find an interactive part diagram for the MS253ECKF Engine (Fan Cover, Magneto, Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS253ECKF parts not shown in this diagram you may select from one of the other MS253ECKF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
-01.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 944967 | 944967 - RECOIL STARTER |
$119.99
|
|
| 2 | 944968 | 944968 - NLA NUT |
$2.99
|
|
| 3 | 944969 | 944969 - NLA RETAINER COVER |
$11.99
|
|
| 4 | 944970 | 944970 - NLA SPRING |
$9.99
|
|
| 5 | 944971 | 944971 - USE: 583972 |
$2.99
|
|
| 6 | 944972 | 944972 - NLA PAWL-RECOIL |
$9.99
|
|
| 7 | 944973 | 944973 - NLA PIN |
$5.99
|
|
| 8 | 944974 | 944974 - REEL RECOIL |
$54.99
|
|
| 9 | 944975 | 944975 - NLA SPRING RECOIL |
$24.99
|
|
| 10 | 944976 | 944976 - NLA CSE-SPRING |
$16.99
|
|
| 11 | 944977 | 944977 - WASHER |
$12.99
|
|
| 12 | 944978 | 944978 - NLA WASHER THRUST |
$6.99
|
|
| 13 | 944979 | 944979 - ROPE |
$17.99
|
|
| 14 | 944981 | 944981 - BOLT |
$2.99
|
|
| 16 | 944982 | 944982 - NUT |
$2.99
|
|
| 18 | 944984 | 944984 - PULLEY |
$18.99
|
|
| 19 | 944985 | 944985 - CASE SPIRAL |
$73.99
|
|
| 21 | 944986 | 944986 - STOP SWITCH |
$20.99
|
|
| 22 | 944987 | 944987 - NLA FLYWHEEL |
$166.99
|
|
| 23 | 944988 | 944988 - NLA LIGHTING COIL |
$36.99
|
|
| 24 | 944989 | 944989 - BOLT |
$2.99
|
|
| 25 | 944990 | 944990 - NLA BOLT |
$2.99
|
|
| 26 | 944991 | 944991 - NLA INITION COIL |
$85.99
|
