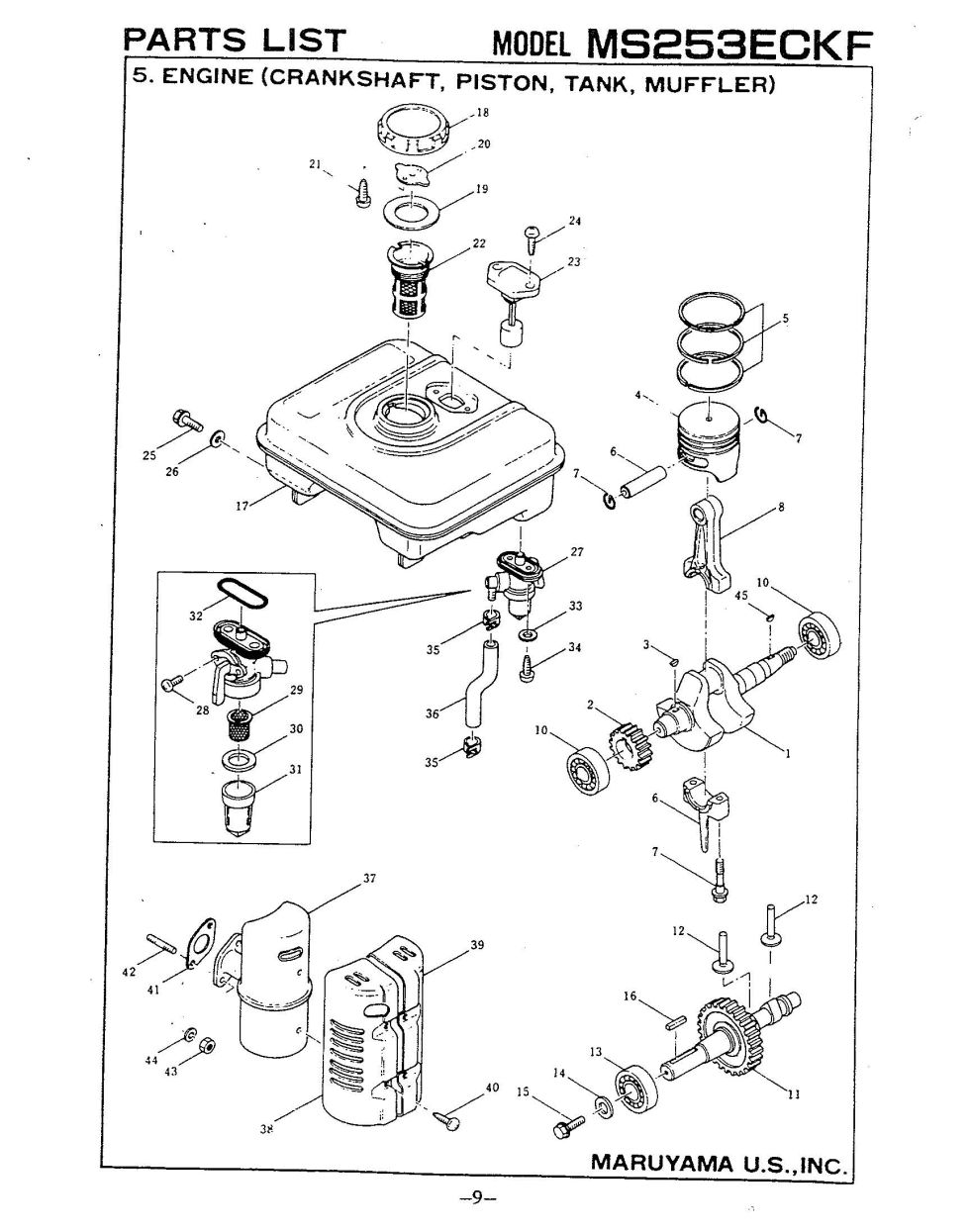

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS253ECKF. You have selected the Engine (Crankshaft, Piston, Tank, Muffler) diagram for the Maruyama MS253ECKF Piston Pumps. Below you will find an interactive part diagram for the MS253ECKF Engine (Crankshaft, Piston, Tank, Muffler). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS253ECKF parts not shown in this diagram you may select from one of the other MS253ECKF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 944916 944916 - CRANK SHAFT ASSY
$247.99
2 944886 944886 - GEAR, CRANK
$43.99
3 071919 071919 - WOODRUFF KEY
$7.99
4 944887 944887 - NLA PISTON
$30.99
5 944888 944888 - PISTON RING SET
$52.99
6 944889 944889 - NLA PISTON PIN
$11.99
7 071914 071914 - SNAP PIN
$2.99
8 944890 944890 - CONNECTING ROD
$106.99
10 071896 071896 - BALL BEARING
$25.99
11 944892 944892 - NLA CAM GEAR ASSY
$149.99
12 071935 071935 - TAPPET
$22.99
14 071932 071932 - PULLEY WASHER
$2.99
15 944893 944893 - NLA BOLT
$2.99
16 071931 071931 - KEY
$7.99
17 944894 944894 - NLA FUEL TANK ASSY()
$93.99
18 944895 944895 - NLA TANK CAP ASSY
$28.99
19 944896 944896 - NLA GASKET
$2.99
20 944897 944897 - SPRING
$7.99
21 944898 944898 - SCREW
$2.99
22 944899 944899 - FUEL STRAINER
$14.99
23 944900 944900 - NLA FUEL GAUGE
$19.99
24 944901 944901 - USE: 584753
$2.99
25 944902 944902 - BOLT
$2.99
26 944442 944442 - WASHER
$2.99
27 944903 944903 - USE: 999346
$34.99
28 944904 944904 - SCREW
$2.99
29 944905 944905 - STRAINER
$9.99
30 944906 944906 - NLA GASKET
$2.99
31 944907 944907 - FILTER POT
$12.99
32 944908 944908 - NLA O-RING
$2.99
33 944878 944878 - NLA WASHER
$2.99
35 944909 944909 - CLIP
$2.99
36 944910 944910 - NLA TUBE
$2.99
37 944911 944911 - USE: 583965
$69.99
38 944912 944912 - MUFFLER COVER
$28.99
39 944913 944913 - COVER, MUFFLER
$26.99
40 944860 944860 - SCREW
$2.99
41 071878 071878 - GASKET
$5.99
42 944914 944914 - NLA STUD
$2.99
43 944915 944915 - NLA NUT
$2.99
44 901545 901545 - USE: 12502
$2.99
