Pump Assembly

Pump Assembly

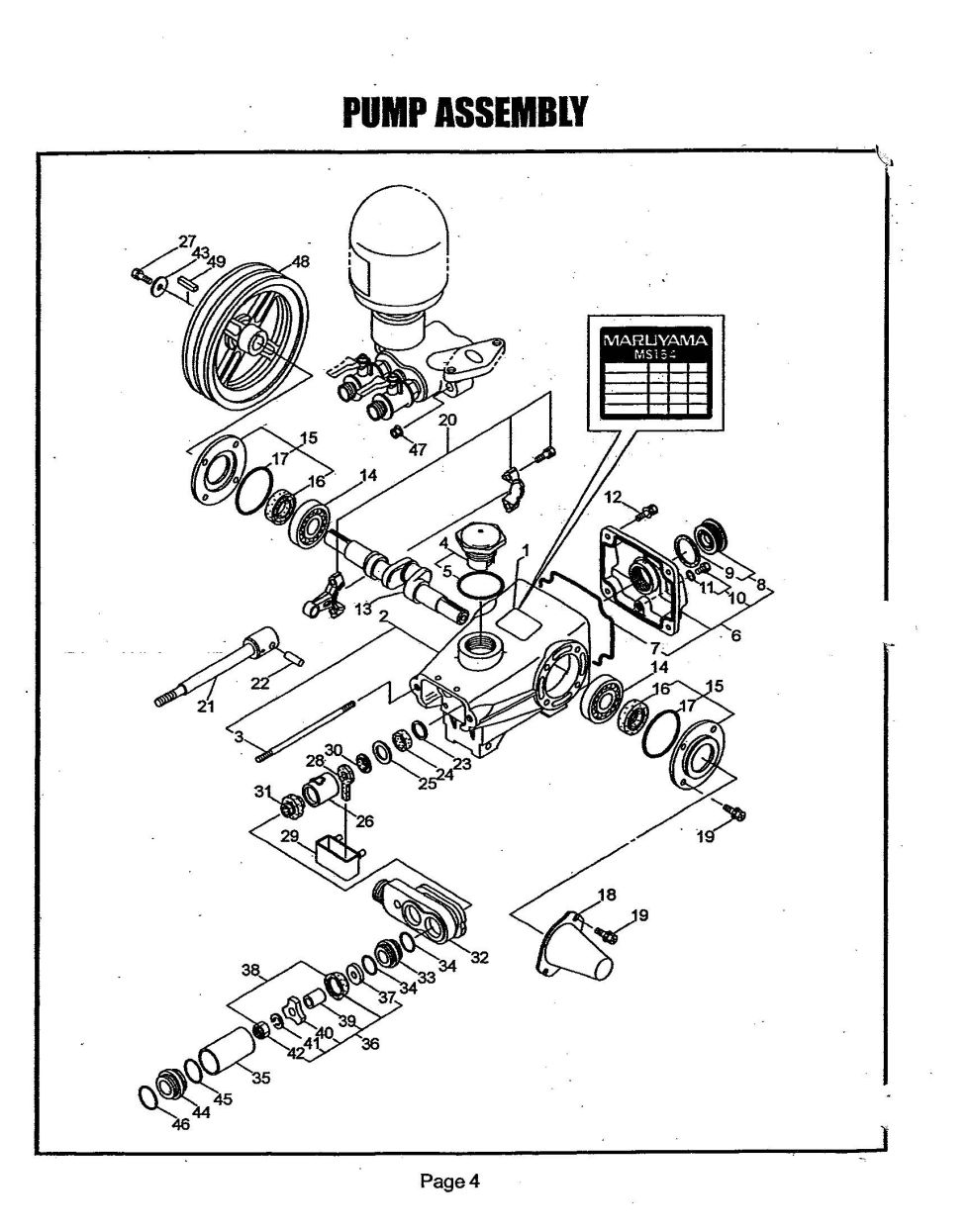

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS154EMH. You have selected the Pump Assembly diagram for the Maruyama MS154EMH Piston Pumps. Below you will find an interactive part diagram for the MS154EMH Pump Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS154EMH parts not shown in this diagram you may select from one of the other MS154EMH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 120406 120406 - LABEL
$2.99
2 120407 120407 - CRANKCASE
$197.99
3 014051 014051 - STUD
$15.99
4 091264 091264 - OIL FILLER CAP
$16.99
5 014177 014177 - O RING
$2.99
6 120409 120409 - CRANKCASE REAR COVER
$32.99
7 106963 106963 - O-RING
$5.99
8 092241 092241 - OIL GAUGE
$2.99
9 044428 044428 - PACKING
$11.99
10 091376 091376 - PLUG
$2.99
11 023170 023170 - O-RING, DRAIN PLUG
$2.99
12 092519 092519 - BOLT
$2.99
13 103383 103383 - CRANKCASE
$200.99
14 014487 014487 - BEARING
$24.99
15 091581 091581 - OIL SEAL CASE ASSY.
$23.99
16 024159 024159 - OIL SEAL
$7.99
17 026536 026536 - O-RING, OIL SEAL CAS
$2.99
18 025130 025130 - SHAFT PROTECTOR
$7.99
20 116931 116931 - CONNECTING ROD
$81.99
21 120417 120417 - PISTON ROD
$57.99
22 016948 016948 - PISTON PIN
$8.99
23 020017 020017 - WASHER
$2.99
24 025461 025461 - OIL SEAL
$5.99
25 026854 026854 - WASHER
$2.99
26 028033 028033 - SEAL PACKING RETAINE
$7.99
27 092521 092521 - HEX, HEAD SCREW
$2.99
28 027711 027711 - FELT PACKING
$2.99
29 028034 028034 - OIL PAN
$2.99
30 026853 026853 - PACKING
$2.99
31 100015 100015 - SEAL PACKING
$21.99
32 028035 028035 - CYLINDER MANIFOLD
$211.99
33 016957 016957 - PIPE RECEIVER
$5.99
34 015862 015862 - ORING
$2.99
35 022929 022929 - CYLINDER PIPE
$38.99
36 629356 629356 - INLET VALVE ASSY.
$35.99
37 014122 014122 - SUCTION VALVE SEAT
$11.99
38 632586 632586 - PISTON PACKING SET
$34.99
39 027499 027499 - SUCTION VALVE COLLAR
$8.99
40 027500 027500 - SUCTION VALVE STOPPE
$2.99
41 015849 015849 - SPRING WASHER M6
$2.99
42 046365 046365 - NYLON NUT
$2.99
43 100836 100836 - USE: 126198
$2.99
44 022931 022931 - PIPE RECEIVER
$14.99
46 023172 023172 - O-RING (P22)
$2.99
47 101804 101804 - NLA HEX FLANGE NUT (
$2.99
48 100837 100837 - V-PULLEY
$89.99
49 014543 014543 - KEY
$8.99
