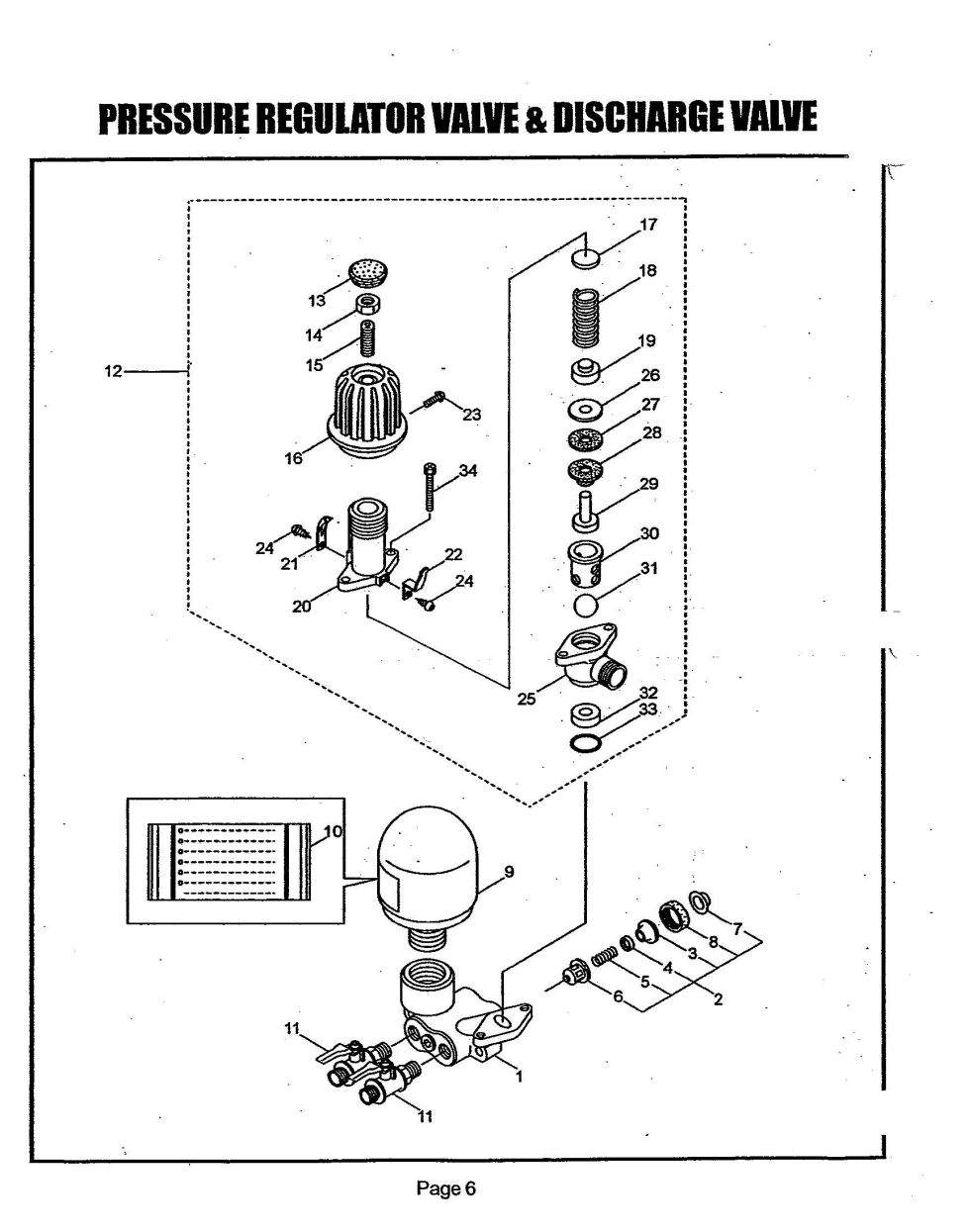

Pressure Regulator and Discharge Valves

Pressure Regulator and Discharge Valves

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS154EMH. You have selected the Pressure Regulator and Discharge Valves diagram for the Maruyama MS154EMH Piston Pumps. Below you will find an interactive part diagram for the MS154EMH Pressure Regulator and Discharge Valves. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS154EMH parts not shown in this diagram you may select from one of the other MS154EMH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 120421 120421 - DISCHARGE MANIFOLD
$120.99
2 105510 105510 - DISCHARGE VALVE ASSY
$28.99
3 105511 105511 - SEAT, MACHINED DISC
$16.99
4 022842 022842 - DISCHARGE VALVE
$7.99
5 022031 022031 - DISCHARGE VALVE SPRI
$2.99
6 105512 105512 - SPRING RETAINER, MAC
$12.99
7 105513 105513 - PACKING RING
$2.99
8 105514 105514 - VALVE CASE
$2.99
9 107752 107752 - AIR CHAMBER
$105.99
10 108465 108465 - LABEL
$2.99
11 117609 117609 - COCK ASSY
$27.99
12 118236 118236 - PRESSURE REGULATOR V
$106.99
13 105518 105518 - CAP
$2.99
14 084015 084015 - NUT M10
$2.99
15 088975 088975 - HEX SOCKET HEAD SCRE
$5.99
16 118662 118662 - GRIP
$23.99
17 019917 019917 - P R VALVE SPRING SEA
$6.99
18 105520 105520 - COIL SPRING
$5.99
19 105521 105521 - SPRING RETAINER
$2.99
20 117448 117448 - CASE
$16.99
21 117440 117440 - PLATE
$2.99
22 117441 117441 - INDICATOR
$2.99
23 089899 089899 - SCREW M4X14
$2.99
24 082744 082744 - SCREW M4X6
$2.99
25 118237 118237 - PRESSURE RELIEF VALV
$25.99
26 012255 012255 - P R VALVE BELLOWS WA
$2.99
27 016972 016972 - P R VALVE BELLOWS PA
$2.99
28 011451 011451 - P R VALVE BELLOWS
$8.99
29 016975 016975 - P R ROD VALVE
$5.99
30 012256 012256 - P R VALVE SACK
$9.99
31 107238 107238 - VALVE BALL
$16.99
32 117443 117443 - VALVE SEAT
$6.99
33 014179 014179 - O-RING, VALVE BODY
$11.99
34 118610 118610 - NLA BOLT (M6X55)
$2.99
