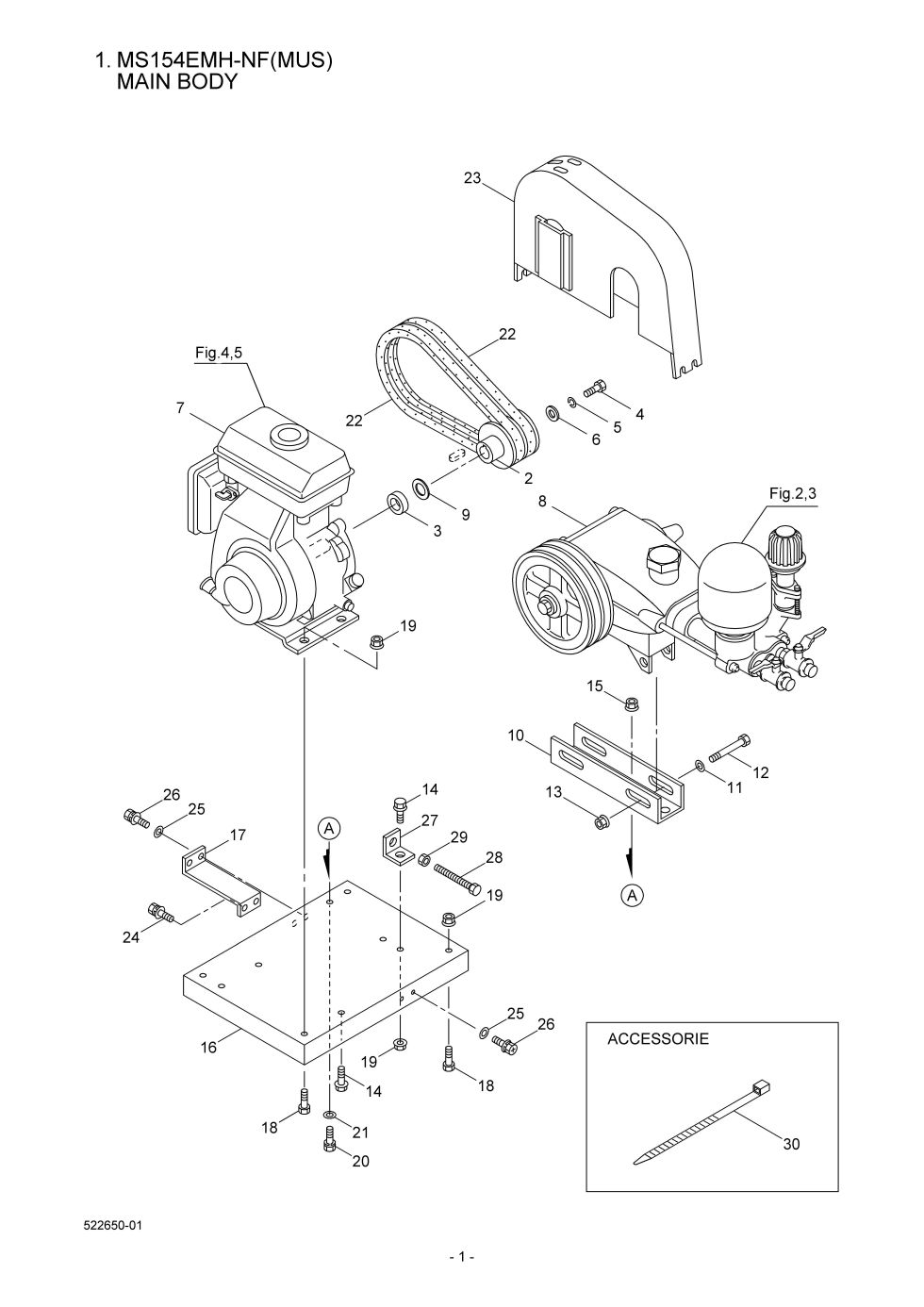

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS154EMH-NF. You have selected the Main Body diagram for the Maruyama MS154EMH-NF Piston Pumps. Below you will find an interactive part diagram for the MS154EMH-NF Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS154EMH-NF parts not shown in this diagram you may select from one of the other MS154EMH-NF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 544341 | 544341 - V-PULLEY |
$67.99
|
|
| 3 | 113554 | 113554 - COLLAR |
$25.99
|
|
| 4 | 082110 | 082110 - BOLT M6X30 |
$2.99
|
|
| 5 | 126568 | 126568 - SPRING WASHER |
$2.99
|
|
| 6 | 022908 | 022908 - WASHER |
$2.99
|
|
| 7 | 546906 | 546906 - ENGINE- HONDA GX100S |
$768.99
|
|
| 9 | 022901 | 022901 - WASHER |
$2.99
|
|
| 10 | 540585 | 540585 - RAIL |
$25.99
|
|
| 11 | 014065 | 014065 - WASHER M8 |
$2.99
|
|
| 12 | 080190 | 080190 - HEX BOLT |
$2.99
|
|
| 13 | 101804 | 101804 - NLA HEX FLANGE NUT ( |
$2.99
|
|
| 17 | 542133 | 542133 - STAY |
$14.99
|
|
| 18 | 080129 | 080129 - BOLT |
$2.99
|
|
| 20 | 092521 | 092521 - HEX, HEAD SCREW |
$2.99
|
|
| 22 | 023051 | 023051 - V-BELT |
$10.80
|
|
| 23 | 542333 | 542333 - BELT COVER |
$77.99
|
|
| 24 | 817004 | 817004 - BOLT |
$2.99
|
|
| 25 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
| 26 | 092519 | 092519 - BOLT |
$2.99
|
|
| 27 | 054928 | 054928 - BELT TENSION PLATE |
$7.99
|
|
| 28 | 549754 | 549754 - BOLT |
No Longer Available Obsolete. |
|
| 29 | 126521 | 126521 - Nut |
$2.99
|
|
| 30 | 107107 | 107107 - NLA BAND |
$5.99
|
