Engine (Fuel Tank, Fan Cover, And Starter)

Engine (Fuel Tank, Fan Cover, And Starter)

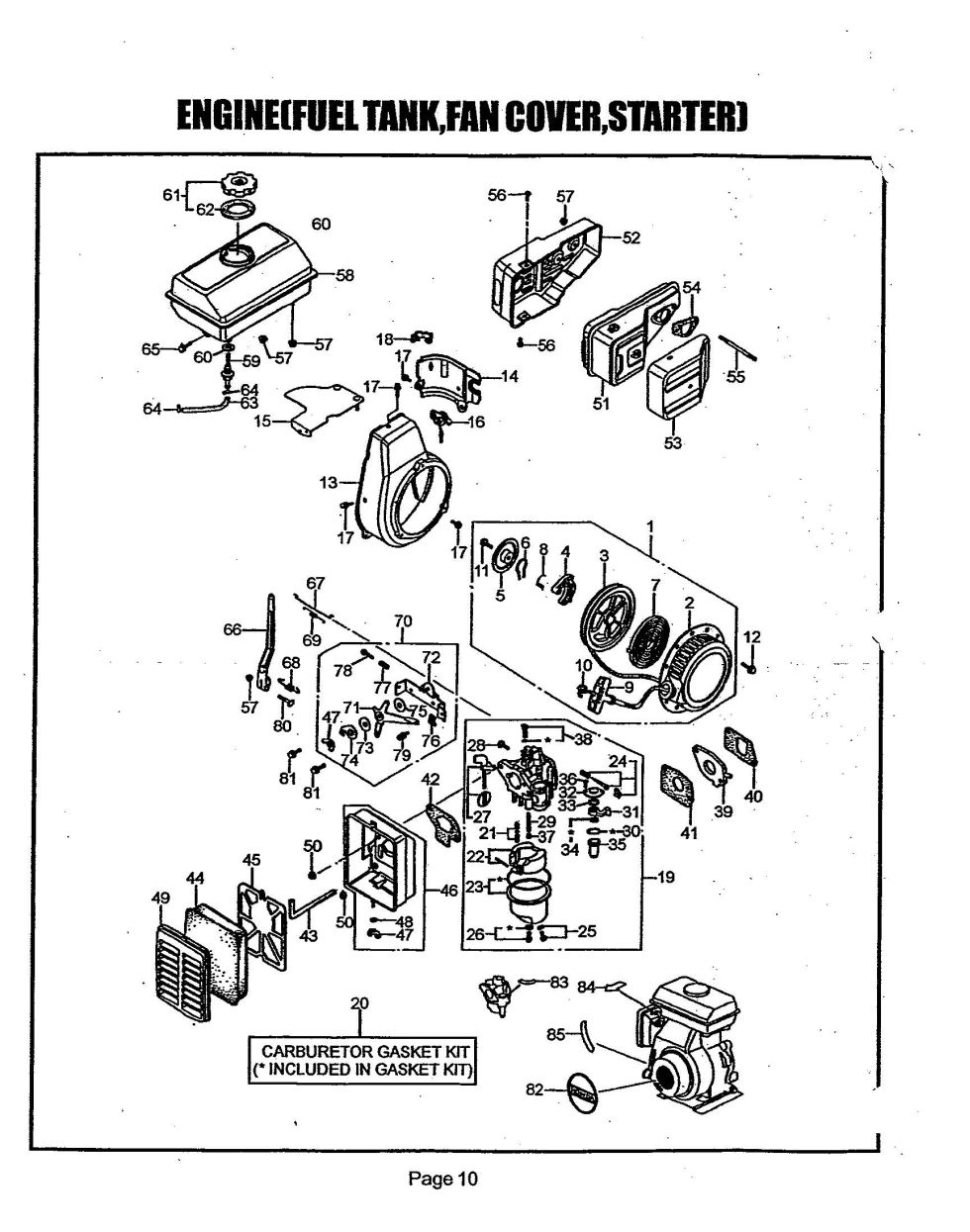

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS154EMH. You have selected the Engine (Fuel Tank, Fan Cover, And Starter) diagram for the Maruyama MS154EMH Piston Pumps. Below you will find an interactive part diagram for the MS154EMH Engine (Fuel Tank, Fan Cover, And Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS154EMH parts not shown in this diagram you may select from one of the other MS154EMH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 622225 622225 - RECOIL STARTER ASSY
$117.99
2 622226 622226 - NLA RECOIL STARTER C
$143.99
3 622227 622227 - RECOIL STARTER ASSY.
$48.99
4 599630 599630 - STARTER RATCHET
$17.99
5 990445 990445 - FRICTION PLATE
$16.99
6 990446 990446 - FRICTION SPRING
$18.99
7 599631 599631 - RECOIL STARTER SPRIN
$31.99
8 990448 990448 - RETURN SPRING
$10.99
9 620862 620862 - RECOIL STARTER KNOB
$24.99
10 632717 632717 - RECOIL STARTER ROPE
$30.99
11 632718 632718 - BOLT
$2.99
12 626609 626609 - FLANGE BOLT
$2.99
13 632719 632719 - FAN COVER COMP.
$112.99
14 998222 998222 - SHROUD
$33.99
15 632720 632720 - TOP COVER
$31.99
16 632721 632721 - ENGINE STOP SWITCH A
$27.99
17 990467 990467 - BOLT
$13.99
18 998223 998223 - TUBE CLIP
$11.99
19 632722 632722 - CARBURETOR ASSY.
$115.99
20 622233 622233 - GASKET SET
$29.99
21 998250 998250 - FLOAT VALVE SET
$45.99
22 998253 998253 - FLOAT SET
$44.99
23 998254 998254 - FLOAT CHAMBER SET
$72.99
24 632788 632788 - SCREW SET
$25.99
25 998255 998255 - DRAIN SCREW SET
$21.99
26 998256 998256 - SCREW SET
$35.99
27 622234 622234 - CHOKE SET
$41.99
28 998258 998258 - THROTTLE STOP SCREW
$29.99
29 632723 632723 - MAIN NOZZLE
$35.99
30 998262 998262 - O-RING
$14.99
31 632724 632724 - LEVER MACHINED DISC
$19.99
32 629366 629366 - SETTING LEVER PLATE
$10.99
33 998265 998265 - COCK LEVER SPRING
$14.99
34 620840 620840 - FUEL COCK PACKING
$12.99
35 998261 998261 - FUEL STRAINER CUP
$30.99
36 998267 998267 - SCREW
$2.99
38 998260 998260 - PILOT JET SET
$43.99
39 622236 622236 - CARBURETOR INSULATOR
$17.99
40 622237 622237 - INSULATOR GASKET
$6.99
41 622238 622238 - CARBURETOR GASKET
$6.99
42 622239 622239 - AIR CLEANER GASKET
$5.99
43 998274 998274 - BREATHER TUBE
$23.99
44 990422 990422 - AIR CLEANER ELEMENT
$21.99
45 990423 990423 - NLA AIR CLEANER GRID
$13.99
46 998272 998272 - AIR CLEANER CASE ASS
$38.99
47 990471 990471 - NUT
$7.99
48 990492 990492 - WASHER
$2.99
49 998275 998275 - NLA AIR CLEANER COVE
$32.99
50 998273 998273 - NLA FLANGE NUT
$2.99
51 998228 998228 - MUFFLER ASSY
$90.99
52 622247 622247 - MUFFLER PROTECTOR
$61.99
53 990433 990433 - MUFFLER SEPERATOR
$29.99
54 622248 622248 - MUFFLER GASKET
$11.99
55 998233 998233 - STUD BOLT
$14.99
56 622244 622244 - SCREW
$2.99
57 990487 990487 - NUT
$2.99
58 622901 622901 - FUEL TANK COMP.
$194.99
59 583789 583789 - FUEL TANK JOINT
$20.99
60 629360 629360 - O-RING
$8.99
61 627205 627205 - FUEL CAP ASSY.
$39.99
62 620872 620872 - PACKING
$15.99
63 629368 629368 - FUEL HOSE
$74.99
64 990499 990499 - TUBE CLIP
$2.99
65 586670 586670 - FLANGE BOLT
$2.99
66 998283 998283 - GOVERNOR ARM
$39.99
67 998285 998285 - GOVERNOR ROD
$11.99
68 998284 998284 - GOVERNOR SPRING
$14.99
69 998286 998286 - THROTTLE RETURN SPRI
$14.99
70 622232 622232 - CONTROL ASSY.
$40.99
71 998279 998279 - CONTROL LEVER
$30.99
72 998277 998277 - CONTROL BASE ASSY
$34.99
73 998280 998280 - LEVER SPRING
$14.99
74 998281 998281 - CONTROL LEVER WASHER
$20.99
75 998278 998278 - NLA CONTROL LEVER SP
$13.99
76 990418 990418 - CABLE HOLDER
$13.99
77 990419 990419 - CONTROL ADJUSTING SP
$8.99
78 990484 990484 - SCREW
$2.99
79 620832 620832 - PAN SCREW
$2.99
80 626007 626007 - GOVERNOR ARM BOLT
$7.99
82 632732 632732 - EMBLEM
$13.99
83 632733 632733 - CHOKE MARK
$2.99
84 632734 632734 - CHOKE MARK
$8.99
85 632735 632735 - THROTTLE MARK
$20.99
