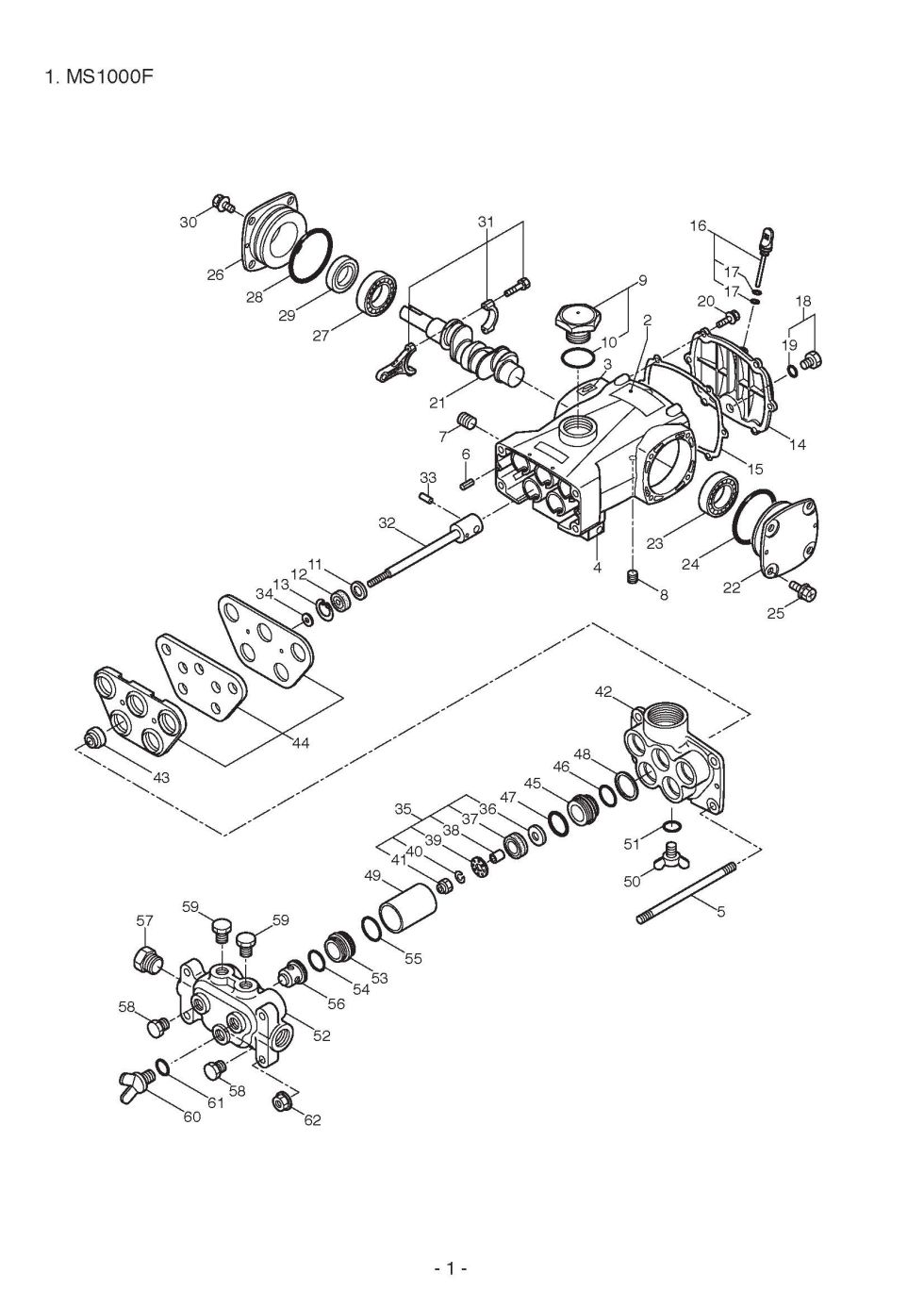

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS1000F. You have selected the Pump Breakdown diagram for the Maruyama MS1000F Piston Pumps. Below you will find an interactive part diagram for the MS1000F Pump Breakdown. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS1000F parts not shown in this diagram you may select from one of the other MS1000F part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
3 054365 054365 - LABEL
$2.99
6 027488 027488 - GUIDE PIN
$2.99
7 044490 044490 - PLUG
$2.99
8 145964 145964 - NLA PLUG
$2.99
9 092269 092269 - OIL FILLER CAP (BLACK)
$2.99
10 014177 014177 - O RING
$2.99
11 126259 126259 - WASHER
$2.99
12 025461 025461 - OIL SEAL
$5.99
13 125306 125306 - C-RING
$2.99
16 125312 125312 - OIL GAUGE ASSY
$5.99
17 026531 026531 - O-RING, PISTON SLEEV
$2.99
18 091376 091376 - PLUG
$2.99
19 023170 023170 - O-RING, DRAIN PLUG
$2.99
20 125824 125824 - BOLT MS253ECKF MS153
$2.99
23 016138 016138 - BEARING 6206CM
$13.50
29 027330 027330 - OIL SEAL
$7.99
33 016948 016948 - PISTON PIN
$8.99
34 125334
$2.99
35 406183 406183 - A BLOCK ASSY
$57.99
36 027944 027944 - MACHINED DISC M7
$5.85
37 115420 115420 - PISTON PACKING
$54.99
38 125924 125924 - COLLAR
$5.99
39 027947 027947 - SEAL RETAINER M7
$2.99
40 015850 015850 - WASHER
$2.99
41 115598 115598 - NYLON NUT
$5.99
43 100015 100015 - SEAL PACKING
$21.99
44 125338
$19.99
45 125929 125929 - PIPE RECEIVER
$14.99
46 043781 043781 - O RING
$2.99
47 027536 027536 - O-RING
$2.99
48 011261 011261 - SPACER, CYLINDER PAC
$2.99
49 115572 115572 - CYLINDER PIPE
$46.99
50 108366 108366 - DRAIN PLUG
$19.99
56 121218 121218 - VALVE
$18.99
57 108399 108399 - PLUG
$18.99
59 125348 125348 - PLUG
$16.99
62 120369 120369 - FLANGE NUT
$2.99
