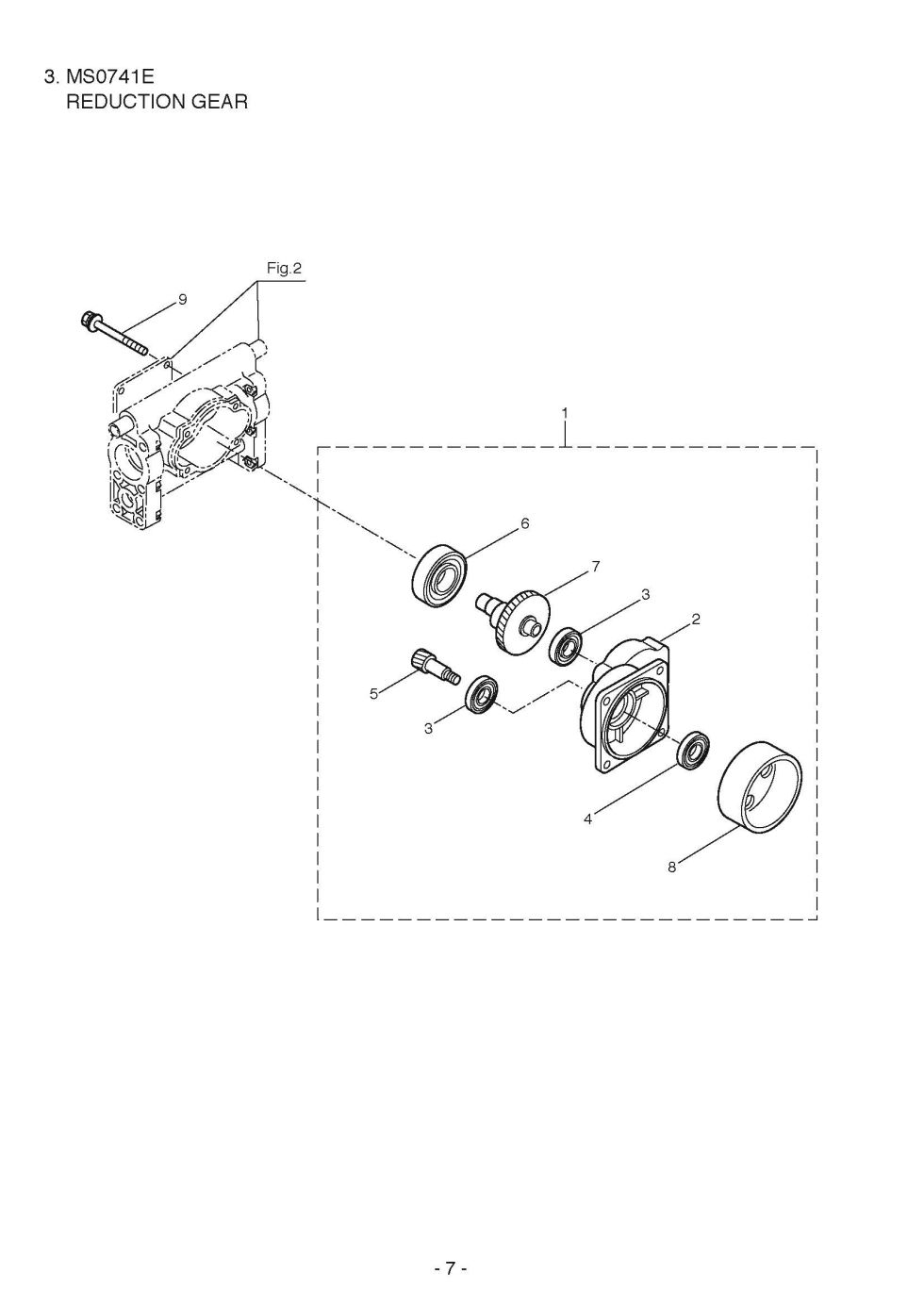

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS0741E. You have selected the Reduction Gear diagram for the Maruyama MS0741E Piston Pumps. Below you will find an interactive part diagram for the MS0741E Reduction Gear. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS0741E parts not shown in this diagram you may select from one of the other MS0741E part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 125684 | 125684 - REDUCTION GEAR ASSY |
$136.99
|
|
| 2 | 125685 | 125685 - GEAR CASE |
$20.99
|
|
| 3 | 102680 | 102680 - BEARING |
$13.99
|
|
| 4 | 112184 | 112184 - BEARING |
$19.99
|
|
| 5 | 125686 | 125686 - PINION GEAR |
$23.99
|
|
| 6 | 103144 | 103144 - BEARING |
$22.99
|
|
| 7 | 125687 | 125687 - CRANKSHAFT |
$47.99
|
|
| 8 | 127367 | 127367 - CLUTCH DRUM |
$22.99
|
|
| 9 | 126059 | 126059 - BOLT FOR MD6026 |
$2.99
|
