Power Sprayer

Power Sprayer

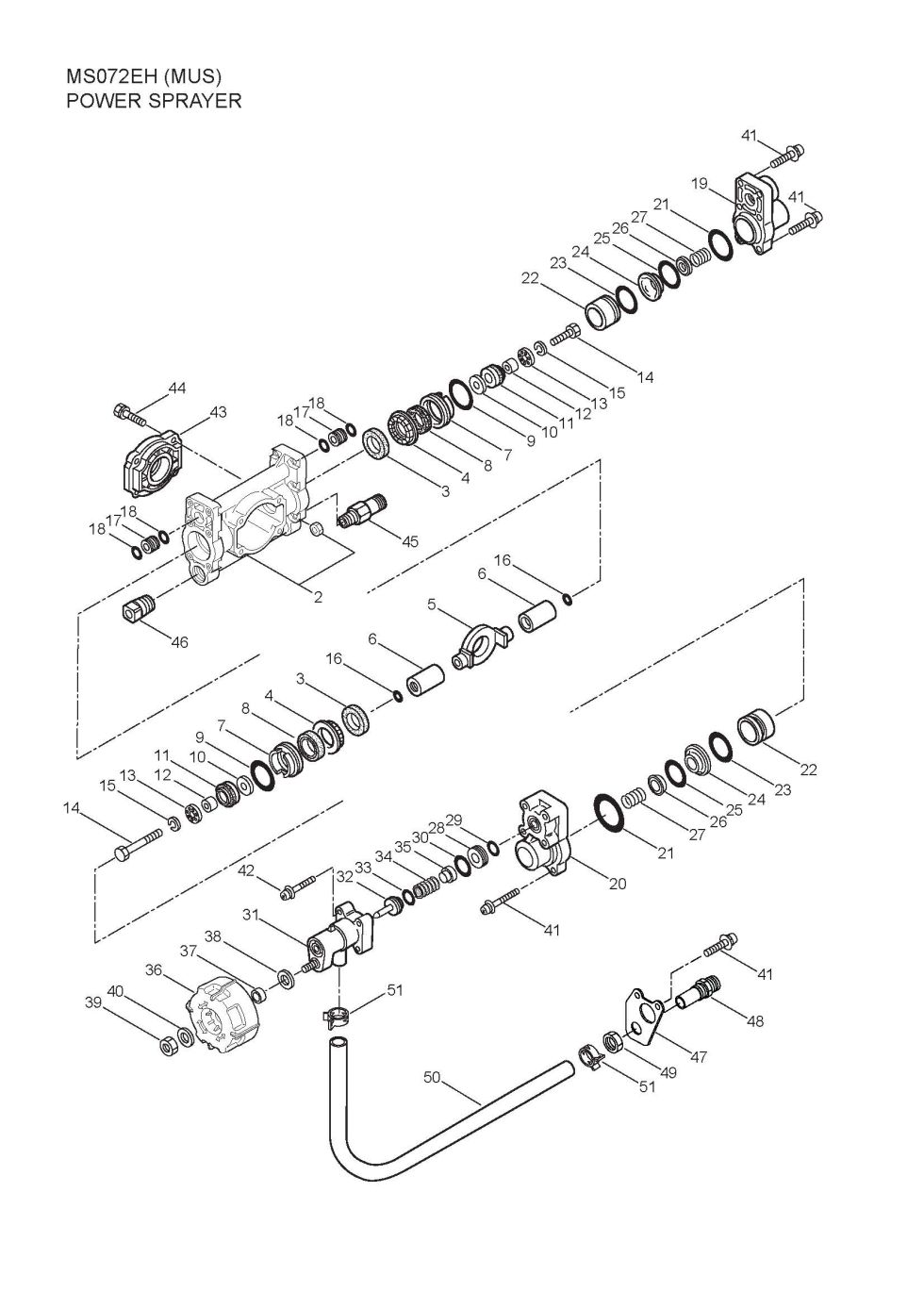

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS072EH. You have selected the Power Sprayer diagram for the Maruyama MS072EH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS072EH Power Sprayer. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS072EH parts not shown in this diagram you may select from one of the other MS072EH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
2 121831 121831 - CRANKCASE
$36.99
3 102683 102683 - OIL SEAL
$5.99
4 106190 106190 - COLLAR
$2.99
5 121179 121179 - CONNECTING ROD
$43.99
6 118055 118055 - SLEEVE
$22.99
7 102358 102358 - SEAL RETAINER
$2.99
8 112252 112252 - RUBBER PACKING
$18.99
9 013977 013977 - .-RING
$2.99
10 043426 043426 - SUCTION VALVE SEAT
$6.99
11 100441 100441 - PISTON PACKING ASSY
$7.99
12 023357 023357 - SUCTION VALVE COLLAR
$2.99
13 022023 022023 - SUCTION VALVE STOPPE
$18.99
14 118357 118357 - BOLT
$2.99
15 015848 015848 - SPRING WASHER M5
$2.99
16 021549 021549 - O-RING
$2.99
17 100554 100554 - SPACER PIPE
$2.99
18 014175 014175 - O-RING (P9)
$2.99
19 103128 103128 - CYLINDER HEAD A
$32.99
20 102634 102634 - CYLINDER HEAD B
$22.99
21 013983 013983 - O-RING
$2.99
22 103130 103130 - CYLINDER-STAINLESS S
$32.99
23 023172 023172 - O-RING (P22)
$2.99
24 118018 118018 - SEAT, MACHINED DISC
$17.99
25 103575 103575 - ORING DISCHARGE VALV
$2.99
26 043723 043723 - DISCHARGE VALVE
$5.99
27 043360 043360 - DISCHARGE VALVE SPRI
$2.99
28 103746 103746 - VALVE SEAT
$24.99
29 011343 011343 - ORING P10A
$2.99
30 011346 011346 - ORING P14
$2.99
31 103132 103132 - SPRING CASE
$18.99
32 103758 103758 - SPRING RETAINER
$23.99
33 011682 011682 - O-RING (P10)
$2.99
34 103759 103759 - COMPRESSION COIL SPR
$6.99
35 103747 103747 - VALVE
$16.99
36 107198 107198 - USE: 110780
$6.99
37 103270 103270 - COLLAR
$2.99
38 020012 020012 - WASHER
$2.99
40 014065 014065 - WASHER M8
$2.99
41 121956 121956 - SCREW(M5X32)
$2.99
42 816036 816036 - SCREW
$2.99
43 118006 118006 - BEARING CASE
$15.99
44 118085 118085 - USE: 127231
$2.99
46 108460 108460 - PLUG
$2.99
47 103412 103412 - BRACKET
$11.99
48 103413 103413 - NIPPLE
$18.99
50 103760 103760 - HOSE
$7.99
51 103033 103033 - HOSE BAND
$2.99
