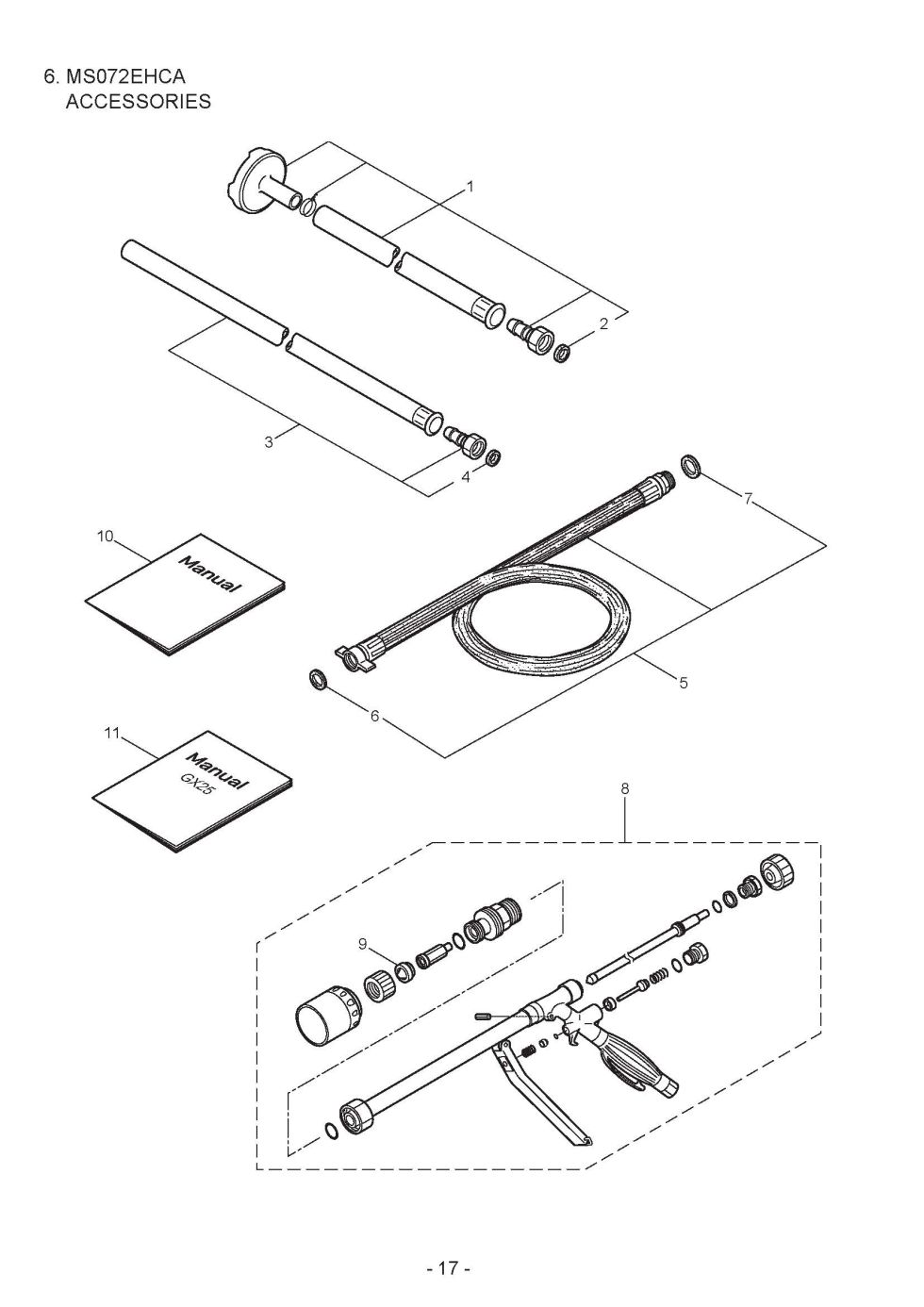

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS072EH-CA. You have selected the Accessories diagram for the Maruyama MS072EH-CA Piston Pumps. Below you will find an interactive part diagram for the MS072EH-CA Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS072EH-CA parts not shown in this diagram you may select from one of the other MS072EH-CA part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 103790 103790 - SUCTION HOSE ASSY
$81.99
2 023330 023330 - PACKING
$2.99
3 103792 103792 - DISCHARGE HOSE ASSY
$18.99
4 023329 023329 - PACKING
$2.99
5 025626 025626 - Obsolete - USE PART #106069 No Longer Available
Obsolete.
7 023320 023320 - PACKING
$2.99
8 120403 120403 - NOZZLE ASSY
$199.99
9 120404 120404 - USE: 575013 (obsolete)
use part #575013
$12.99
