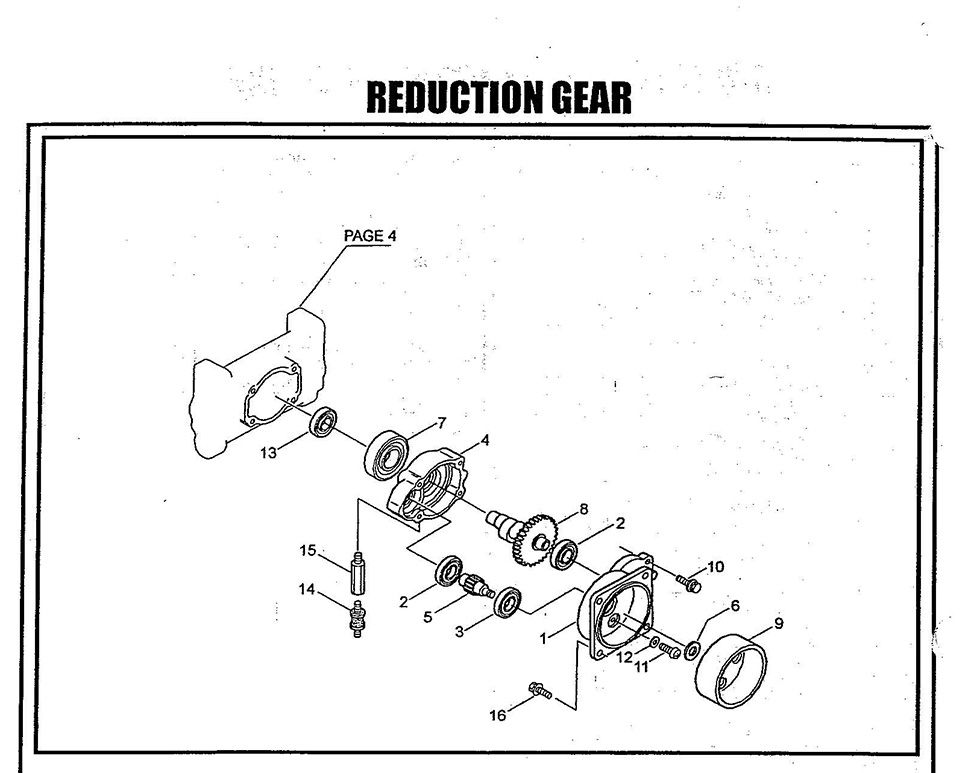

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS071EH. You have selected the Reduction Gear diagram for the Maruyama MS071EH Piston Pumps. Below you will find an interactive part diagram for the MS071EH Reduction Gear. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS071EH parts not shown in this diagram you may select from one of the other MS071EH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 103137 | 103137 - CLUTCH CASE |
$28.99
|
|
| 2 | 102680 | 102680 - BEARING |
$13.99
|
|
| 3 | 112184 | 112184 - BEARING |
$19.99
|
|
| 4 | 103138 | 103138 - GEARCASE |
$23.99
|
|
| 5 | 103139 | 103139 - PINION GEAR |
$30.99
|
|
| 6 | 107740 | 107740 - WASHER |
$2.99
|
|
| 7 | 103144 | 103144 - BEARING |
$22.99
|
|
| 8 | 120133 | 120133 - NLA CRANKSHAFT |
$55.99
|
|
| 9 | 103627 | 103627 - NLA CLUTCH DRUM |
$21.99
|
|
| 10 | 092519 | 092519 - BOLT |
$2.99
|
|
| 11 | 081456 | 081456 - SCREW M6X20 ISO |
$2.99
|
|
| 12 | 107736 | 107736 - SPACK |
$2.99
|
|
| 14 | 104706 | 104706 - BUFFER |
$13.99
|
|
| 15 | 120612 | 120612 - NLA EXTENSION |
$15.99
|
