Accessories

Accessories

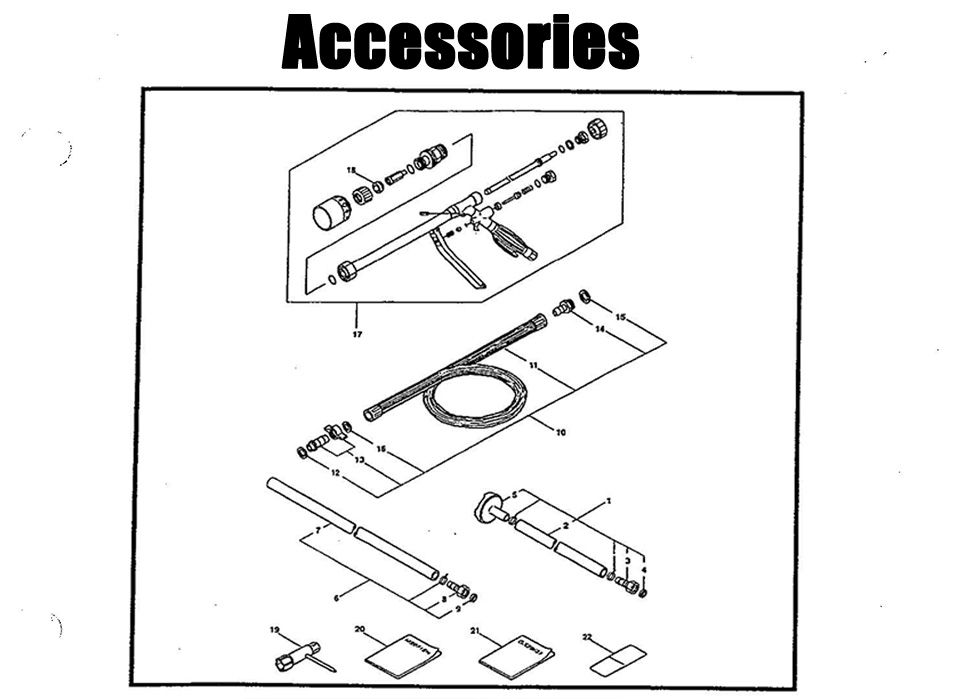

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS071EH. You have selected the Accessories diagram for the Maruyama MS071EH Piston Pump. Below you will find an interactive part diagram for the MS071EH Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS071EH parts not shown in this diagram you may select from one of the other MS071EH part assemblies or select a different Piston Pump altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 103790 103790 - SUCTION HOSE ASSY
$81.99
2 103791 103791 - HOSE
$21.99
3 098013 098013 - HOSE COUPLING
$15.99
4 023330 023330 - PACKING
$2.99
5 029548 029548 - SUCTION STRAINER ASS
$49.99
6 103792 103792 - DISCHARGE HOSE ASSY
$18.99
7 103793 103793 - HOSE
$20.99
8 098035 098035 - HOSE COUPLING
$8.99
9 023329 023329 - PACKING
$2.99
10 106069 106069 - HOSE ASSY(7.5X20M)W/
$94.99
11 019476 019476 - HOSE (7.5X20M)
$97.99
14 023297 023297 - HOSE COUPLING
$8.99
15 023320 023320 - PACKING
$2.99
16 019031 019031 - WASHER 10.5X16X1
$2.99
17 120403 120403 - NOZZLE ASSY
$199.99
19 222400 222400 - BOX SPANNER
$21.99
