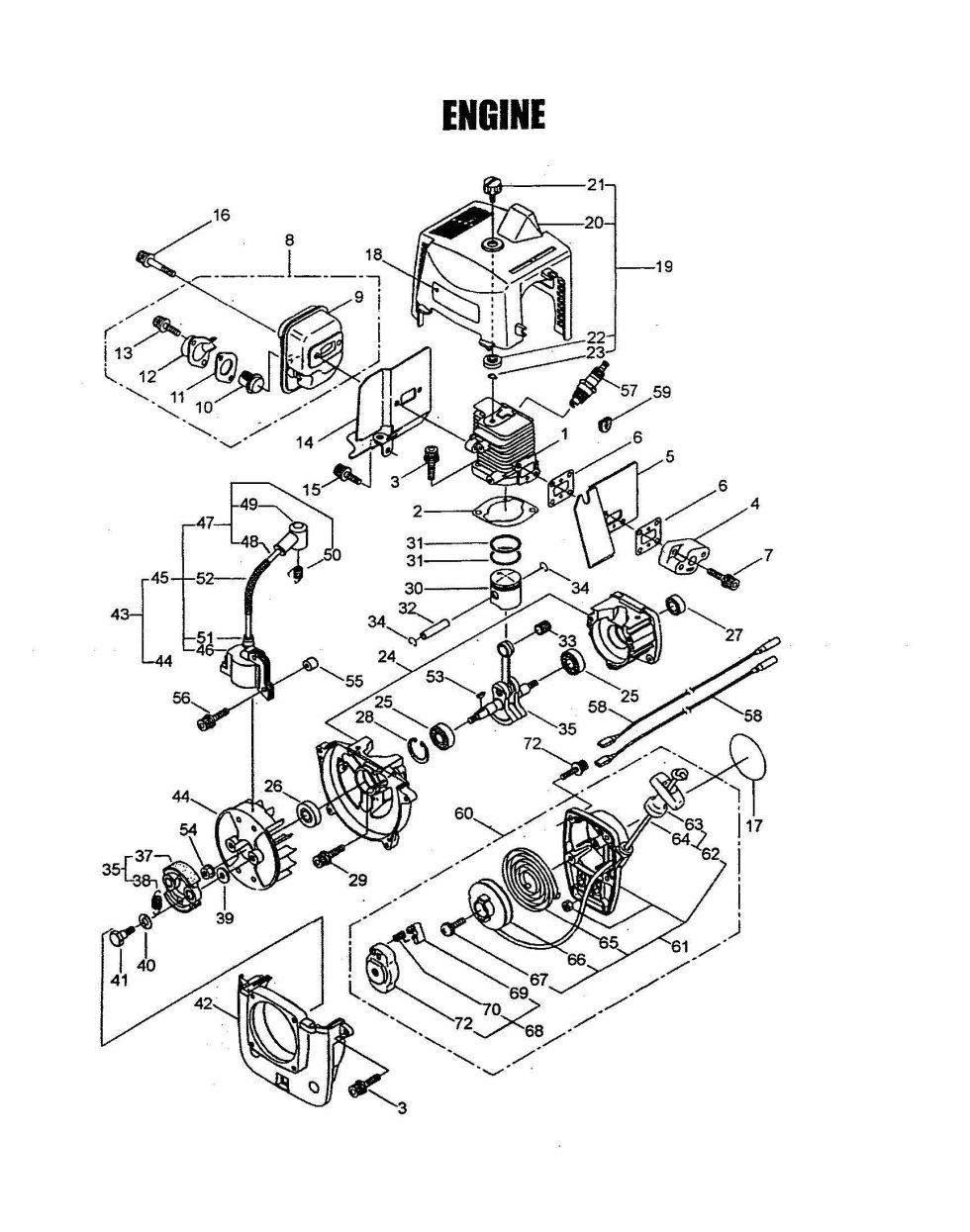

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS068. You have selected the Engine diagram for the Maruyama MS068 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS068 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS068 parts not shown in this diagram you may select from one of the other MS068 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 266249 266249 - CYLINDER
$114.99
2 265655 265655 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 266317 266317 - INSULATOR
$28.99
5 261000 261000 - HEAT SHIELD
$18.99
6 261171 261171 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 266250 266250 - MUFFLER ASSY
$59.99
9 266135 266135 - MUFFLER ASSY
$36.99
10 262443 262443 - SPARK PROTECTOR
$19.99
11 266143 266143 - GASKET
$5.99
12 266144 266144 - MUFFLER TAIL
$11.99
13 265107 265107 - BOLT
$2.99
14 266593 266593 - GASKET
$24.99
15 261607 261607 - BOLT M5X16
$2.99
16 266607 266607 - CAP SCREW
$2.99
17 266741 266741 - LABEL
$2.99
18 262100 262100 - LABEL
$5.99
19 266599 266599 - TOP COVER ASSY
$35.99
20 265981 265981 - NLA TOP COVER ASSY
$20.99
21 266962 266962 - KNOB
$2.99
22 261020 261020 - SPACER
$2.99
23 261734 261734 - SNAP RING
$2.99
24 265657 265657 - CRANKCASE
$72.99
25 261181 261181 - BEARING
$16.99
26 262712 262712 - NLA OIL SEAL
$2.99
27 262713 262713 - NLA OIL SEAL
$2.99
28 054676 054676 - SNAP RING
$2.99
29 261612 261612 - BOLT
$2.99
30 264719 264719 - USE: 266467
$31.99
31 264891 264891 - PISTON RING
$14.99
32 261036 261036 - PISTON PIN
$16.99
33 263957 263957 - BEARING NEEDLE
$21.99
34 261576 261576 - CIRCLIP
$2.99
35 263719 263719 - CRANKSHAFT/ ROD ASSY
$153.99
37 264888 264888 - CLUTCH SHOE
$22.99
38 264889 264889 - SPRING
$5.99
39 261189 261189 - WASHER
$2.99
40 261777 261777 - WAVE WASHER
$2.99
41 264505 264505 - CLUTCH BOLT
$5.99
42 266319 266319 - USE: 281325
$34.99
44 263085 263085 - ROTOR
$73.99
45 261301 261301 - IGNITION COIL ASSY
$108.99
47 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
48 261071 261071 - NLA IGNITION CABLE
$10.99
49 261074 261074 - PLUG CAP
$13.99
50 261075 261075 - CONNECTOR
$2.99
51 261072 261072 - CAP
$2.99
52 261073 261073 - TUBE
$8.99
53 261076 261076 - WOODRUFF KEY
$2.99
54 261077 261077 - NUT
$7.99
55 261078 261078 - NLA SPACER -
$2.99
56 261256 261256 - BOLT M4X25
$2.99
57 261200 261200 - SPARK PLUG
$20.99
58 261772 261772 - LEAD
$2.99
59 261202 261202 - GROMMET
$2.99
60 262005 262005 - RECOIL STARTER ASSY
$43.99
61 262011 262011 - RECOIL ASSY
$28.99
62 261626 261626 - ROPE ASSY
$21.99
63 261628 261628 - STARTER GRIP
$10.99
64 261627 261627 - STARTER ROPE
$8.99
65 261622 261622 - SPIRAL SPRING
$19.99
66 261621 261621 - REEL
$14.99
67 262922 262922 - SCREW
$2.99
68 263471 263471 - STARTER PAWL ASSY
$20.99
69 263473 263473 - PAWL
$10.99
70 263474 263474 - RETURN SPRING
$2.99
72 261257 261257 - CAP SCREW M4X16
$2.99
