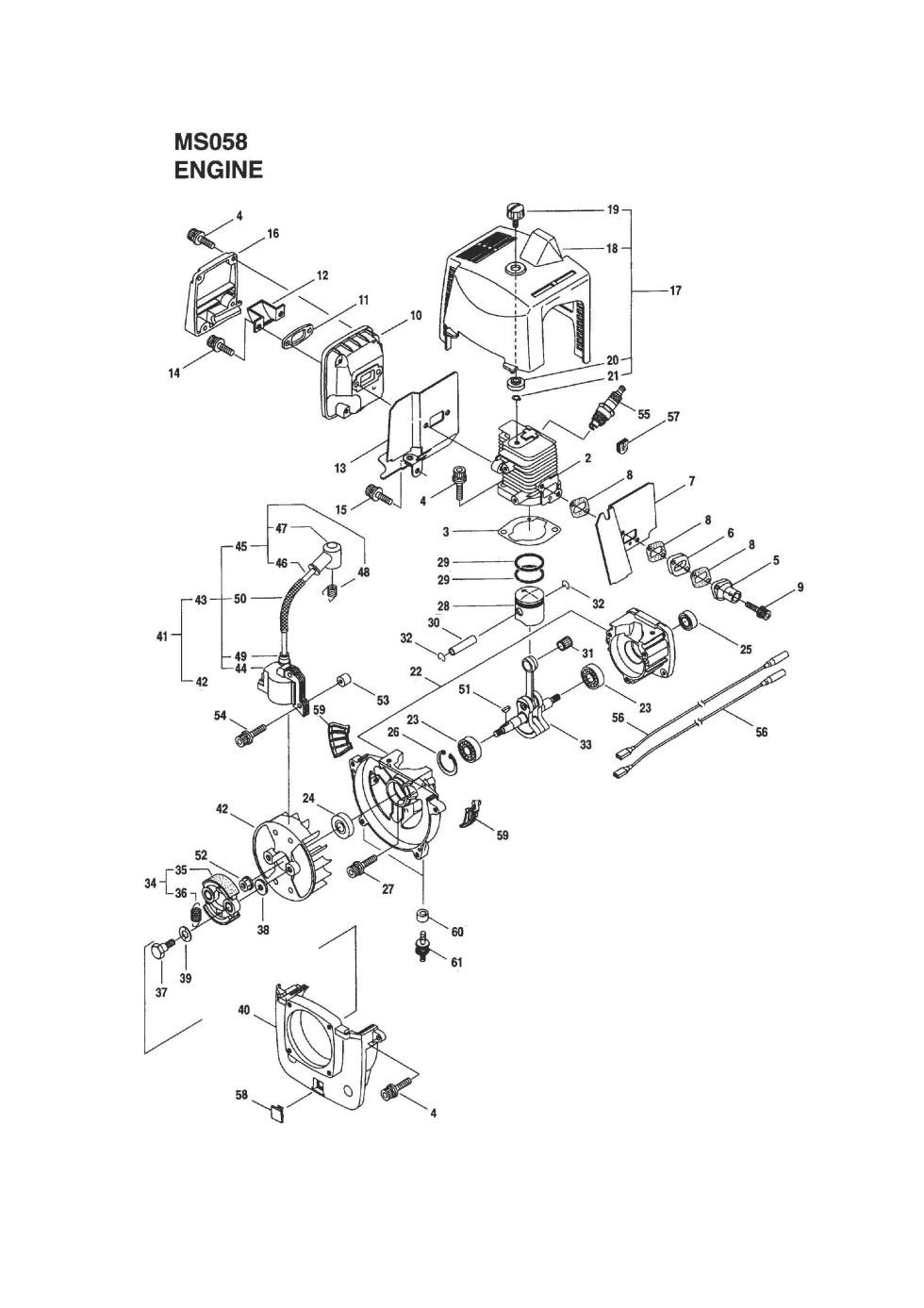

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS058. You have selected the Engine diagram for the Maruyama MS058 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS058 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS058 parts not shown in this diagram you may select from one of the other MS058 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
2 266249 266249 - CYLINDER
$114.99
3 265655 265655 - GASKET
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 115099 115099 - INTAKE PIPE
$22.99
6 114877 114877 - INSULATOR
$7.99
7 261000 261000 - HEAT SHIELD
$18.99
8 114876 114876 - GASKET
$2.99
9 265924 265924 - CAP SCREW 5X25
$2.99
10 264229 264229 - NLA MUFFLER BASE
$20.99
11 262004 262004 - NLA PLATE
$5.99
12 261006 261006 - NLA PLATE
$14.99
13 261007 261007 - GASKET ASSY
$20.99
14 261246 261246 - CAP SCREW M5X25
$2.99
16 264231 264231 - MUFFLER COVER
$15.99
17 263054 263054 - TOP COVER ASSY
$27.99
19 261018 261018 - KNOB
$7.99
20 261020 261020 - SPACER
$2.99
21 261734 261734 - SNAP RING
$2.99
22 267622 267622 - CRANKCASE ASSY
$67.99
23 261181 261181 - BEARING
$16.99
24 262712 262712 - NLA OIL SEAL
$2.99
25 262713 262713 - NLA OIL SEAL
$2.99
26 054676 054676 - SNAP RING
$2.99
27 261612 261612 - BOLT
$2.99
28 264719 264719 - USE: 266467
$31.99
29 264891 264891 - PISTON RING
$14.99
30 261036 261036 - PISTON PIN
$16.99
31 263957 263957 - BEARING NEEDLE
$21.99
32 261576 261576 - CIRCLIP
$2.99
33 263719 263719 - CRANKSHAFT/ ROD ASSY
$153.99
34 264503 264503 - CLUTCH ASSY.
$25.99
35 264504 264504 - CLUTCH SHOE
$16.99
36 263614 263614 - CLUTCH SPRING
$18.99
37 264505 264505 - CLUTCH BOLT
$5.99
38 261189 261189 - WASHER
$2.99
39 261777 261777 - WAVE WASHER
$2.99
40 264104 264104 - NLA FAN COVER
$27.99
42 263085 263085 - ROTOR
$73.99
43 267173 267173 - USE: 267400
$62.99
44 267174 267174 - USE: 267401
$69.99
45 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
46 267404 267404 - SPARK PLUG WIRE
$2.99
47 261074 261074 - PLUG CAP
$13.99
48 261075 261075 - CONNECTOR
$2.99
49 261072 261072 - CAP
$2.99
50 267402 267402 - INSULATOR
$2.99
51 261076 261076 - WOODRUFF KEY
$2.99
52 261077 261077 - NUT
$7.99
53 261078 261078 - NLA SPACER -
$2.99
54 261256 261256 - BOLT M4X25
$2.99
55 261200 261200 - SPARK PLUG
$20.99
56 267492 267492 - LEAD
$7.99
57 261202 261202 - GROMMET
$2.99
58 261786 261786 - NLA GROMMET
$2.99
59 265458 265458 - SCREEN
$2.99
60 267612 267612 - SPACER
$2.99
61 114940 114940 - BUFFER
$15.99
