Carburetor and Recoil Starter

Carburetor and Recoil Starter

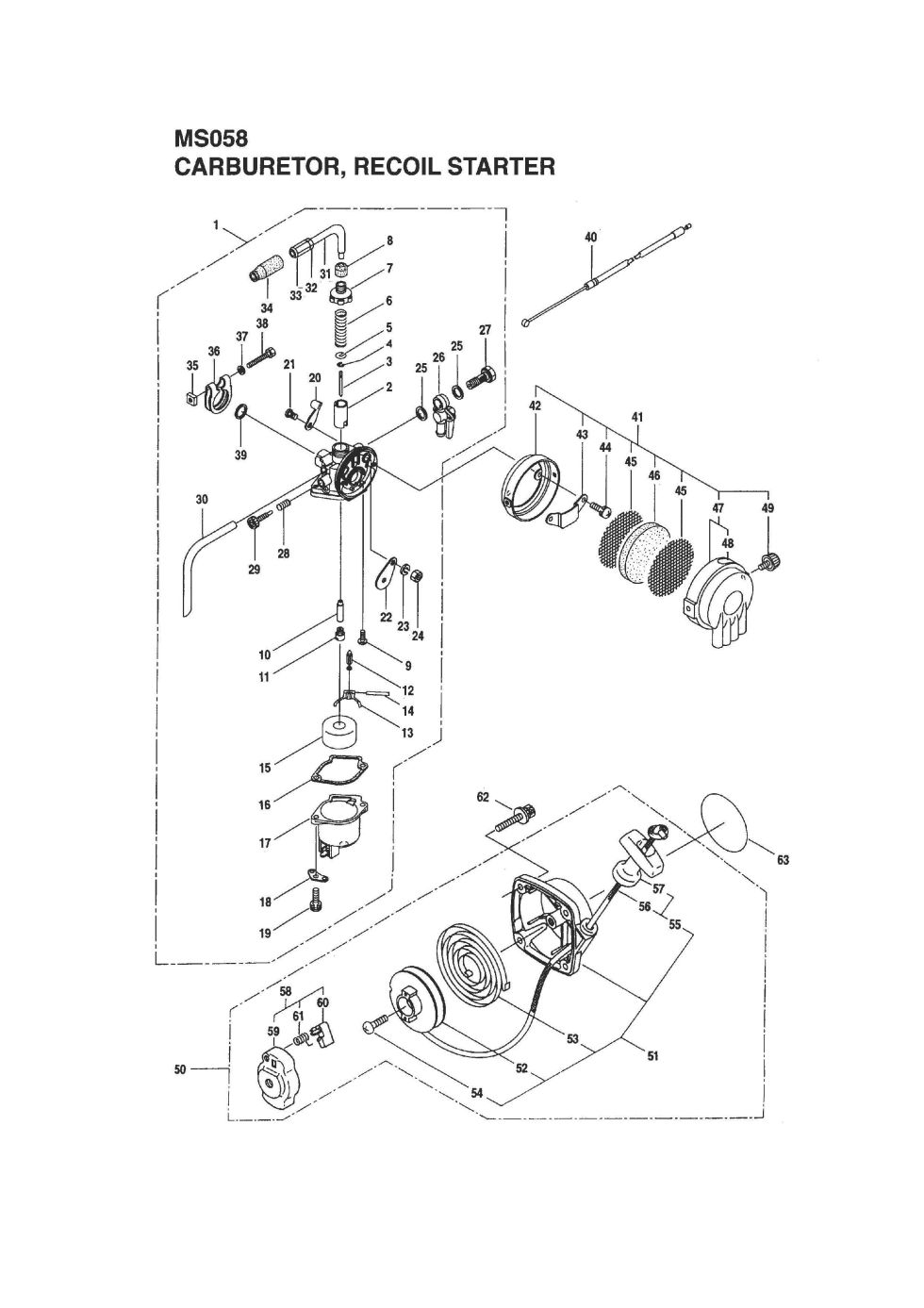

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS058. You have selected the Carburetor and Recoil Starter diagram for the Maruyama MS058 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS058 Carburetor and Recoil Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS058 parts not shown in this diagram you may select from one of the other MS058 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 267571 267571 - CARBURETOR
$131.99
2 267166 267166 - VALVE
$38.99
3 267266 267266 - JET NEEDLE
$20.99
4 115322 115322 - CLIP
$2.99
5 115319 115319 - NLA THROTTLE
$2.99
6 115318 115318 - THROTTLE SPRING
$2.99
7 115352 115352 - NLA BODY CAP
$50.99
8 115314 115314 - RUBBER CAP
$9.99
9 264919 264919 - SCREW
$2.99
10 267165 267165 - NEEDLE JET
$21.99
11 265293 265293 - MAIN JET
$18.99
12 266101 266101 - NEEDLE VALVE
$23.99
13 264917 264917 - ARM
$15.99
14 264918 264918 - PIN
$5.99
15 264904 264904 - FLOAT
$18.99
16 264905 264905 - GASKET
$16.99
17 264910 264910 - FLOAT CHAMBER
$40.99
18 264912 264912 - STAY
$2.99
19 264911 264911 - SCREW
$2.99
20 264924 264924 - LEVER
$2.99
21 264925 264925 - BOLT
$7.99
23 115682 115682 - SPRING
$2.99
24 115681 115681 - NLA NUT
$2.99
25 264923 264923 - GASKET
$2.99
26 264920 264920 - COCK ASSY
$31.99
27 264922 264922 - BOLT COMP
$20.99
28 266102 266102 - ADJUST SCREW SPRING
$8.99
29 115820 115820 - SLOW STOP SCREW
$5.99
30 267708 267708 - PIPE
$2.99
31 115327 115327 - ADJUST PIPE
$23.99
32 115328 115328 - NUT
$5.99
33 115329 115329 - NLA CABLE
$12.99
34 115330 115330 - RUBBER CAP
$12.99
40 114898 114898 - THROTTLE CABLE
$14.99
42 115306 115306 - CLEANER BODY
$18.99
43 266664 266664 - PLATE
$5.99
44 115312 115312 - NLA SCREW
$2.99
45 115307 115307 - BACK SCREEN
$6.99
47 115309 115309 - CLEANER
$24.99
48 115311 115311 - LABEL
$5.99
49 115313 115313 - SET SCREW
$2.99
50 114847 114847 - NLA STARTER & PAWL A
$34.99
51 115095 115095 - REWIND STARTER ASSY
$31.99
52 261621 261621 - REEL
$14.99
53 261622 261622 - SPIRAL SPRING
$19.99
54 115097 115097 - SET SCREW
$2.99
55 115096 115096 - ROPE/ GRIP ASSY
$19.99
56 261627 261627 - STARTER ROPE
$8.99
57 261725 261725 - STARTER GRIP
$9.99
58 263471 263471 - STARTER PAWL ASSY
$20.99
59 263472 263472 - STARTER
$19.99
60 263473 263473 - PAWL
$10.99
61 263474 263474 - RETURN SPRING
$2.99
62 261257 261257 - CAP SCREW M4X16
$2.99
63 266741 266741 - LABEL
$2.99
