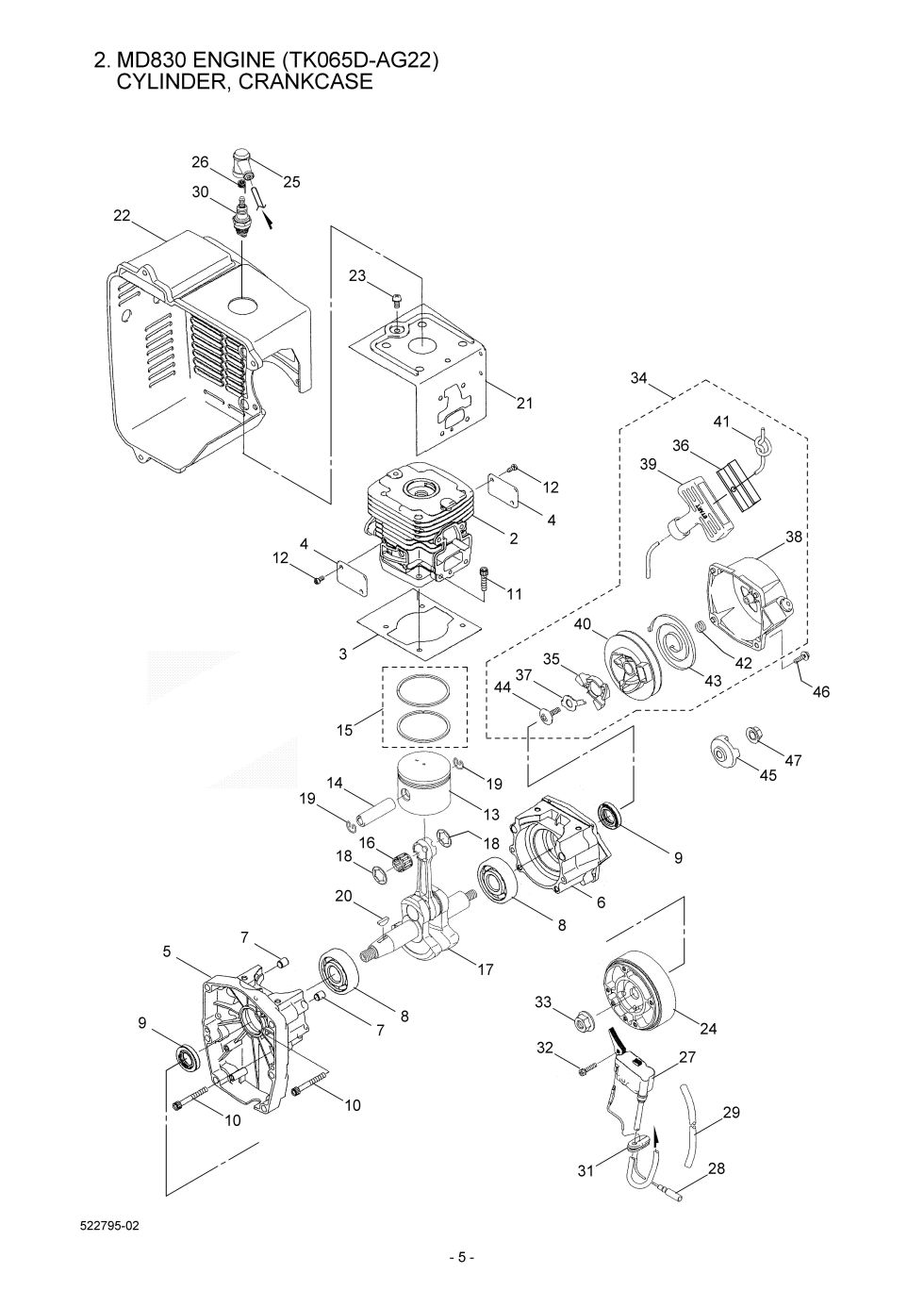

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MD830. You have selected the Engine (Cylinder, Crankcase) diagram for the Maruyama MD830 Mister Duster. Below you will find an interactive part diagram for the MD830 Engine (Cylinder, Crankcase). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MD830 parts not shown in this diagram you may select from one of the other MD830 part assemblies or select a different Mister Duster altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Mister Duster parts.

Position number SKU Product title Price
2 649312 649312 - USE: 426073
$107.99
3 649313 649313 - USE: 415369
$17.99
4 649314 649314 - PLATE
$6.99
5 414427 414427 - CRANKCASE
$151.99
6 414428 414428 - CRANKCASE
$123.99
7 573908 573908 - PIN
$2.99
8 649317 649317 - USE: 426078
$25.99
9 414429 414429 - USE: 419527
$24.99
10 414431 414431 - BOLT 5X40
$2.99
11 414430 414430 - BOLT
$2.99
12 410897 410897 - SCREW
$2.99
13 649321 649321 - PISTON
$80.99
14 649322 649322 - PISTON PIN
$40.99
15 649323 649323 - USE: 426081
$29.99
16 649325 649325 - BEARING
$25.99
17 414432 414432 - CRANKSHAFT ASS'Y
$220.99
18 414433 414433 - SPACER
$5.99
19 943307 943307 - SNAP RING
$2.99
20 071695 071695 - KEY
$5.99
21 649329 649329 - SHROUD
$17.99
22 400923 400923 - USE: 426342
$80.99
23 414435 414435 - SCREW
$2.99
24 414436 414436 - FLYWHEEL BL8200HA SP
$108.99
25 591532 591532 - SPARK PLUG CAP
$19.99
26 591533 591533 - SPRING
$2.99
27 649331 649331 - IGN COIL ASSY
$214.99
28 649332 649332 - LEAD WIRE
$11.99
29 998411 998411 - TUBE
$2.99
30 649333 649333 - SPARK PLUG
$18.99
31 649334 649334 - GROMMET
$6.99
32 649335 649335 - BOLT
$2.99
33 649336 649336 - NUT M10
$11.99
34 400921 400921 - RECOIL STARTER ASSY
$113.99
35 649370 649370 - PAWL
$10.99
36 400919 400919 - PLATE
$10.99
37 649371 649371 - RETAINER
$19.99
38 649372 649372 - CASE RECOIL STARTER
$69.99
39 400920 400920 - GRIP
$17.99
40 649376 649376 - REEL, RECOIL STARTER
$35.99
41 649377 649377 - ROPE
$21.99
42 649378 649378 - SPRING
$7.99
43 400922 400922 - SPRING
$31.99
44 649380 649380 - SCREW
$7.99
45 649374 649374 - PULLEY, STARTING
$8.99
46 624845 624845 - SCREW M4X16
$2.99
47 649381 649381 - NUT
$2.99
