 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

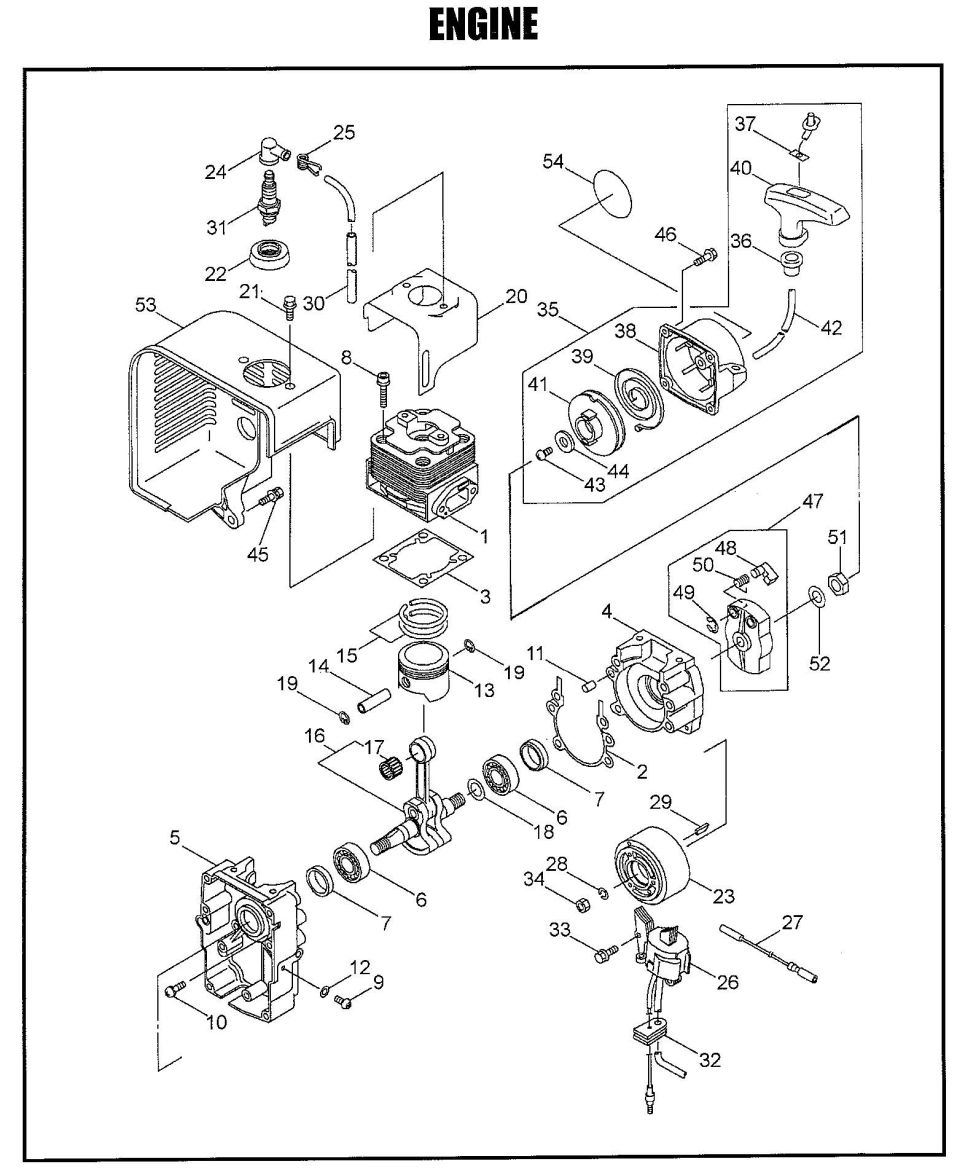

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 626809 | 626809 - CYLINDER |
$134.99
|
|
| 2 | 570248 | 570248 - GASKET |
$5.99
|
|
| 3 | 597282 | 597282 - GASKET, CYLINDER |
$11.99
|
|
| 4 | 570246 | 570246 - NLA CRANKCASE |
$162.99
|
|
| 5 | 570247 | 570247 - CRANKCASE |
$202.99
|
|
| 6 | 597283 | 597283 - BEARING |
$29.99
|
|
| 7 | 071320 | 071320 - OIL SEAL |
$19.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 | 579537 | 579537 - USE: 634592 |
$45.99
|
|
| 14 | 599881 | 599881 - PIN, PISTON |
$23.99
|
|
| 15 | 943875 | 943875 - PISTON RING SET |
$34.99
|
|
| 16 | 626810 | 626810 - CRANKSHAFT ASSY |
$190.99
|
|
| 17 | 597289 | 597289 - USE: 943281 |
$19.99
|
|
| 18a | 597285 | 597285 - SHIM (0.10) |
$2.99
|
|
| 18b | 597286 | 597286 - SHIM (0.20) |
$2.99
|
|
| 18c | 597287 | 597287 - SHIM (0.40) |
$2.99
|
|
| 18d | 597288 | 597288 - SHIM (0.60) |
$2.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 580182 | 580182 - SHROUD-ENGINE |
$19.99
|
|
| 21 | 626817 | 626817 - BOLT |
$6.99
|
|
| 22 | 573289 | 573289 - COVER |
$9.99
|
|
| 23 | 597291 | 597291 - FLYWHEEL |
$133.99
|
|
| 24 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 25 | 591533 | 591533 - SPRING |
$2.99
|
|
| 26 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 27 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 28 | 943924 | 943924 - WASHER |
$2.99
|
|
| 29 | 998409 | 998409 - KEY |
$12.99
|
|
| 30 | 998411 | 998411 - TUBE |
$2.99
|
|
| 31 | 627409 | 627409 - SPARK PLUG BPMR7A |
$24.99
|
|
| 32 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 33 | 943457 | 943457 - BOLT |
$2.99
|
|
| 34 | 998410 | 998410 - NUT |
$6.99
|
|
| 35 | 579570 | 579570 - RECOIL STARTER ASSY |
$88.99
|
|
| 36 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 37 | 944502 | 944502 - WASHER |
$8.99
|
|
| 38 | 579568 | 579568 - RECOIL CASE |
$31.99
|
|
| 39 | 572955 | 572955 - SPRING |
$31.99
|
|
| 40 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 41 | 579571 | 579571 - RECOIL REEL |
$27.99
|
|
| 42 | 579572 | 579572 - ROPE |
$15.99
|
|
| 43 | 944801 | 944801 - USE: 570720 |
$2.99
|
|
| 44 | 579574 | 579574 - WASHER |
$2.99
|
|
| 45 | 580184 | 580184 - SCREW |
$2.99
|
|
| 46 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 47 | 579569 | 579569 - STARTER PAWL ASSY |
$18.99
|
|
| 48 | 572938 | 572938 - PAWL |
$17.99
|
|
| 49 | 944226 | 944226 - USE: 13525 |
$2.99
|
|
| 50 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 51 | 943173 | 943173 - NUT |
$2.99
|
|
| 52 | 071190 | 071190 - WASHER |
$2.99
|
|
| 53 | 625861 | 625861 - SHROUD |
$88.99
|
|
| 54 | 630155 | 630155 - NLA DECAL |
$15.99
|
