 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

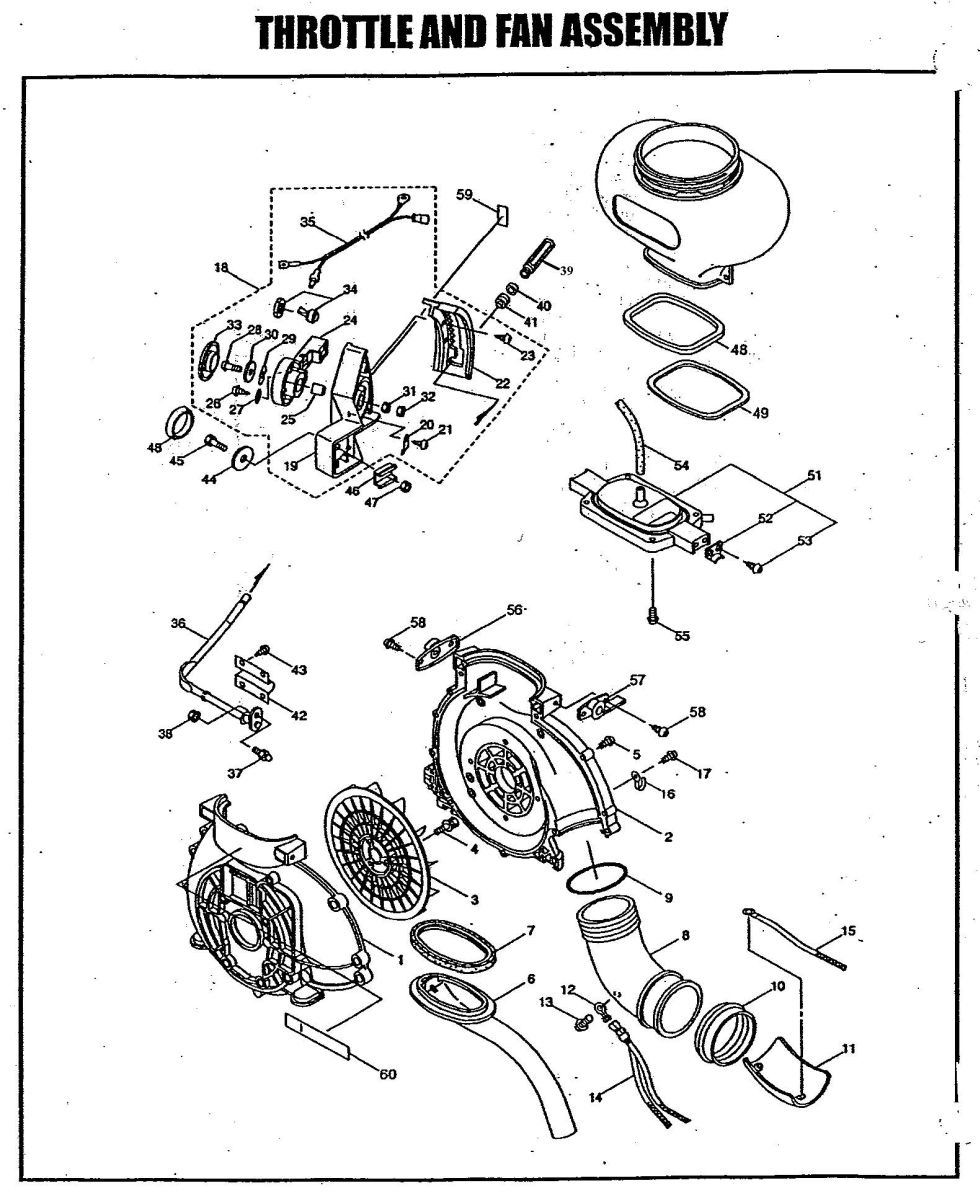

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 120703 | 120703 - USE: 122693 |
$63.99
|
|
| 2 | 120705 | 120705 - FAN CASE ASSY |
$54.99
|
|
| 3 | 110736 | 110736 - FAN |
$45.99
|
|
| 4 | 092544 | 092544 - BOLT |
$2.99
|
|
| 5 | 089578 | 089578 - TAPPING SCREW |
$2.99
|
|
| 6 | 110803 | 110803 - USE: 117650 |
$19.99
|
|
| 7 | 108016 | 108016 - PACKING |
$20.99
|
|
| 8 | 120743 | 120743 - ELBOW PIPE |
$27.99
|
|
| 9 | 011367 | 011367 - O-RING |
$6.99
|
|
| 10 | 100808 | 100808 - RUBBER BRACKET |
$12.99
|
|
| 11 | 101340 | 101340 - ELBOW PIPE PLATE |
$21.99
|
|
| 12 | 101608 | 101608 - CLAMP |
$2.99
|
|
| 13 | 816013 | 816013 - SCREW |
$2.99
|
|
| 14 | 101252 | 101252 - EARTH TAPE |
$18.99
|
|
| 15 | 100293 | 100293 - GROUND WIRE, GROUNDI |
$8.99
|
|
| 16 | 109051 | 109051 - CLAMP |
$2.99
|
|
| 17 | 089806 | 089806 - SCREW MD6026 157D 15 |
$2.99
|
|
| 18 | 120707 | 120707 - LEVER ASSY |
$80.99
|
|
| 19 | 120708 | 120708 - DIAL PLATE RETAINER |
$29.99
|
|
| 20 | 111712 | 111712 - PLATE |
$2.99
|
|
| 21 | 086053 | 086053 - TAPPING SCREW |
$2.99
|
|
| 22 | 120888 | 120888 - DIAL PLATE |
$19.99
|
|
| 23 | 086062 | 086062 - SCREW |
$2.99
|
|
| 24 | 110648 | 110648 - THROTTLE LEVER |
$18.99
|
|
| 25 | 110650 | 110650 - COLLAR |
$2.99
|
|
| 26 | 082690 | 082690 - TAPPING SCREW |
$2.99
|
|
| 27 | 111922 | 111922 - WASHER |
$2.99
|
|
| 28 | 081457 | 081457 - SCREW M6X25 |
$2.99
|
|
| 29 | 111156 | 111156 - WASHER |
$2.99
|
|
| 30 | 013512 | 013512 - WASHER |
$2.99
|
|
| 31 | 100234 | 100234 - NUT |
$2.99
|
|
| 32 | 081032 | 081032 - NUT |
$2.99
|
|
| 33 | 110730 | 110730 - CAP |
$2.99
|
|
| 34 | 117623 | 117623 - SWITCH |
$12.99
|
|
| 35 | 119400 | 119400 - LEAD WIRE |
$24.99
|
|
| 36 | 112911 | 112911 - LEVER ASSY |
$28.99
|
|
| 38 | 100420 |
100420 - NLA FLANGE NUT (obsolete) use part #126756 |
$2.99
|
|
| 39 | 100632 | 100632 - KNOB |
$2.99
|
|
| 40 | 100633 | 100633 - SNAP |
$2.99
|
|
| 41 | 100726 | 100726 - RUBBER CAP |
$2.99
|
|
| 42 | 112965 | 112965 - LEVER RETAINER |
$8.99
|
|
| 44 | 065413 | 065413 - WASHER |
$2.99
|
|
| 45 | 080129 | 080129 - BOLT |
$2.99
|
|
| 46 | 110865 | 110865 - BRACKET MD6026 BL400 |
$2.99
|
|
| 48 | 110729 | 110729 - CAP |
$2.99
|
|
| 49 | 121013 | 121013 - PACKING |
$5.99
|
|
| 51 | 111824 | 111824 - TANK BOTTOM LID |
$38.99
|
|
| 52 | 110313 | 110313 - HOOK |
$12.99
|
|
| 53 | 089663 | 089663 - SCREW |
$2.99
|
|
| 54 | 100622 | 100622 - RUBBER TUBE |
$13.99
|
|
| 55 | 088345 | 088345 - SCREW |
$2.99
|
|
| 56 | 117713 | 117713 - LATCH ASSY LH |
$32.99
|
|
| 57 | 117712 | 117712 - LATCH ASSY (R.H.) |
$32.99
|
|
| 58 | 089826 | 089826 - TAPPING SCREW |
$2.99
|
|
| 59 | 120793 | 120793 - LABEL |
$2.99
|
|
| 60 | 120675 | 120675 - DECAL |
$2.99
|
