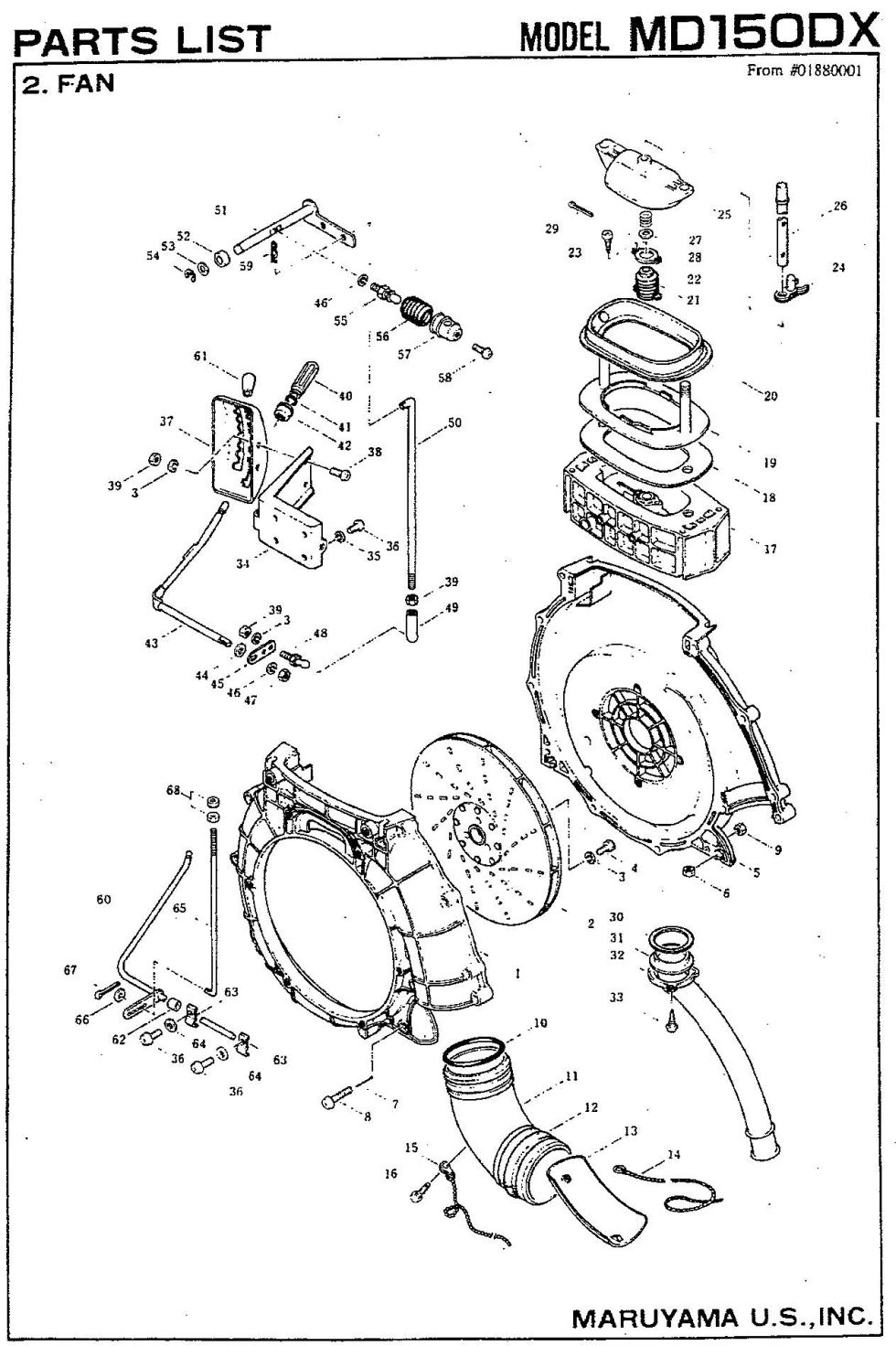

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MD150DX. You have selected the Fan diagram for the Maruyama MD150DX Mister Duster. Below you will find an interactive part diagram for the MD150DX Fan. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MD150DX parts not shown in this diagram you may select from one of the other MD150DX part assemblies or select a different Mister Duster altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Mister Duster parts.

Position number SKU Product title Price
1 104039 104039 - NLA FAN CASE (E)
$93.99
2 100809 100809 - NLA FAN
$90.99
3 012502 012502 - SPRING WASHER
$2.99
4 082098 082098 - BOLT M6X16
$2.99
5 101364 101364 - NLA FAN CASE
$171.99
6 100234 100234 - NUT
$2.99
8 092049 092049 - SCREW
$2.99
10 011367 011367 - O-RING
$6.99
11 100889 100889 - ELBOW PIPE (obsolete)
use part #120743
$27.99
12 100808 100808 - RUBBER BRACKET
$12.99
13 101340 101340 - ELBOW PIPE PLATE
$21.99
14 100293 100293 - GROUND WIRE, GROUNDI
$8.99
15 101618 101618 - NLA BALL CHAIN
$14.99
16 092079 092079 - SCREW
$2.99
17 100244 100244 - NLA SHUTTER CASE
$66.99
18 100537 100537 - JOINT PACKING
$7.99
21 100247 100247 - BELLOWS
$11.99
22 100248 100248 - BELLOWS RETAINER
$12.99
23 089531 089531 - TAPPING SCREW
$2.99
25 028390 028390 - SHUTTER
$49.99
27 100253 100253 - SPRING
$7.99
28 100518 100518 - WASHER
$2.99
29 055480 055480 - COTTER PIN
$2.99
30 100517 100517 - NLA PACKING
$2.99
31 101342 101342 - DISCHARGE PORT
$19.99
32 100246 100246 - DISCHARGE PORT RETAI
$8.99
33 089532 089532 - TAPPING SCREW
$2.99
34 100741 100741 - DIAL PLATE STOPPER
$20.99
35 012501 012501 - SPRING WASHER
$2.99
36 081426 081426 - SCREW (M5X15)
$2.99
37 100742 100742 - DIAL PLATE
$20.99
38 081454 081454 - SCREW
$2.99
40 100632 100632 - KNOB
$2.99
41 100633 100633 - SNAP
$2.99
42 100726 100726 - RUBBER CAP
$2.99
43 104040 104040 - SHUTTER LEVER
$21.99
44 012489 012489 - WASHER
$2.99
45 101197 101197 - LEVER ARM
$16.99
46 015845 015845 - SPRING WASHER
$2.99
48 105779 105779 - NLA MALE UNIVERSA
$8.99
49 020584 020584 - UNIVERSAL JOINT-FEMA
$2.99
50 107096 107096 - JOINT ROD
$10.99
51 108009 108009 - LINK SHAFT
$42.99
52 100535 100535 - COLLAR
$2.99
53 027804 027804 - WASHER
$2.99
54 026369 026369 - E-RING
$2.99
56 028642 028642 - BELLOWS
$10.99
57 028061 028061 - UNIVERSAL LINK
$6.99
58 088329 088329 - SCREW
$2.99
59 065048 065048 - R-PIN
$2.99
60 104041 104041 - THROTTLE LEVER
$15.99
63 101309 101309 - NLA THROTTLE LEVER B
$2.99
64 022905 022905 - WASHER
$2.99
65 104042 104042 - THROTTLE ROD
$9.99
66 012486 012486 - WASHER
$2.99
67 013013 013013 - Obsolete - USE PART #029818 No Longer Available
Obsolete.
68 029795 029795 - NUT
$2.99
