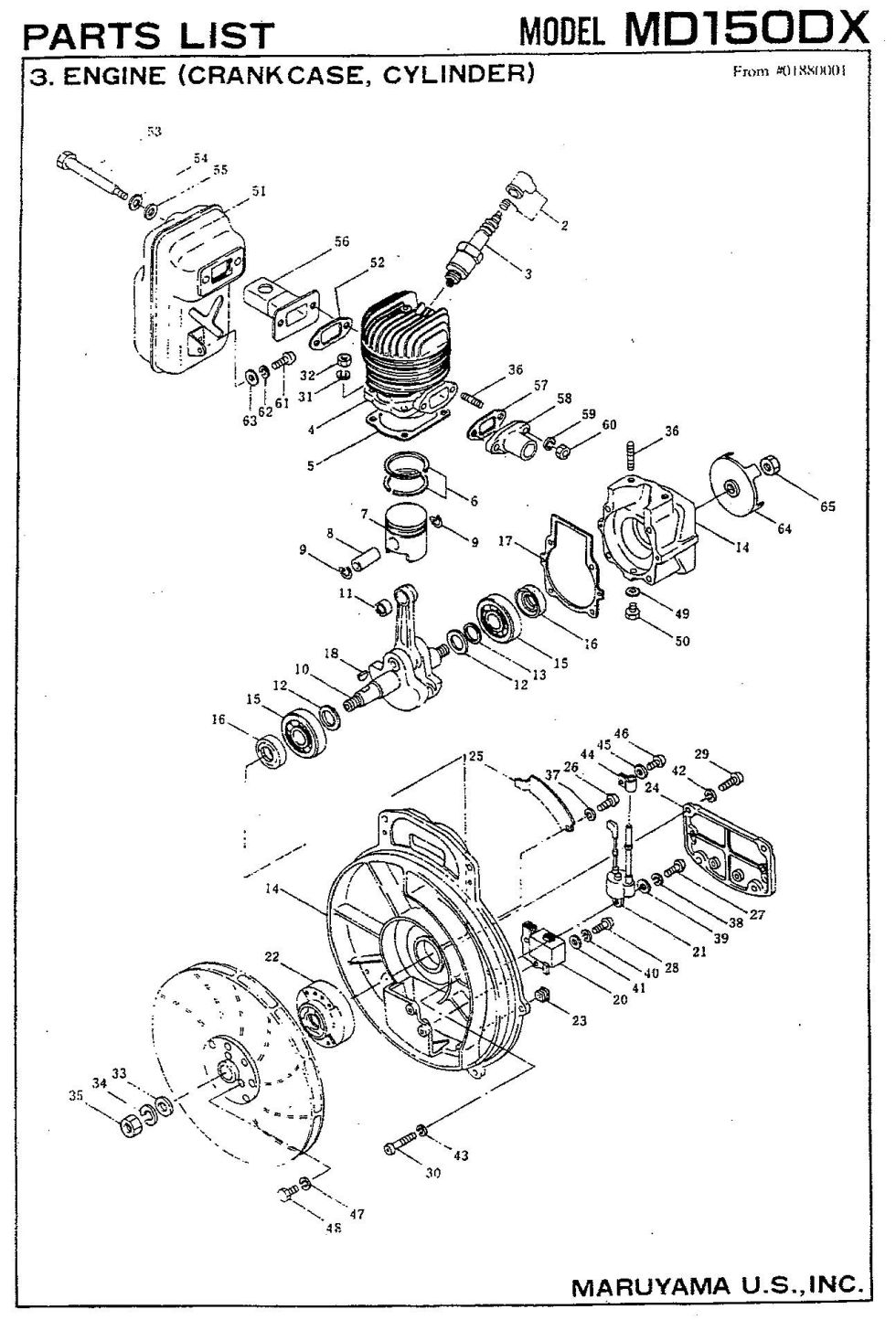

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MD150DX. You have selected the Engine (Crankcase, Cylinder) diagram for the Maruyama MD150DX Mister Duster. Below you will find an interactive part diagram for the MD150DX Engine (Crankcase, Cylinder). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MD150DX parts not shown in this diagram you may select from one of the other MD150DX part assemblies or select a different Mister Duster altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Mister Duster parts.

Position number SKU Product title Price
2 972511 972511 - SPARK PLUG CAP ASSY
$8.99
3 972476 972476 - SPARK PLUG
$14.99
4 576243 576243 - NLA CYLINDER
$178.99
5 979912 979912 - NLA CYLINDER PACKING
$2.99
6 979915 979915 - NLA PISTON RING
$11.99
7 575249 575249 - NLA PISTON
$49.99
8 979914 979914 - PISTON PIN
$9.99
9 576244 576244 - SNAP RING
$2.99
10 992973 992973 - NLA CRANKSHAFT ASSY
$154.99
11 972215 972215 - NLA NEEDLE BEARING
$20.99
12 979917 979917 - CRANKSHAFT WASHER
$2.99
13 576248 576248 - SHIM (0.30)
$2.99
14 570853 570853 - NLA CRANKCASE ASSY
$195.99
15 570397 570397 - NLA BALL BEARING
$20.99
16 970145 970145 - NLA OIL SEAL
$17.99
17 576249 576249 - CRANKCASE GASKET
$5.99
18 970045 970045 - KEY
$6.99
20 570857 570857 - NLA MAGNETO
$180.99
21 576250 576250 - NLA IGNITION COIL AS
$123.99
22 570856 570856 - NLA MAGNETO ROTOR AS
$95.99
23 991573 991573 - GROMMET
$2.99
24 998107 998107 - NLA COVER (COIL)
$25.99
25 576252 576252 - NLA BLIND METAL
$5.99
26 910310 910310 - SCREW M5X10
$2.99
27 576253 576253 - SCREW
$2.99
28 911723 911723 - SCREW
$2.99
29 971917 971917 - SCREW
$2.99
30 947019 947019 - SCREW
$2.99
31 073207 073207 - Obsolete - USE PART #012502 No Longer Available
Obsolete.
32 947012 947012 - NUT
$2.99
33 970141 970141 - WASHER
$2.99
34 972801 972801 - NLA SPRING WASHER
$2.99
35 979274 979274 - USE: 972214 No Longer Available
Obsolete.
36 970053 970053 - NLA STUD BOLT
$2.99
39 911020 911020 - WASHER
$2.99
41 911834 911834 - WASHER
$2.99
44 979248 979248 - CLAMP
$2.99
49 576254 576254 - PACKING
$2.99
50 576255 576255 - BOLT
$2.99
51 576256 576256 - NLA MUFFLER ASSY
$28.99
52 979930 979930 - MUFFLER PACKING
$6.99
53 576261 576261 - NLA BOLT
$9.99
54 576260 576260 - MUFFLER GASKET
$2.99
55 972679 972679 - WASHER
$2.99
56 576259 576259 - NLA MUFFLER PIPE
$40.99
57 970075 970075 - NLA PACKING
$2.99
58 979921 979921 - NLA SUCTION VALVE
$9.99
60 970140 970140 - NUT
$2.99
61 947007 947007 - USE: 81453
$2.99
63 947005 947005 - NLA WASHER
$2.99
64 576257 576257 - NLA STARTER PULLEY
$8.99
65 972214 972214 - NUT
$2.99
