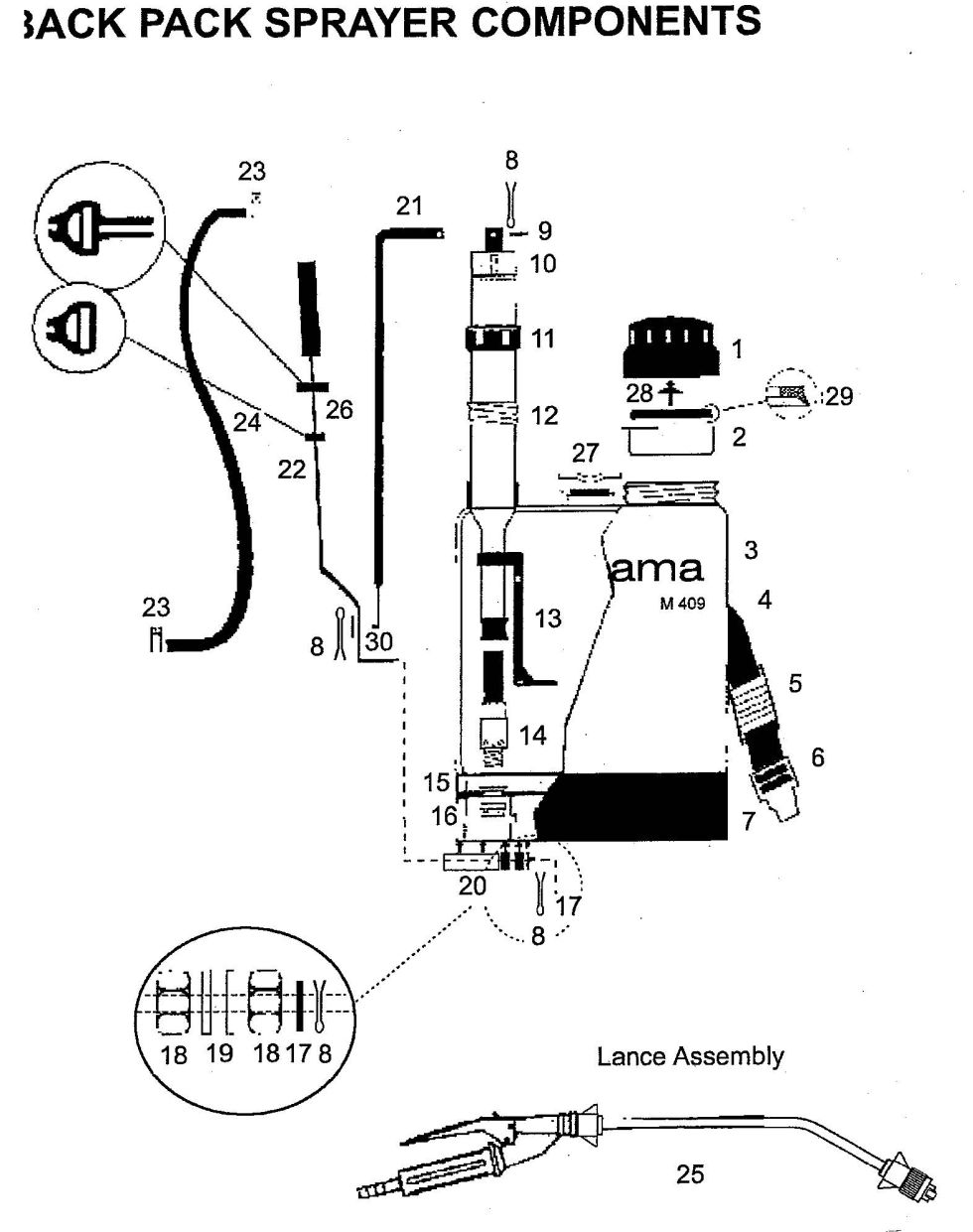

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M409. You have selected the Main Body diagram for the Maruyama M409 Manual Sprayers. Below you will find an interactive part diagram for the M409 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M409 parts not shown in this diagram you may select from one of the other M409 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
1 840727 840727 - NLA FILL CAP
$22.99
2 840579 840579 - NLA STRAINER
$17.99
3 840580 840580 - NLA TANK(16 LITER)
$49.99
4 840581 840581 - NLA STRAP
$26.99
5 840582 840582 - NLA STRAP PADDLE KIT
$14.99
6 840583 840583 - NLA BUCKETS KIT
$2.99
7 840584 840584 - NLA PLASTIC BASE
$21.99
8 840585 840585 - NLA CLAMP - SET OF 3
$2.99
9 840586 840586 - NLA JOINING BOLT TO
$5.99
10 840587 840587 - NLA PRESSURE CHAMBER
$45.99
11 840588 840588 - NLA CHAMBER GUIDE NU
$11.99
12 840589 840589 - NLA PRESSURE CHAMBER
$8.99
13 840590 840590 - NLA AGITATOR ASSY.
$25.99
14 840591 840591 - NLA BRASS CYLINDER(A
$51.99
15 840592 840592 - NLA BRASS CYLINDER G
$10.99
16 840593 840593 - NLA BRASS CYLINDER N
$12.99
17 840594 840594 - NLA LEVER GUIDE RING
$2.99
18 840595 840595 - NLA LEVER GUIDE BRAS
$6.99
19 840660 840660 - NLA LEVER GUIDE RING
$2.99
20 840596 840596 - NLA LEVER GUIDE PIPE
$2.99
21 840597 840597 - NLA LEVER ARM
$26.99
22 840598 840598 - NLA LEVER
$34.99
23 840599 840599 - NLA EMBRACE RING - S
$6.99
24 840619 840619 - NLA HOSE (NO SUPERSE
$11.99
25 840620 840620 - NLA TRIGGER VALVE LA
$49.99
26 840621 840621 - NLA LANCE AND LEVER
$9.99
27 840622 840622 - NLA STRAP FASTENERS
$5.99
28 840623 840623 - NLA BACKPACK CAP VAL
$2.99
29 840624 840624 - NLA BACKPACK CAP SEA
$11.99
30 840625 840625 - NLA LEVER ARM RING
$2.99
