Trigger Valve

Trigger Valve

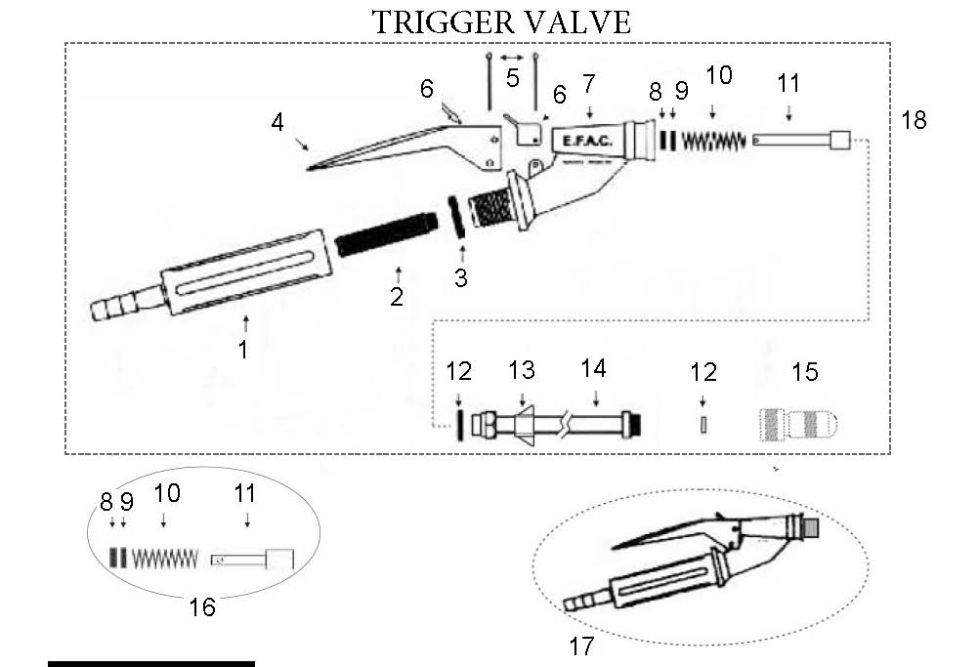

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M200. You have selected the Trigger Valve diagram for the Maruyama M200 Manual Sprayers. Below you will find an interactive part diagram for the M200 Trigger Valve. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M200 parts not shown in this diagram you may select from one of the other M200 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
1 840675 840675 - NLA LANCE HANDLE
$15.99
2 840676 840676 - NLA LANCE FILTER
$5.99
3 840662 840662 - NLA VITON O-RING
$5.99
4 840666 840666 - NLA TRIGGER LEVER
$2.99
5 840661 840661 - NLA CLAMPS
$2.99
6 840667 840667 - NLA FASTENER HOOK
$2.99
7 840668 840668 - NLA BODY VALVE
$19.99
8 840677 840677 - NLA LANCE HANDLE SEA
$6.99
9 840663 840663 - NLA BRASS CIRCLE STO
$2.99
10 840664 840664 - NLA PISTON TRIGGER L
$2.99
11 840665 840665 - NLA PISTON TRIGGER L
$6.99
12 840602 840602 - NLA ORING
$2.99
13 840670 840670 - NLA TIP NUT
$2.99
14 840971 840971 - NLA SPARE PIPE FOR L
$20.99
15 840692 840692 - NLA ADJUSTABLE BRASS
$27.99
16 840697 840697 - NLA PISTON LANCE ASS
$19.99
17 840698 840698 - NLA LANCE BODY ASSY.
$28.99
