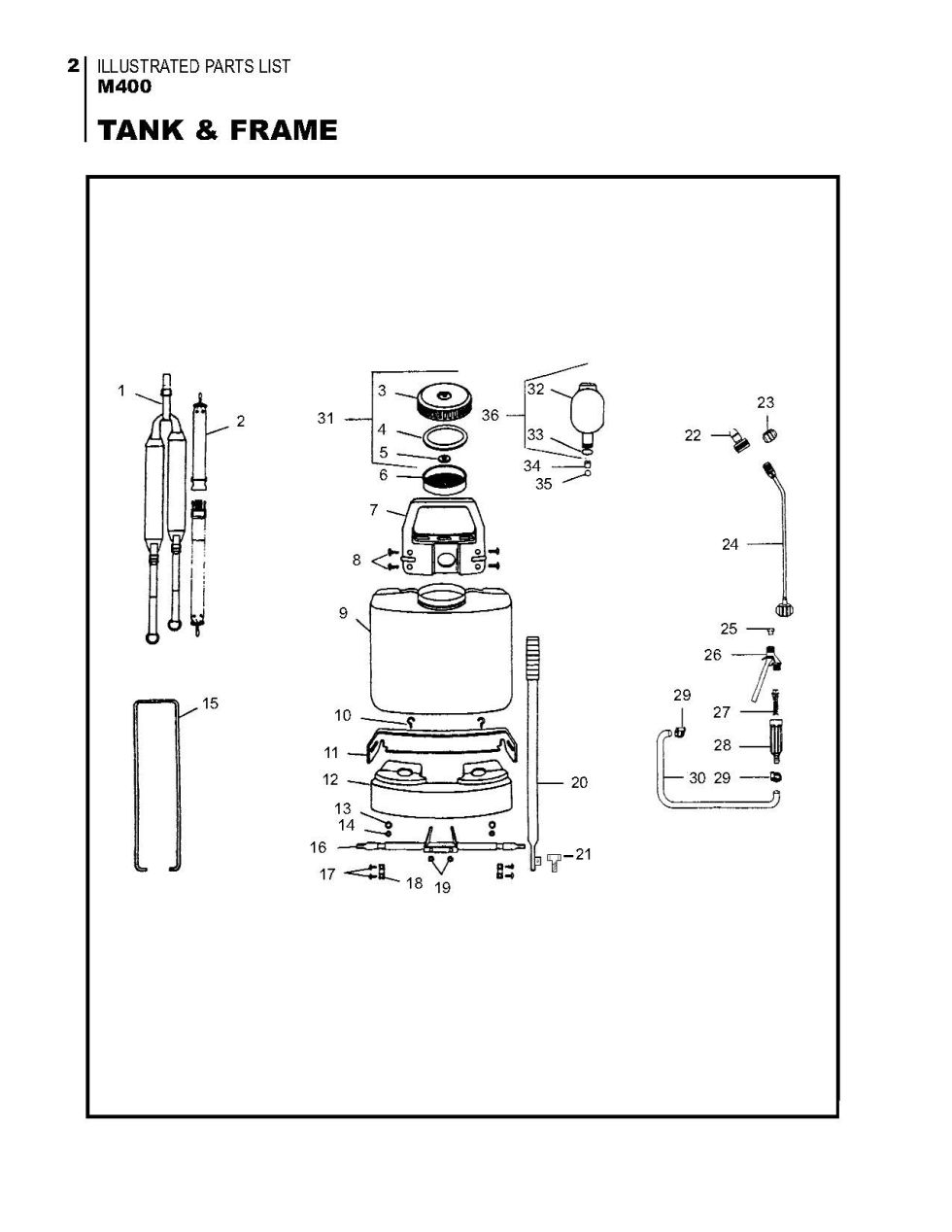

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M175, M300, M400. You have selected the Tank and Frame diagram for the Maruyama M175, M300, M400 Manual Sprayers. Below you will find an interactive part diagram for the M175, M300, M400 Tank and Frame. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M175, M300, M400 parts not shown in this diagram you may select from one of the other M175, M300, M400 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
1 840801 840801 - NLA STRAP ASSY PADDE
$81.99
2 840803 840803 - NLA WAIST BELT
$40.99
3 840804 840804 - NLA*** USE PART #840851 No Longer Available
Obsolete.
4 840824 840824 - NLA COVER GASKET
$18.99
5 840805 840805 - NLA CHECK VALVE
$2.99
6 840806 840806 - NLA STRAINER BASKET
$21.99
7 840807 840807 - NLA CARRY HANDLE
$26.99
8 840808 840808 - SCREW FOR HANDLE
$2.99
9 840809 840809 - TANK (4-GALLON)
$126.99
10 840810 840810 - NLA HOOK BOLT
$2.99
11 840811 840811 - NLA LUMBAR SUPPORT
$27.99
12 840812 840812 - BASE
$81.99
13 840815 840815 - WASHER
$2.99
14 840816 840816 - NLA LOCK NUT
$2.99
15 840802 840802 - NLA CONNECTOR ROD
$27.99
16 840817 840817 - NLA DRIVE ROD ASSY
$46.99
17 840813 840813 - SCREW
$2.99
18 840814 840814 - RETAINER BRACKET
$2.99
19 840818 840818 - PUSH NUT
$2.99
20 840823 840823 - NLA PUMP HANDLE ASSY
$45.99
21 840826 840826 - NLA HITCH PIN FOR HA
$2.99
22 840850 840850 - DISC-NOZZLE ASSY
$28.99
23 840849 840849 - NLA FAN SPRAY NOZZLE
$31.99
24a 840839 840839 - DISC-CURVED EXTENSIO
$30.99
24b 840840 840840 - NLA Curved Extension
$25.99
25 840841 840841 - NLA VALVE SEAL
$5.99
27 840843 840843 - NLA FILTER
$15.99
28 840844 840844 - NLA HANDLE (NO SUPER
$16.99
29 840837 840837 - NLA HOSE CLAMP
$13.99
30 840838 840838 - NLA Hose 56""
$53.99
31 840851 840851 - NLA CAP ASSY
$22.99
32 840819 840819 - RESERVOIR
$41.99
33 840820 840820 - NLA O-RING FOR RESER
$11.99
34 840821 840821 - NLA CHECK CAP (MANIF
$2.99
35 840822 840822 - NLA CHECK BALL
$14.99
36 840852 840852 - NLA RESERVOIR ASSY
$51.99
