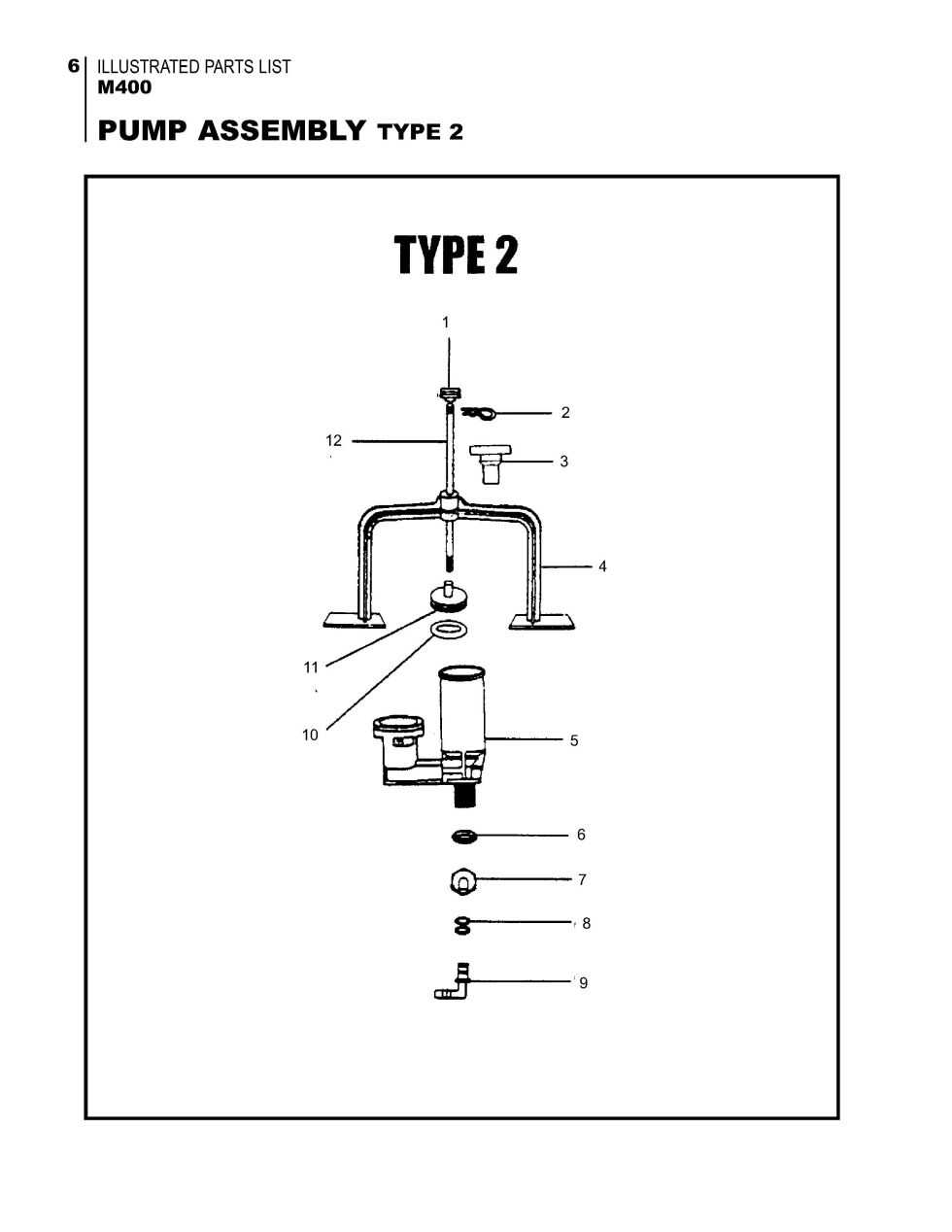

Pump Assembly - Type 2

Pump Assembly - Type 2

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M175, M300, M400. You have selected the Pump Assembly - Type 2 diagram for the Maruyama M175, M300, M400 Manual Sprayers. Below you will find an interactive part diagram for the M175, M300, M400 Pump Assembly - Type 2. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M175, M300, M400 parts not shown in this diagram you may select from one of the other M175, M300, M400 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
1 840825 840825 - NLA PIVOT
$11.99
2 840826 840826 - NLA HITCH PIN FOR HA
$2.99
3 840909 840909 - NLA ROD SEAL GROMMET
$18.99
4 840828 840828 - AGITATOR
$27.99
5 840905 840905 - NLA PUMP COMPLETE
$81.99
6 840906 840906 - NLA PUMP GASKET
$17.99
7 840907 840907 - NLA NUT
$16.99
9 840908 840908 - NLA PUMP FITTING
$16.99
10 840830 840830 - NLA O-RING FOR PISTO
$20.99
11 840829 840829 - NLA PISTON
$18.99
12 840904 840904 - NLA PLUNGER ASSY
$43.99
