Main Body

Main Body

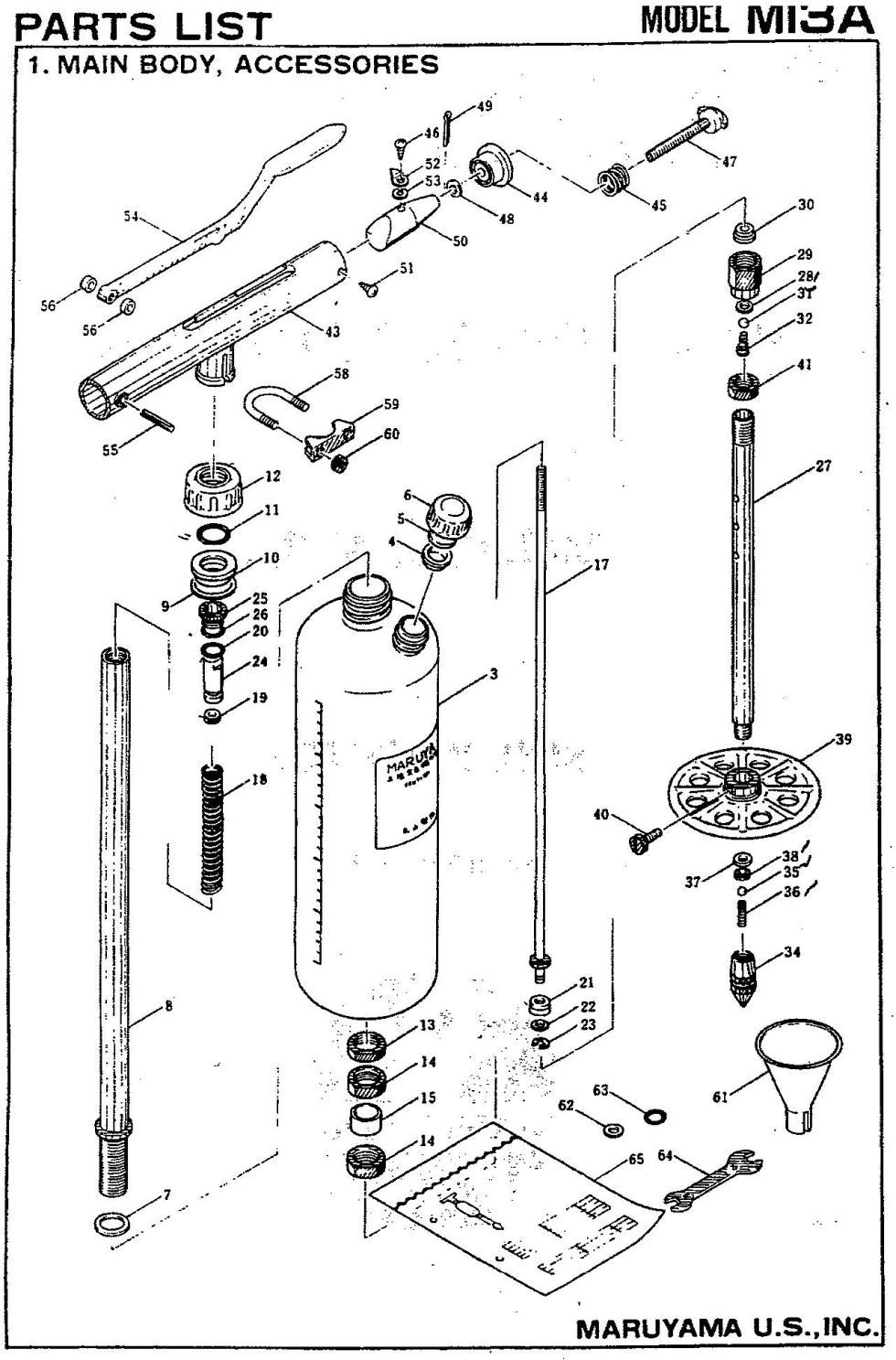

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M13A. You have selected the Main Body diagram for the Maruyama M13A Manual Sprayers. Below you will find an interactive part diagram for the M13A Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M13A parts not shown in this diagram you may select from one of the other M13A part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
3 021803 021803 - TANK
$41.99
4 014340 014340 - INNER LID
$2.99
6 014339 014339 - WATER INLET CAP
$2.99
7 013579 013579 - PACKING
$2.99
8 021805 021805 - CYLINDER
$94.99
9 014799 014799 - PACKING
$9.99
10 021811 021811 - BUSH
$6.99
11 015855 015855 - O-RING
$6.99
12 021810 021810 - TANK CAP
$5.99
14 143409 143409 - NUT
$8.99
15 143411 143411 - COVER
$2.99
17 022812 022812 - PISTON
$33.99
18 014324 014324 - RETURN SPRING
$14.99
19 081170 081170 - NUT
$2.99
20 014186 014186 - O-RING
$2.99
21 017317 017317 - PISTON PACKING
$14.99
22 060405 060405 - WASHER
$2.99
24 021818 021818 - PISTON GUIDE
$10.99
25 021819 021819 - CYLINDER TOP FITTING
$10.99
26 011345 011345 - ORING P12
$2.99
27 142002 142002 - NOZZLE PIPE
$74.99
28 142000 142000 - PACKING
$2.99
29 142001 142001 - CYLINDER JOINT
$21.99
30 021820 021820 - CYLINDER TOP PACKING
$5.99
31 011495 011495 - VALVE BALL
$2.99
32 014345 014345 - VALVE BALL
$2.99
34 017322 017322 - NOZZLE POINT
$51.99
36 017321 017321 - Maruyama - NOZZLE PO
$2.99
37 060294 060294 - O-RING
$2.99
38 017320 017320 - MARUYAMA - VALVE SEA
$13.99
39 021825 021825 - ADJUST PLATE
$34.99
40 089759 089759 - BOLT
$2.99
41 143410 143410 - NUT
$8.99
43 074290 074290 - HANDLE
$76.99
44 074288 074288 - HANDLE LID
$7.99
45 074289 074289 - INJECTION ADJUST SPR
$5.99
47 021831 021831 - INJECTION ADJUST SCR
$20.99
48 022981 022981 - WASHER
$2.99
49 101721 101721 - NLA COTTER PIN
$2.99
50 143414 143414 - COTTER
$17.99
52 074270 074270 - INDICATOR
$2.99
53 015839 015839 - SPRING WASHER
$2.99
54 021835 021835 - Obsolete - USE PART #021828 No Longer Available
Obsolete.
55 143408 143408 - SPRING PIN
$2.99
56 021847 021847 - BUSHING
$2.99
58 021838 021838 - BAND
$8.99
59 021839 021839 - BAND SEAT
$2.99
61 021841 021841 - FUNNEL
$2.99
64 020648 020648 - DOUBLE ENDED SPANNER
$5.99
