Engine (Carburetor, Recoil Starter)

Engine (Carburetor, Recoil Starter)

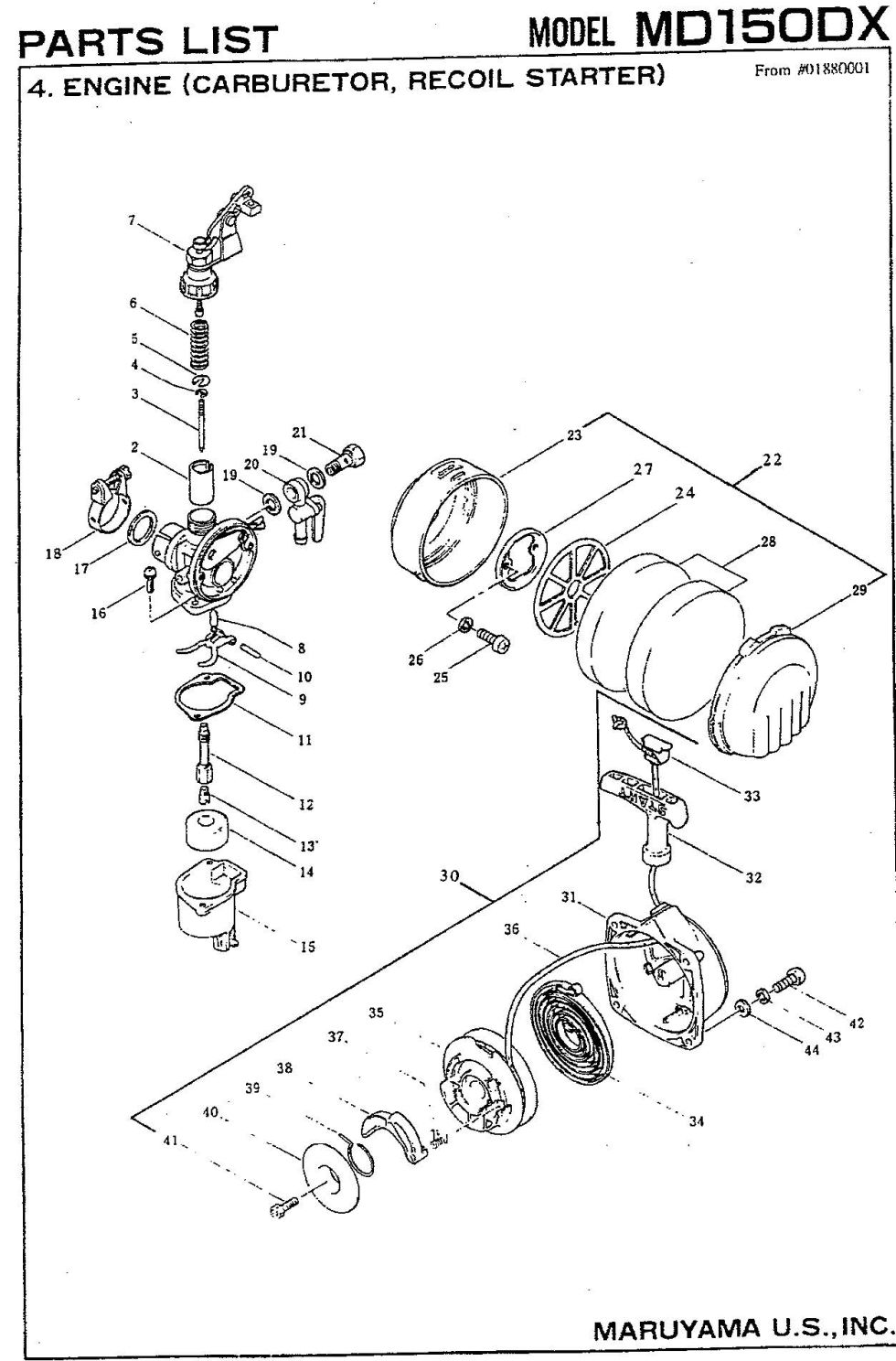

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MD150DX. You have selected the Engine (Carburetor, Recoil Starter) diagram for the Maruyama MD150DX Mister Duster. Below you will find an interactive part diagram for the MD150DX Engine (Carburetor, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MD150DX parts not shown in this diagram you may select from one of the other MD150DX part assemblies or select a different Mister Duster altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Mister Duster parts.

Position number SKU Product title Price
2 576266 576266 - NLA THROTTLE VALVE
$36.99
3 576265 576265 - JET NEEDLE
$27.99
4 971875 971875 - JET NEEDLE CLIP
$2.99
5 576264 576264 - NLA THROTTLE SPRING
$2.99
6 979966 979966 - NLA THROTTLE VALVE S
$7.99
7 996193 996193 - LINK MOTION ASSY
$45.99
8 979970 979970 - USE: 575251
$23.99
9 979974 979974 - FLOAT HINGE
$23.99
10 979972 979972 - HINGE PIN
$5.99
11 575173 575173 - NLA CHAMBER PACKING
$11.99
12 576269 576269 - NLA NEEDLE JET
$32.99
13 576268 576268 - NLA MAIN JET
$24.99
14 576271 576271 - NLA FLOAT
$17.99
15 576270 576270 - NLA FLOAT CHAMBER
$33.99
16 975825 975825 - SCREW
$2.99
17 573882 573882 - NLA PACKING
$2.99
18 576267 576267 - BODY BAND ASSY
$20.99
19 979256 979256 - BANJO PACKING
$11.99
20 972342 972342 - FUEL VALVE ASSY
$23.99
21 576272 576272 - BANJO BOLT ASSY
$15.99
22 979922 979922 - AIR CLEANER ASSY
$28.99
23 576258 576258 - NLA CLEANER BODY
$11.99
24 979925 979925 - NLA CLEANER HOLDER B
$5.99
25 970132 970132 - SCREW M4X12
$2.99
27 574173 574173 - NLA CLEANER HOLDER
$6.99
28 979926 979926 - NLA CLEANER SPONGE
$22.99
29 979924 979924 - CLEANER CAP
$19.99
31 979935 979935 - RECOIL STARTER BODY
$38.99
32 979938 979938 - STARTER HANDLE
$7.99
33 975807 975807 - HANDLE CAP
$11.99
34 979936 979936 - NLA SPIRAL SPRING
$31.99
35 979934 979934 - STARTER PULLEY
$28.99
36 979937 979937 - ROPE
$13.99
37 979941 979941 - RETURN SPRING
$15.99
38 979939 979939 - PAWL
$8.99
39 979943 979943 - FRICTION SPRING
$15.99
40 979944 979944 - FRICTION PLATE
$13.99
41 979945 979945 - SET BOLT
$2.99
42 971917 971917 - SCREW
$2.99
