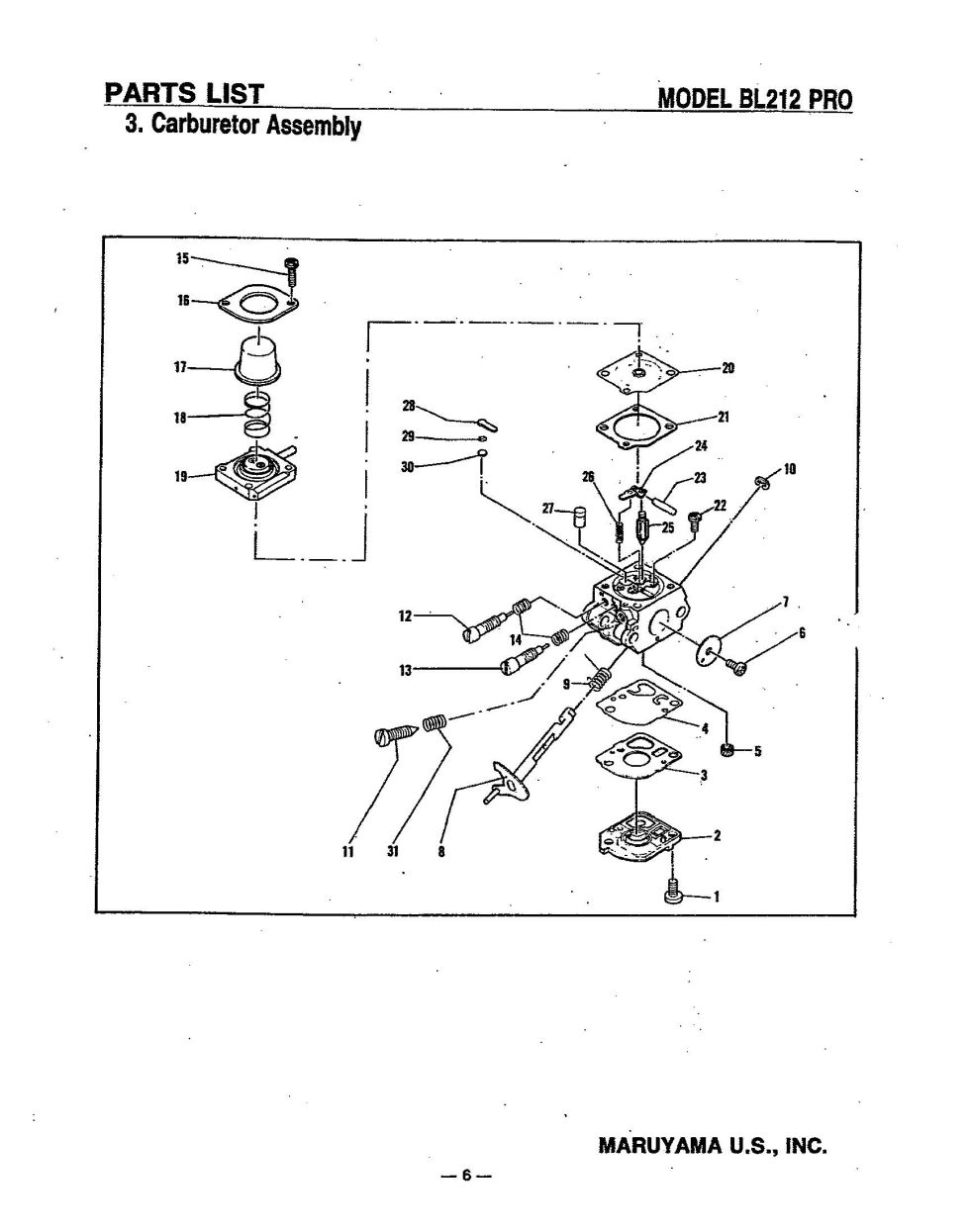

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL212. You have selected the Carburetor Assembly diagram for the Maruyama BL212 Blowers. Below you will find an interactive part diagram for the BL212 Carburetor Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL212 parts not shown in this diagram you may select from one of the other BL212 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1A | 840258 | 840258 - USE PART #840169 |
No Longer Available Obsolete. |
|
| 1 | 840259 | 840259 - SCREW-PUMP COVER |
$2.99
|
|
| 2 | 840260 | 840260 - CARB GASKET/DIAPHRAG |
$26.99
|
|
| 3 | 840261 | 840261 - NLA*** PUMP GASKET |
$2.99
|
|
| 4 | 840262 | 840262 - PUMP DIAPHRAGM |
$8.99
|
|
| 5 | 840263 | 840263 - STRAINER |
$2.99
|
|
| 6 | 840264 | 840264 - VALVE SCREW |
$2.99
|
|
| 7 | 840265 | 840265 - THROTTLE VALVE |
$2.99
|
|
| 8 | 840266 | 840266 - THROTTLE SHAFT ASSY |
$16.99
|
|
| 9 | 840267 | 840267 - RETURN SPRING |
$2.99
|
|
| 10 | 840268 | 840268 - NLA*** |
No Longer Available Obsolete. |
|
| 12 | 840270 | 840270 - SCREW-HIGH SPEED |
$9.99
|
|
| 13 | 840271 | 840271 - SCREW-LOW SPEED |
$8.99
|
|
| 14 | 840272 | 840272 - SPRING |
$2.99
|
|
| 15 | 840273 | 840273 - SCREW |
$2.99
|
|
| 16 | 840274 | 840274 - RETAINER |
$2.99
|
|
| 17 | 840275 | 840275 - NLA*** KIT-PRIMER BULB |
No Longer Available Obsolete. |
|
| 18 | 840276 | 840276 - SPRING |
$2.99
|
|
| 20 | 840278 | 840278 - NLA*** DIAPHRAGM |
$10.99
|
|
| 21 | 840279 | 840279 - NLA*** GASKET |
$2.99
|
|
| 22 | 840280 | 840280 - SCREW |
$2.99
|
|
| 23 | 840281 | 840281 - PIN |
$2.99
|
|
| 24 | 840282 | 840282 - LEVER |
$2.99
|
|
| 25 | 840283 | 840283 - LABEL |
$5.40
|
|
| 26 | 840284 | 840284 - SPRING |
$2.99
|
|
| 27 | 840285 | 840285 - NOZZLE ASSY |
$11.99
|
|
| 28 | 840286 | 840286 - PLUG-WELCH |
$2.99
|
|
| 29 | 840287 | 840287 - CHECK VALVE |
$2.99
|
|
| 30 | 840288 | 840288 - NLA*** |
No Longer Available Obsolete. |
|
| 31 | 840289 | 840289 - LABEL |
$4.50
|
